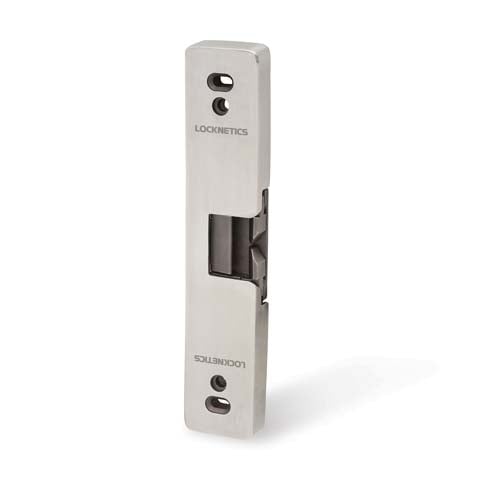

Locknetics RS300

Electric Rim Strike


You won’t strike out with this! The Locknetics RS300 is a surface mounted electric rim strike designed for versatility with a sleek cover case. With slotted mounting holes and multiple spacers, this strike fits just about every stile of door.

Your Current Selections:
Your Current Selections:
  • Surface mounted for easy installation- RS200 model with 1/2 in. rim strike available
  • Power supplies, keypads, and card readers available
  • Slotted mounting holes for increased adjustment flexibility
  • Multiple spacers included for easy installation
  • Sleek cover case design
  • Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change (non-fire rated models)
  • Field selectable 12/24 VDC
  • Fire-rated option available
  • Built-in voltage spike suppressor
  • Latch Bolt Monitor (LBM) option available, monitors the position of the latch bolt
  • Includes ESTK-100 E-strike metal template kit (CS, MDS, RS)


  • UL1034 Burglary-resistant electric locking mechanisms, listed
  • UL294 (indoor), listed
  • UL10C Fire Rated, 90 min. RS300-F models only
  • Static strength of 1500 lb. static load, UL certified
  • Dynamic strength of 70 ft.-lb. dynamic load, UL certified
  • 250,000 cycles endurance, UL certified

Choosing a strike for your door giving you a headache? Skip the hassle and choose the Locknetics RS300 Rim Strike. This surface mounted electric rim strike is designed for endurance and flexibility. With a sleek cover case design, slotted mounting holes and multiple spacers creating multiple thicknesses, this strike fits just about every stile of door. Accommodates rim exit devices with a 3/4 in. throw pullman latch bolt. Four attachment points to the frame provide for extra durability.


9 (H) x 1 3/4 (W) x 3/4 (D) in.






Oil Rubbed Bronze, Stainless Steel


12/24 VDC


UL 1034, UL 294


Latchbolt Monitor, Standard

Fire Rating

UL listed, 90 min., None
