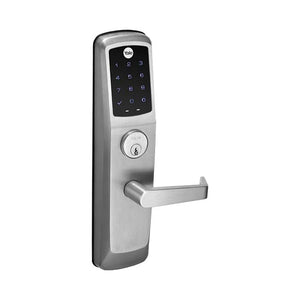

Yale nexTouch AU-NTT622-ZW3
Z-Wave Touchscreen Exit Trim
$798.25
The next level in convenient exit! The Yale nexTouch Z-Wave Exit Trim provides easy and secure keyless PIN code access for your exit doors. Equipped with a touchscreen keypad, lockout mode, audit trail and more. Future-proof modular technology allows for upgrades as needs and technology expands.
Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!
Need assistance or have questions? Call our Multi-Family Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!
Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!
- Touchscreen keypad model, pushbutton keypad option also available
- Integrates seamlessly with existing Z-Wave alarm and automation systems, including VeraEdge and VeraPlus controllers
- Exit trim only (exit device sold separately, see compatibility list below)
- Ideal for retrofit projects and new construction multi-family properties, small business office space, retail space, hotel, airport, restroom, or mixed-use commercial building
- Offers easy upgrade from mechanical exit trim to key-free access management
- Augusta lever and Satin Chrome finish standard – other finishes and lever designs available via special order
- Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked
- Standard mortise cylinder
- Key override unlocks the outside lever only
- Deadlocking rim bolt
- Manage up to 500 unique PIN codes in keypad only operation
- Voice guided programming in 3 languages (English, Spanish and French)
- Privacy mode
- Lockout mode
- Low Battery Indication
- 9V battery power backup
- Weather Resistant Seal

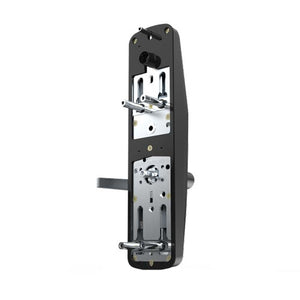

- Patented adjustable mounting posts make the nexTouch exit trim compatible with many exit device models
Compatible Exit Rim Device Models/Series
- Arrow 3880
- Corbin Russwin ED5200 and ED5200S
- Dorma 9300
- Falcon 24 and 25
- Sargent 8800
- Von Duprin 99 and 98
- Yale 7000, 6000, 2100, and 1800
Don’t waste time and money with lockouts, lost keys, and cumbersome key management. Skip the hassle and go keyless with the Yale nexTouch Keypad Exit Trim. This heavy-duty exit trim is equipped with a sleek modern touchscreen keypad for code entry and an ADA friendly lever. Quickly generate secure digital codes to send to staff, vendors, and guests and monitor doors with real-time notifications. The nexTouch Z-Wave series easily integrates into your existing or new Z-Wave network, providing streamlined and centralized property management without having to install extra software. The lock’s low-battery indicator alerts you when it’s time to change batteries, and the 9V battery backup on the exterior prevents a lockout should the lock lose power. In case of emergency, a manual key override unlocks the outside lever. Patented adjustable mounting posts provide compatibility with many exit device models. Ideal for new construction or retrofit projects in multi-family, small business, or mixed-use properties.
| Exterior Dimensions | 13 (H) x 3.125 (W) x 3.3125 (D) in. |
|---|---|
| Interior Dimensions | 10.5 (H) x 3.125 (W) x 2 (D) in. |
| Door Thickness Minimum | 1 3/4 in. |
| Door Thickness Maximum | 1 3/4 in., 2 1/4 in. |
| Door Handing | Left Reverse, Right Reverse |
| Door Opening | Standard |
| Door Prep | Standard 2 1/8 in. Cross-Bore |
| Users | 500 |
| Code Length | 4 to 8 Digits |
| Handle Type | Lever Handle Door Locks |
| Battery Type | 4 AA |
| Battery Life | 1 Year |
| Battery Back-up | 9V, Yes |
| Wireless Protocol | Z-Wave Plus |
| Wireless Range | 40 ft. (increase range with repeaters / mesh network) |
| Construction | Stainless Steel |
| Finish | Satin Chrome |
| Access Type | Key, Keypad – Digits |
| Locking Device | Panic/Exit, Exit – Rim |
| Lock Features | Audit Trail, Auto Relocking, Battery Backup, No Tour, Privacy, Temporary Codes, Timed Codes, Z-Wave Plus |
| Brand | nexTouch, Yale |
| Manufacturer | Assa Abloy |
| ANSI Rating | Grade 1 (Best) |
| BHMA Rating | Grade 1 (Best) |
| Operating Temperature | -40°F to +140°F (-40° to +60°C) |
| Environmental | Front body: Weather Resistant |
| Weight | 7 lbs |
| Warranty | 1 Year Limited Finish, 3 Year Limited Manufacturer |
| Authentication | Single Factor |
| Certifications | ADA |
