Networx NETPANEL

Wireless Prox/PIN 2-Door Controller

Reviews (1)

$580.99

In stock

Your Current Selections:
SKU: NETPANEL



  • Self-contained PC Managed Wireless Access Control Panel
  • Accomodates 5000 Users

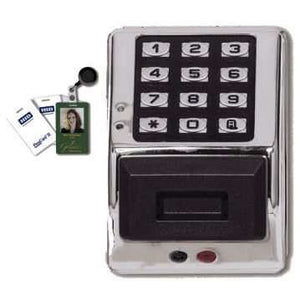

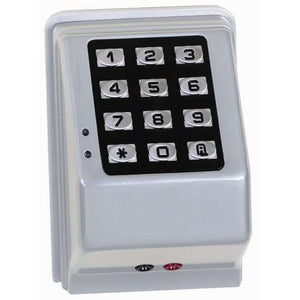

  • Choose from Networx Digital PIN-Only, and Prox Card/PIN Keypads – sold separately at checkout
  • Advanced Programming Features: Emergency Commands including Global Lockout and Global Passage, Ambush Code, Guard Tour Codes
  • 5 Pre-defined Administration User Levels including Master, Installer, Manager, Supervisor and Basic User
  • NETPANEL can be configured to allow a user to pass in both directions–or in only one direction–through a controlled door; for example, a door can be configured to allow everyone to exit, but only a select few to enter. Log entries indicate the specific keypad used
  • Coordinates EASILY with Wiegand 26-bit readers; No need to replace your existing card badges and reader hardware. Supports Wiegand device data, red LED, green LED, and sounder

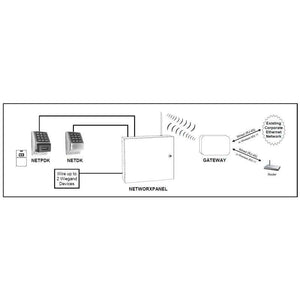

  • Wireless programming requires DL-Windows software (Download FREE at Alarmlock.com website) and Networx Gateway (sold separately)
  • Execute new network-wide capabilities including emergency priority global lockdown or unlock from any Networx keypad, or the network’s PC

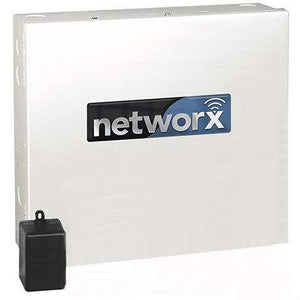

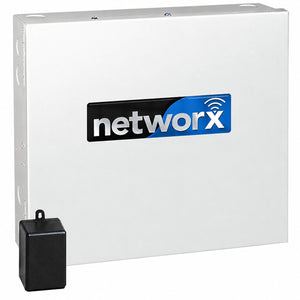

  • 12V power supply, with transformer and rechargeable 4hr. back-up battery provided. No supplementary power supplies needed for keypad/reader, or electric lock
  • On demand user, and user and group scheduling (500 timed schedule capacity), including automated lock/unlock, enable/disable users, enable/disable groups, and 4 “Quick Schedules”
  • Burglary Alarm Disarm Function: Allow you to set up a window of time where if any Group 1 User Code is entered within this window, the AUX Relay will be activated for 2 seconds. This relay can be used with a Burglary Alarm Control Panel that has a key switch disarm option to disarm the alarm
  • On demand audit trail reporting with time/date stamp (Prior 35,000 events)
  • Two Form-C Relays
  • Inputs for door position contact to indicate the status of the door, ajar, open or closed
  • Inputs for a remote release button or sensor; NEVER use the REMOTE RELEASE INPUT terminals for emergency exit wiring. Typically Fire Alarm System will interrupt power to maglocks ensuring exit doors are unlocked
  • T2, and T3 Trilogy customers who maintain user and door information can continue to use their existing DL-Windows database to seamlessly manage Networx
  • Bi-directional communication using highest level of commercially available encryption (128-bit AES PC)
  • Remote System Management:  Accomplished with VPN/remote capability

Installation

  • Locate the NETPANEL in an easily accessible location for servicing, within 200 feet of the keypads and/or prox readers.  Mount the NETPANEL in a location that provides air circulation around the unit, particularly directly above the housing. Do not install the NETPANEL in confined locations



GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy Networx dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year. With organizational theft on the rise, never has it been more important to pay close attention to your security measures.  In today's climate, it doesn't take any time at all for an outsider or one of your own to subvert your existing key system; master keys can be lost or stolen, employee keys get copied, and doors stay unsecured because of the hassle of keys.  Switching to managed access makes all the difference in thwarting a security breach, and bringing benefits to your bottom line.  The Networx NETPANEL 2-door access control system by Alarm Lock delivers this and more. And because it's wireless, updating doors, or performing a global lockdown becomes a snap.  With a few clicks, you can add or delete someone's PIN, card, or key fob from the system.  With a few clicks, you can enable free passage, or change a door's auto-unlock schedule.  You'll also be glad to know in the event of an emergency — not a capability with other wireless access control systems — you will be able to lockdown all doors on the system from the keypads.  Of course you can always do this from your office. In a panic situation you may not be at your desk however, and will need to quickly make every door on the system only accessible by personnel with administrative permissions.  The extent to which the Networx wireless access control system will improve your physical security is as good as anything offered today.  It's why you see leading hospitals, businesses, firms, retailers, and airports turning to Networx for handling their access control, risk management, and loss prevention challenges. How you go about setting up your Networx NETPANEL wireless access control system will be determined by what's at your doors now.  The NETPANEL itself typically mounts on the wall, in a utility closet, or behind a ceiling panel near the door(s).  You then wire from the NETPANEL to your keypad/reader, and electric lock, which will be an electric strike, or maglock.  Everything you need to power the system is self-contained within the NETPANEL, so you won't need to worry about bringing in another power source.  If your door already has an existing electric lock, and you want to add wireless control to the door with Networx, you can keep using your current locking hardware.  To complete the system, a Networx Gateway is required.  This gateway typically mounts on a wall or ceiling within range of your NETPANEL(S).  An antenna comes built into the NETPANEL for communicating wirelessly with the gateway.  The great thing about these gateways is you only need one for up to 63 NETPANELS.  Alarm Lock's NETPANEL is also compatible with the Wiegand interface.  This means if you have existing Wiegand 26-bit readers, which covers most of what you'll find installed today as far as existing card systems go, you can add wireless control to the door without needing to replace your readers or cards.  Since you already have everyone badged and credentialed under the Wiegand system, all you'll need to do now to add someone wirelessly to Networx is create their badge, and send the updates to the door.  By the time the employees gets to the door their badge will already be working.  The important thing to remember with Networx is because this is not an open architecture system, you can have it up and running in very little time, and at a small portion of the cost of other systems because you won't incur the expense and coding time required for integrating the manufacturer's wireless access control software into an existing platform.  Not to mention, with Networx, since the system information is stored in the NETPANEL, it really doesn't matter if a gateway were to go down, you would still have functionality at the keypad, you just wouldn't be able to send/receive wirelessly until you got a new gateway.  With other systems, should the comparable hardware to Networx's gateway become compromised, the only way anyone is getting through the door would be with a mechanical back-up key or to kick it down.
Dimensions

Housing: 10.5 (H) x 8.5 (W) x 3 (D) in.

Users

5,000

Event Audit Trail

35,000

Event Scheduling

500, Automated Unlock/Lock

Manufacturer

Alarm Lock

Brand

Trilogy, Trilogy Networx

Wireless Protocol

900MHz

Weight

8 lbs

Warranty

2 Year Manufacturer
