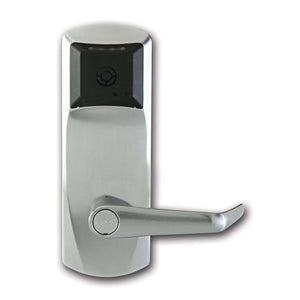

Ilco 79L RFID

Cylindrical Hotel Storeroom Lock for RezShield


Please contact us if you are a hotel or motel for special hospitality pricing!

Using no wires, the Ilco 79 Series lock features a battery powered RFID reader to open the door. Renters present their keycard, fob, or wristband for an upgraded key free living experience. Ilco 79 Series door locks require the RezShield system for programming and maintenance. RezShield™ is a best-in-class software solution for the multifamily housing industry, including senior living centers.

SKU: 79L Cylindrical
Your Current Selections:
Your Current Selections:

For more information or ordering assistance, please call our Multi-Family/Hospitality Project Specialists at 877-439-5377 ext 9001

  • All-metal, heavy duty electronic cylindrical lockset including clutch mechanism and built-in contactless RFID reader
  • Integration into Kaba RezShield™ Access Control System (sold separate)
    • Programming and Audit Trail Downloading Can be done using a 4K audit keycard or by using Kaba M-Unit (sold separate)
    • Lock programming and audit are not erased during battery replacement
  • Storeroom (79L) Lock Mode
    • Recommended for closets or common areas, always locked
    • Also available in 79T Toggle Mode
  • Infrared communications link for programming and auditing
  • Multiple key override options
  • Passage, and lockout modes
  • Drainage system designed to prevent internal build-up of condensation
  • Operates with three standard AA batteries in the front housing, providing a battery life of 120,000 door openings (two to three years)
  • Low battery indicator alerts staff that batteries need to be changed
  • Credentials accepted; RFID cards or tags (ISO 14443, MIFARE Classic (4 Byte NUID), MIFARE Plus and Ultralight C)
  • Credential expiry; one hour to seven years, depending on type and setup
  • Disability Feature; extended unlock time (4 seconds standard, 15 seconds for disability)

RezShield Software Features – Required, Not Included w/ Lock

  • User-friendly, intuitive solution protects client investment and simplifies integration with other building systems
  • Reduces material and labor costs associated with rekeying
  • Standard connectivity (Ethernet LAN -TCP/IP) makes it easy to network with existing compatible systems programming functions
  • Resident and employee credentials can be cancelled on an individual basis
  • Time-based access control system includes user-selectable keycard expiration
  • High security key encryption, proprietary and unique to each installation
  • Eight (8) authority levels to enable access controls
  • Extensive reporting capabilities with a complete system audit trail
  • Eleven (11) lock-access levels for greater key control

GoKeyless™ is a factory trained and authorized Kaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Simple Tap and Turn Operation with a Contactless System

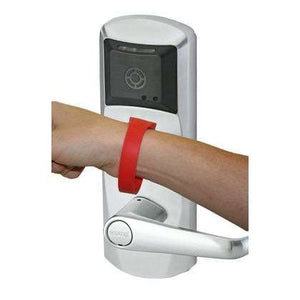

Using the latest in contactless RFID read-write technology, Ilco 79 Series locks enable residents to present either a keycard, FOB, or wristband credential in front of the reader in order to operate the lock. With a contactless system, there is virtually no contact between the lock and the credential, making it especially useful for residents with limited mobility and dexterity. In addition, 79 Series locks may be custom ordered to include operation with Kaba Mobile Access Solutions as Bluetooth Low Energy (BLE), allowing residents to use their smart device as a credential. And, since this system has a system-based protocol vs pairing, property management retains control for issuing keys.

Each 79 lock maintains an audit trail for greater accountability, including the ability to monitor staff movements throughout the property by auditing keycard use history. Staff keycards also carry information about the lock, such as low batteries. This data helps with preventative maintenance, allowing property managers to respond proactively. Electronics and batteries are located in the front lock housing, so staff can perform maintenance without disturbing residents or needing to enter apartments. And, its robust, tamper-resistant design features a sealed reader and conceals any previous deadbolt cutouts.

Exterior Dimensions

9 3/8 (H) x 3 5/16 (W) x 2 7/8 (D) in.

Inside Dimensions

9 (H) x 3 1/4 (W) x 2 1/4 (D) in.

Door Thickness Minimum

1 3/8 in.

Door Thickness Maximum

2 1/2 in.

Battery Type


Battery Life

120,000 Cycles

Event Audit Trail


Timed Entry Allowance


Time Zone Capability



Cast zinc alloy (outside housing levers and thumbturn), Stainless steel inside housing


Front body: Weather Resistant, Indoor/Outdoor

Operating Temperature

-31° to 151°F (-35° to 66°C)

Door Handing


Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Door Stile Width

Minimum 4 in.




dormakaba, Kaba Lodging

Lock Mode


Locking Device

Cylindrical Latch

Lever Design


Access Type

Key, Smart Card/Fob

Lock Features

Audit Trail, No Tour, Scheduling, Timed Codes

Door Opening


Handle Type

Lever Handle Door Locks

ANSI Rating

Grade 1 (Best)

BHMA Rating

Grade 1 (Best)


FL13061, ADA, CAN/ULC-S104, Florida Building Code, UL 10B, UL 10C


6 lbs


2 Year Manufacturer


Single Factor

Radio Frequency

13.56 MHz

Operating Humidity Maximum

0% to 85% non-condensing humidity at 86°F (30°C)

Reader Type

Prox Card/Fob
