Double-Gang Touch-Free Actuator
$177.10 – $275.50

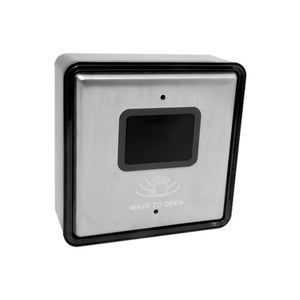

Germ-free access. The RCI 912-WBT Double-Gang Touch-Free Actuator provides hygienic, touch free activation to doors that see heavy foot traffic. Easily detects moving objects such as a hand, wheelchair or cart. Suitable for use in hospitals, pharmacies and similar applications.
- Double-Gang Touch-Free Actuator – Narrow stile and Glass models available
- Infrared Motion Detection Technology
- Touch Free Activation with hand or reflective object provides clean and hygienic activation (less than 130 ms)
- Silent activation for hospitals and other noise-sensitive environments
- 2.4Ghz transmitter and receiver (line of site +30 meters/100 ft.)
- Detection distance is adjustable from 3 – 30 cm (1 – 12 in.)
- SPDT relay output can be used for signaling/switching automatic doors and access control (3A @ 30VDC)
- Low power consumption providing long battery life*
- Selectable activation output between 1.5 seconds or “latching”, meaning activation “on”, activation “off”
- Receiver voltage input 12~30 VDC

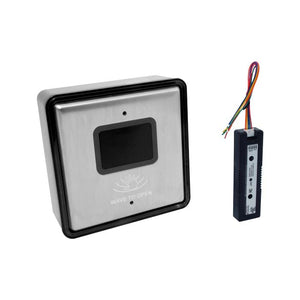

- 912-R receiver is required for operation (choose “with receiver” option)
- Receiver Dimensions: 4.8 (H) x 1.96 (W) x 1.25 (D) in.
*Batteries not included
The RCI 912-WBT Double-Gang Touch-Free Actuator provides hygienic, touch free activation to doors that see heavy foot traffic. Featuring infrared motion detection technology and an adjustable detection zone to reduce unwanted activations. This technology easily detects moving objects such as a hand, wheelchair or cart. Suitable for use in hospitals, pharmacies, food service facilities and similar applications with heavy traffic areas and remotely controlled doors. Touchless devices greatly reduce the transmission of germs since no contact is required for access. Activation is silent so others won’t be disturbed, ideal for hospitals and other noise-sensitive environments.
5 (H) x 5 (W) x 1.75 (D) in.
-43°F to 113°F (-41.67°C to 45°C)
|Operating Humidity Maximum|
10% to 90%
1 Year Limited Manufacturer
