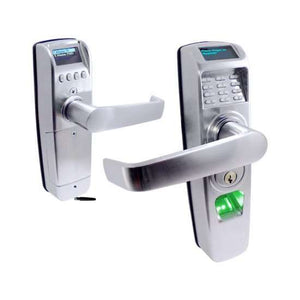

STRATTEC Advanced Logic RTS-Z

PIN and Biometric Lock with Z-Wave

Reviews (1) | Customer Questions (10)


FREE Software with purchase of any STRATTEC Advanced Logic Lock ($400 Value!)

The STRATTEC RTS-Z provides an ideal solution for security-sensitive business and government environments. Z-wave allows remote access and retrieve audit logs. Easily set access control rights for each individual user and lock with fingerprint, PIN code, or a combination of both! Large user capacity and a built-in scheduling system round out this lock.

In stock

Your Current Selections:

For more information or ordering assistance, please call our Commercial Project Specialists at 877-439-5377 ext 9003

  • Fingerprint Model, Non-Fingerprint Model Available
  • Meets or exceeds Z-Wave Alliance requirements
  • Z-Wave Plus 5202 chipset with integrated Z-Wave controller – Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity
  • 260FT wireless open-air range, this is double what other Z-Wave devices offer
  • Mesh network extends range of other devices
  • Auto-locking
  • Up to 1000 users per lock
  • 3 Authority Levels:  Administrator, Manager & User
  • Multi-modal options with PIN Code, fingerprint and mechanical key
  • 4th generation advanced CMOS optical fingerprint sensor – RTS Optical Scanner (sold separately) required for fingerprint enrollment into MS1 software
  • Locks can be managed as a stand-alone unit or through your computer with optional MS1 software
  • First person in prevents doors from automatically unlocking at scheduled times even if personnel have yet to arrive
  • Capture, review, and transmit audit trail history
  • Easy to read and use inner and outer OLED screens
  • Weather resistant and rock solid construction
  • Secure PIN Code access
  • Transfer and view audit trails to any authorized PC using USB
  • Lock Meets Grade 1 Standards, Backset: 2-3/4 in – Grade 2
  • PIN or fingerprint only; User ID and Finger Print or PIN
  • Battery Operation:  Requires 4 AA (sold separate)
  • FCC, CE, UL, ANSI, ROHS Certifications
  • ISO/TS, 16949, ISO 9001, ISO 14001 compliant

MS1 Software Features (included)

  • MS1 User Management software for administration of the locks on your network
  • Capture, review, and transmit audit trail history
  • Scheduling: Create user specific lock schedules, and scheduled lock time. Does NOT support scheduled unlock (only used in atypical applications). Users with Administrator authority have access at all times
  • Holiday Mode: Set up to 12 dates which will override regular unlock periods, keeping lock secure

NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive


  • 2 Year Limited Manufacturer

Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity

RTS Optical Scanner (sold separately) required for fingerprint enrollment into MS1 software

The RTS-Z is perfect for security-sensitive business and government environments. Easily set access control rights for each individual user and lock, then upload that data in seconds via USB drive. You can register users as fingerprint only, PIN-code only, or a combination of both on any lock or group of locks you define. The combination of large user capacity, audit trails, built-in scheduling system and weather-proof design makes this system unequaled in value compared to other products currently available.

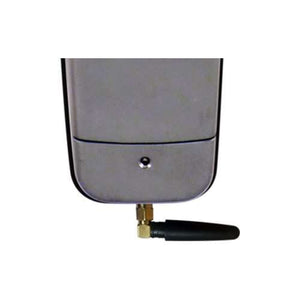

The Z-wave chip inside the RTS-Z allows the lock to communicate with your computer and MS1 software for convenient remote access features*, including retrieving audit logs and remote lock/unlock. RTS Z-wave locks and MS1 software saves you time and money by reducing the amount of times you need to physically visit the lock.

RTS Series locks deliver uncompromising commercial-grade quality. This lock is a true workhorse, tested to over 2 million duty cycles. The RTS has a 3-hour UL fire-rated latch and a free-wheeling clutch. The outdoor portion is weather resistant, making it ideal for exterior applications.

*NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive. Additional remote access features coming soon.

LAN or WAN Z-Wave Setup


The RTS lock series includes a removable rim cylinder in standard sizing. These locks can be adapted to use other keyways using a Small Format IC Housing Adapter.

Please Contact Us if you need more information or help ordering

STRATTEC Advanced Logic MS1 software is for use with RTS Series locks and is now included with every RTS lock. This software makes managing hundreds of users and locks simpler, and allows you to:

  • Manage users for one or more locks, including adding fingerprints*, PIN codes and all individual user permissions, allowed entry times and more
  • Query and analyze audit trails from any lock in your network
  • Backup and restore all of your lock databases
  • Edit global lock settings for each lock, including global access times
  • Allow each lock to have a different set of 1000 users and allows you to cut and past individual users or even groups of users to any lock in seconds
  • Control any number of RTS locks

*RTS-D2300 Optical Scanner (sold separately) required for fingerprint enrollment

View this downloadable PDF for the full list of MS1 software features


9 1/2 (H) x 3 (W) x 1 1/2 (D) in.

Battery Type


Battery Life

1,800 Openings

Code Length

2 to 10 Digits



Door Handing



2 3/4 in.

Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Door Stile Width

Minimum 4 in.

Door Thickness Minimum

1 1/2 in.

Door Thickness Maximum

2 in.


Indoor/Outdoor, Weather Resistant

Outside Operating Temperature Range

-40°F to 150°F


Satin Chrome


STRATTEC Advanced Logic


STRATTEC Advanced Logic

Handle Type

Lever Handle Door Locks

Lock Features

Audit Trail, Remote Control, Scheduling, Z-Wave Plus

Door Opening


Access Type

Key, Fingerprint, Keypad – Digits


Schlage SC4


Free-wheeling Clutch, Rugged Zamak 5 cast enclosure

Fire Rating

UL 3 hr. Latch

ANSI Rating

Grade 2 (Better)

Wireless Range

260 ft


8.8 lbs


2 Year Limited Manufacturer

Operating Humidity Maximum

5% to 95% RH non-condensing

Share your thoughts!

5 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. OCB (verified owner)

    Very well built locks, so far they work great. There is a learning curve when programming the locks, but the support staff is great.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Does this work outdoors? Is it waterproof? answer now
    Asked by Alejandro on April 6, 2022 4:12 PM

    The outside unit is IP-56 rated and is weatherproof for exterior doors. The interior battery unit is not recommended for outdoor use.

  2. A

    Yes, you are able to pull reports based upon time and entry of codes or fingerprints with the MS1 Z-wave Software.

  3. Q does this product use capacitive scanning or optical scanner answer now
    Asked by asjdbka on November 12, 2017 12:43 PM
    A The RTS locks are built with optical scanners in them to read the fingerprints.
  4. A
    You would need to add the fingerprints at a laptop or Desktop PC which has a Z-wave controller added to it in order to filter them to other locks. It cannot be done at one lock and filtered to others.
  5. A
    This device uses a Z-wave operating system and not Wifi. The difference is listed on Wikipedia on how they work and are different from each other. Since it is not Wifi you need additional items such as the MS1 Software with the Z-wave controller and the Z-wave connectors to make the system work.
  6. A

    Yes, you would want the MS1 software bundle. It would be installed on your PC and you would carry a USB programmer to the lock to update programming or pull audit trails.

  7. A

    No, it is only designed to be used as an emergency back up.

  8. A

    Yes, it does have the capability to be used with either one.

  9. A
    Unfortunately this lock is not capable of connecting to other z-wave hub systems at this time. You can use it within their own system if you purchase the z-wave USB stick and you have a PC that is on at all times.
  10. Q How many fingerprints can the database for the lock contain? answer now
    Asked by Patrick D Reardon on October 16, 2016 9:38 PM

    It has a maximum capacity of 1,000 users, finger print and/or PIN.
