  • Aiphone JF-DVF-HID

    Flush Mount Video Door Station with HID Reader


    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • All-in-one solution-Communication product & card reader
    • If a card is missing or malfunctioning, audio/ video communication can provide user verification
    • Standard Wiegand output to access panel
    • Convenience of installing combined components


    • For flush mounting, cut hole in wall and use supplied back box. Box dimensions are 4-½”W x 103/8”H x 1-¾”D.
    • For surface mounting, use the SBX-DVF-P surface mount box. This box can mount to a standard 1- gang box or to any flat surface.

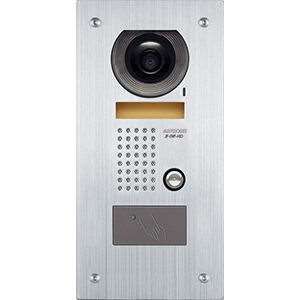

    Your employees are already using HID prox cards to enter the building, but you're growing, and have more visitors to your office each day.  You need to keep the door secured at all times, yet be able to buzz visitors in once you confirm their identity.  The Aiphone JF-DVF-HID is your solution, replacing your current prox reader.  The JF-DVF-HID is a vandal resistant, flush mount door station used with the JF hands-free, color video entry series (JFS-2AED boxed set, or JF-2MED, build your own). The unit has an embedded HID prox point plus card reader with a standard Wiegand output to an access control panel. The JF-DVF-HID comes complete with mounting box to ease installation, it's faceplate is stainless steel, the call button is metal and the camera is protected with a clear Lexan lens cover. The JF-DVF-HID features a color CCD camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.


    Manufacturer Aiphone
    Product Headline Flush Mount Video Door Station with HID Reader

    Door requirements
