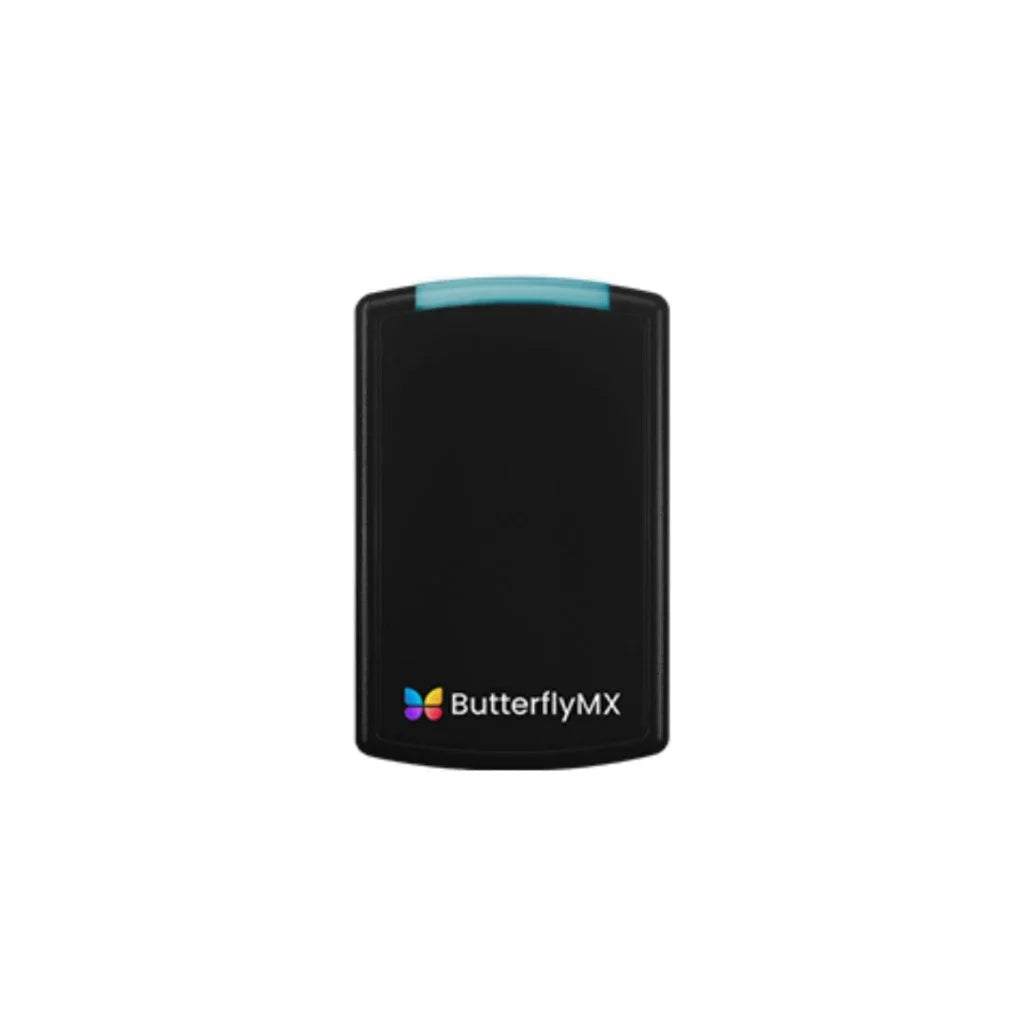

ButterflyMX Single Gang Reader

BUTTERFLYMX SINGLE GANG READER

ButterflyMX’s line of contactless access control readers offers a modern aesthetic and state-of-the-art features that simplify the building-wide access experience.

Open doors and gates with a variety of credentials, including smartphones, fobs, keycards, or PIN codes.

OPEN DOORS WITH A SMARTPHONE – All ButterflyMX access control readers work with the ButterflyMX mobile app, which means tenants

and staff can unlock doors & gates from their smartphones.

WORKS WITH OTHER BUTTERFLYMX PRODUCTS – Seamlessly connect your ButterflyMX access control readers with our other products — including our video intercoms, elevator

controls, and key lockers — to enjoy a unified property access solution.

• Features:
• Multiple access technologies – mobile app, key fob, keycard & PIN
• Indoor- and outdoor-rated
• Visual light confirmation and audible beep
• Provides end-to-end data encryption
• OSDP secure channel
• MIFARE EV1 and EV2 support
• Certifications: FCC, IC, CE, UL 294, UL 62368, EN (302291, 301489, 300330, 50130-4) IP55, BIS IS 13252
• RF technologies–56 MHz & mobile
• Color – Black
• Current- 120 mA average, 170 mA peak
• Voltage operating range – 5-16 VDC
• Temperature range – -31° F to 150°F (-35° C to 66°C) and 95% humidity
• Protection and Resistance – IP55 protection from dust and water exposure
• Dimensions – 5.1” H x 3.25” W x 0.71” D
• Visual / audio – LED light bar; audible buzzer
• Security level – EAL6+ cryptographic module
• Warranty – 2 years
