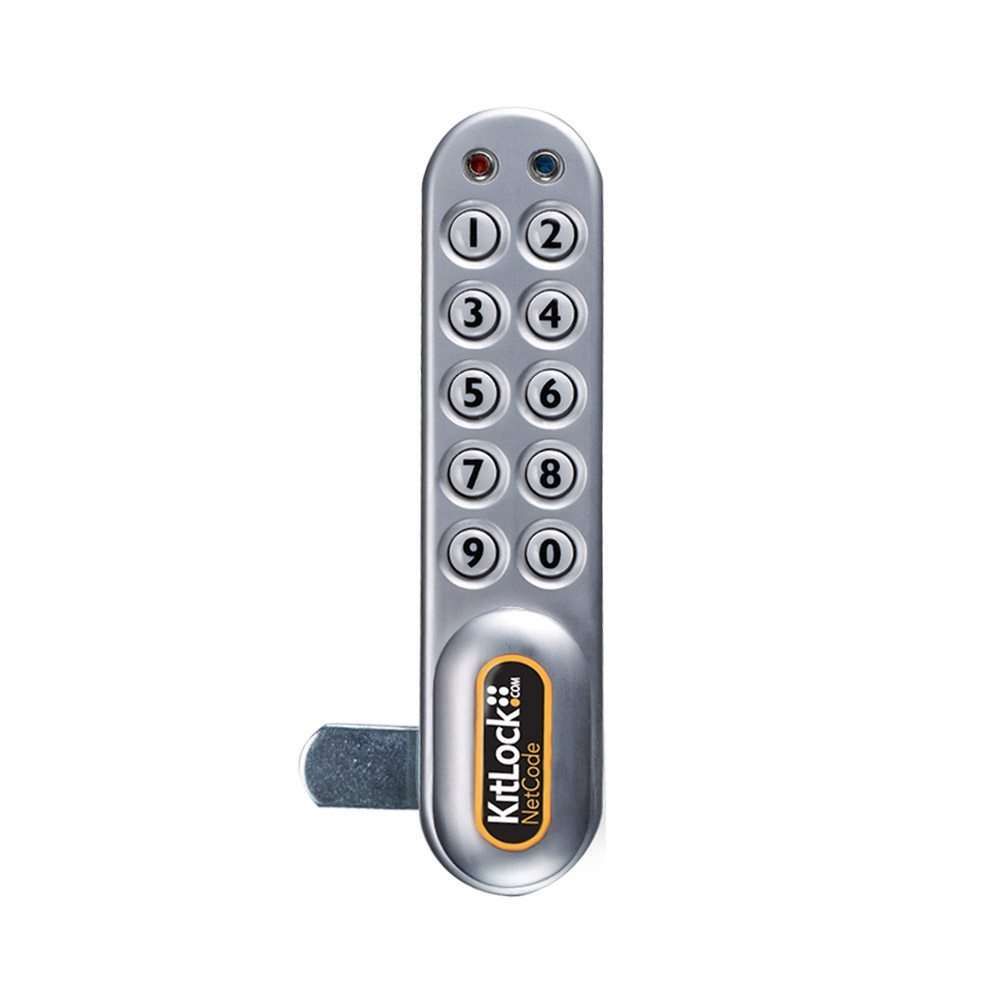

  • KitLock NetCode KL1000

    Electronic Cabinet Lock

    SKU: KL1060 NC-SG-C2


    Program time-sensitive codes.

    Quantity left : 0

    Call For Price
    • NetCode web-based code generation
    • Easy fit
    • 10 button keypad
    • 5 code levels available
    • 8 digit Master Code
    • 8 digit Sub-Master Code
    • 4 digit User Codes
    • 6 digit Technician Code
    • 12 digit NetCode
    • Functions: Private / Public / NetCode
    • 15,000 operations from 2 x AAA batteries
    • Low Battery: Red flashing LED flashing; lock will open 100 more times after this signal is initiated
    • Battery Failure Override:  KL1000 has been designed so a PP3 battery can be placed against the external contacts and using the master code to gain entry

    Technical Information

    Cam Fixing Point: 8mm (5/16”) square

    Door Thickness: KitLock 1000 is supplied ready to fit to doors up to 19mm (3/4”) thick. For doors 6.35mm (1/4”), 12.7mm (1/2”), 25mm (1”), or 28.5mm (1-1/8″) thick, you will need to install the spare spindle provided. Save time and let us do this for you with our Custom Shell Size service

    IP Rating: IP54 (when fitted with optional gasket)

    How It Works

    • Create an online account and register your lock on the NetCode Portal
    • The portal enables you to create NetCodes from any browser capable, internet enabled device
    • Create a NetCode that will work between a start and end date – ideal for long durations
    • Create a NetCode that will work from a particular date and time – ideal for short durations – up to one day
    • Send codes via SMS* or email
    • View history of each lock – displays all codes created for a lock inlcuding start date, duration, who received the code and additional notes
    • Customise your portal and notifications
    • Ideal for remote lockers/cabinets and rental applications

    * Additional charges apply – Buy SMS credits from Codelocks to enable sending of NetCodes via SMS straight to mobile phones. Usage Fees SMS Bundle (100) A pack of 100 SMS credits that enables you to send up to 100 NetCodes via SMS text message to any mobile phone – $15.00 Service Fees 1 to 10 Locks: Register and create NetCodes for up to 10 locks – FREE 11 to 50 Locks Register and create NetCodes for up to 50 locks – $80 p/a 51 to 250 Locks Register and create NetCodes for up to 250 locks – $320 p/a 251 to 500 Locks Register and create NetCodes for up to 500 locks – $560 p/a 500+ Locks For over 500 locks, please contact us to discuss enterprise pricing – POA Downloads

    GoKeyless™ is a factory trained and authorized Codelocks KitLock dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

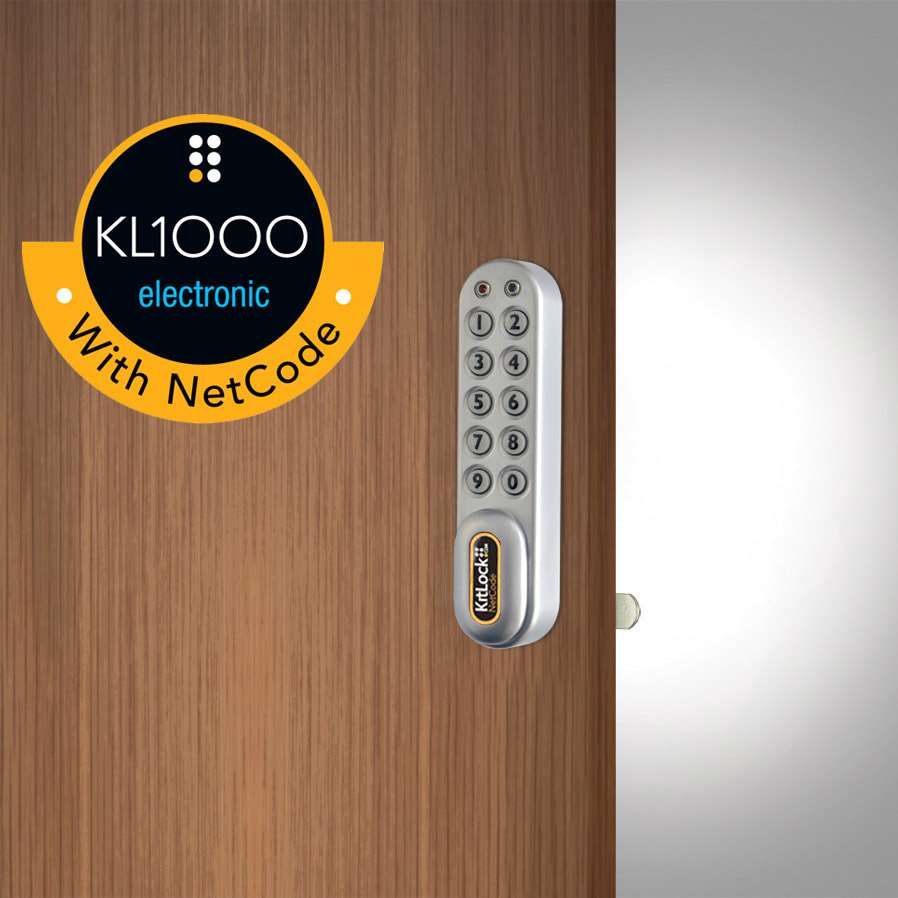

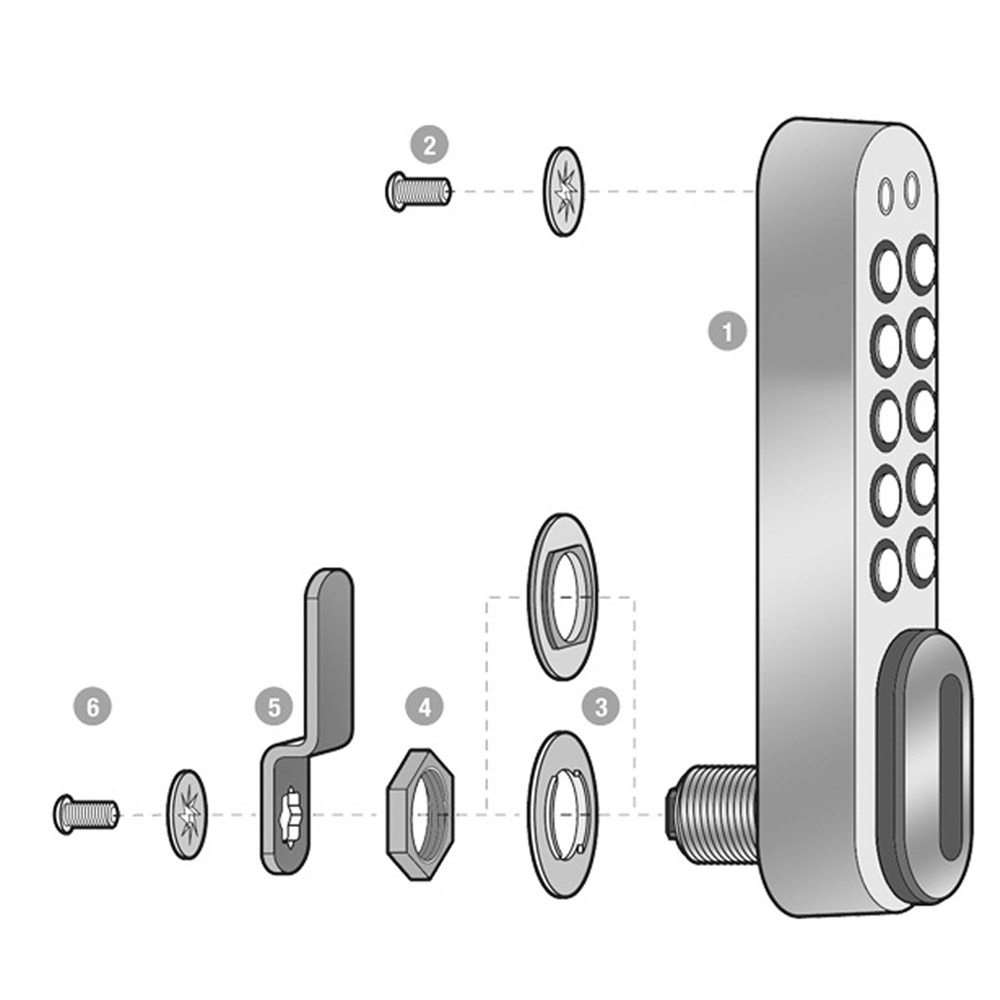

    The KitLock 1000 NetCode allows temporary access to lockers and cabinets via the web-based NetCode Portal. NetCode is activated prior to the lock owner shipping and installing at a remote site. The NetCode Portal allows you to register and set up your account, activate your locks and generate time-sensitive codes. Using time-sensitive codes is a more secure way to grant access as the code will not work outside a designated timeslot. Generated codes can be sent by email or SMS to any email account or mobile phone. The KL1000NC is a quick retrofit for keyed cam locks commonly supplied on a wide range of lockers, cabinets and cupboards. Easy to fit, taking just a few minutes to remove the existing cam lock, make an addtional top fixing and fit the KL1000NC. For a new install just make a hole for the spindle and top fixing. Immediate, simple, keypad access without the hassle of keys! Common uses include cabinets, lockers, medical carts, gun boxes, safes for offices, schools, warehouses, hospitals, care homes, nurseries, hotels, leisure facilities, and the home.


    Manufacturer Codelocks
    Battery Type AAA
    Finish Silver Grey
    Lock Features Old Remote Control, Temporary Codes, Timed Codes
    Solution Electronic
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Cam
    Brand KitLock

    Door requirements

    Battery Life 15,000 Cycles

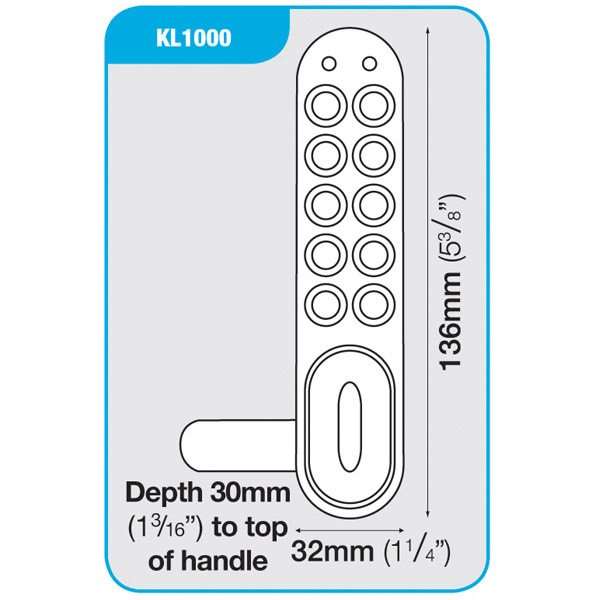

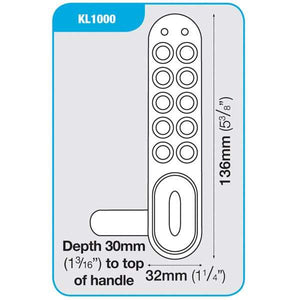

    Exterior Dimensions 5 3/8 in. (136mm) (L) x 1 1/4 in. (32mm) (W) 1 3/16 in. (30mm) (D) to top of handle
    Door Thickness Minimum 1/4 in.
    Door Thickness Maximum 1 1/8 in.
    Exterior Dimensions 5 3/8 in. (136mm) (L) x 1 1/4 in. (32mm) (W) 1 3/16 in. (30mm) (D) to top of handle
