  • CompX RegulatoR REG-M

    Electronic Push Button Cabinet Lock

    SKU: REG-M-L-3




    Manual-Locking
    Horizontal Mount

    Cylinder Length (In.)
    Door Handing
    Color

    ⚠️ Low stock — order soon

    Call For Price

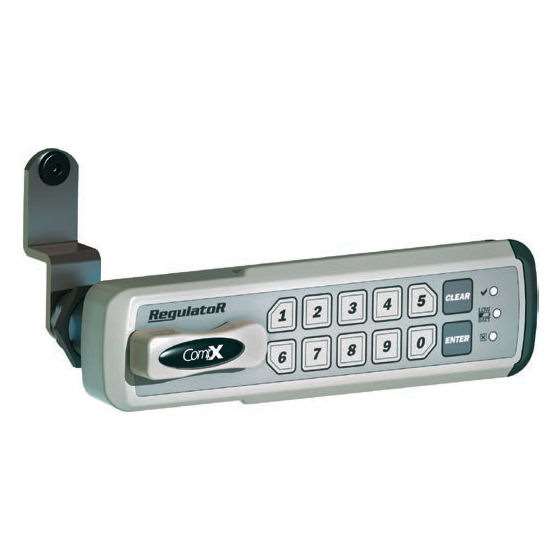

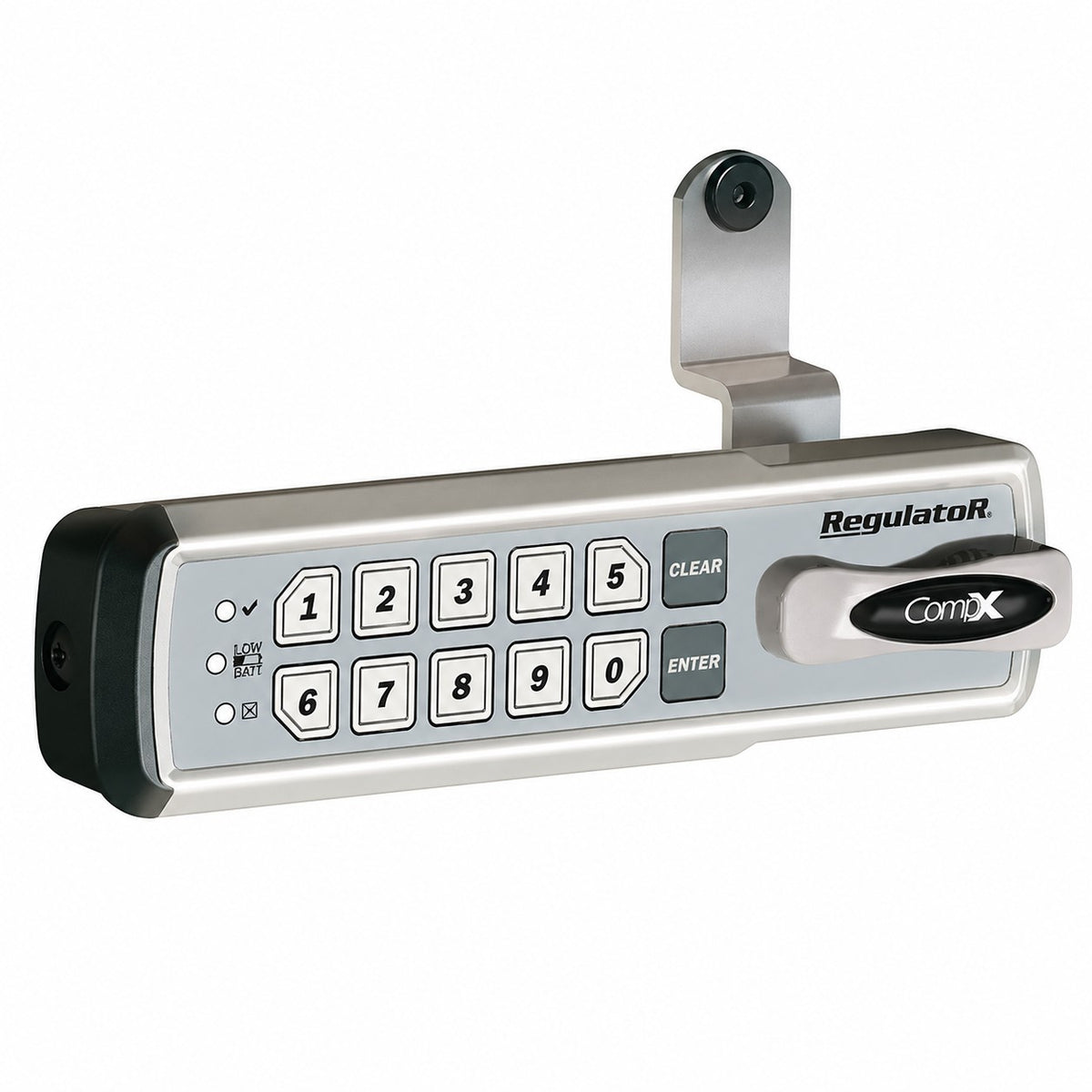

    CompX RegulatoR REG-M
    - +

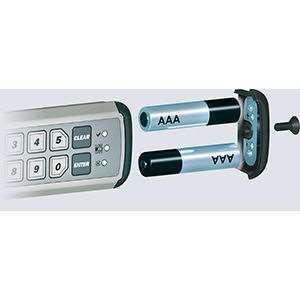

    • CONVENIENT external battery installation/removal — Tamper proof screw
    • Low battery indicator
    • Three cylinder lengths – 7/16″, 1-3/16″, 1-3/4″
    • Door/Material Thickness: 1/8” to 1-7/16″
    • Uses existing CompX National cams with FlexaCam
    • One straight & one offset cam provided
    • Single Use Mode — Allows for a revolving user code so multiple people may use the lock without having to reprogram the RegulatoR each time. (Standard mode may still be used; RegulatoR operates with fixed code)
    • Single Use Timeout On / Single Use Timeout Off (Programmable for 4-12 hours)
    • Easy to clean membrane keypad
    • 1 user code and 1 supervisor code
    • Battery Powered:  2 AAA included
    • Uses 3/4″ mounting hole

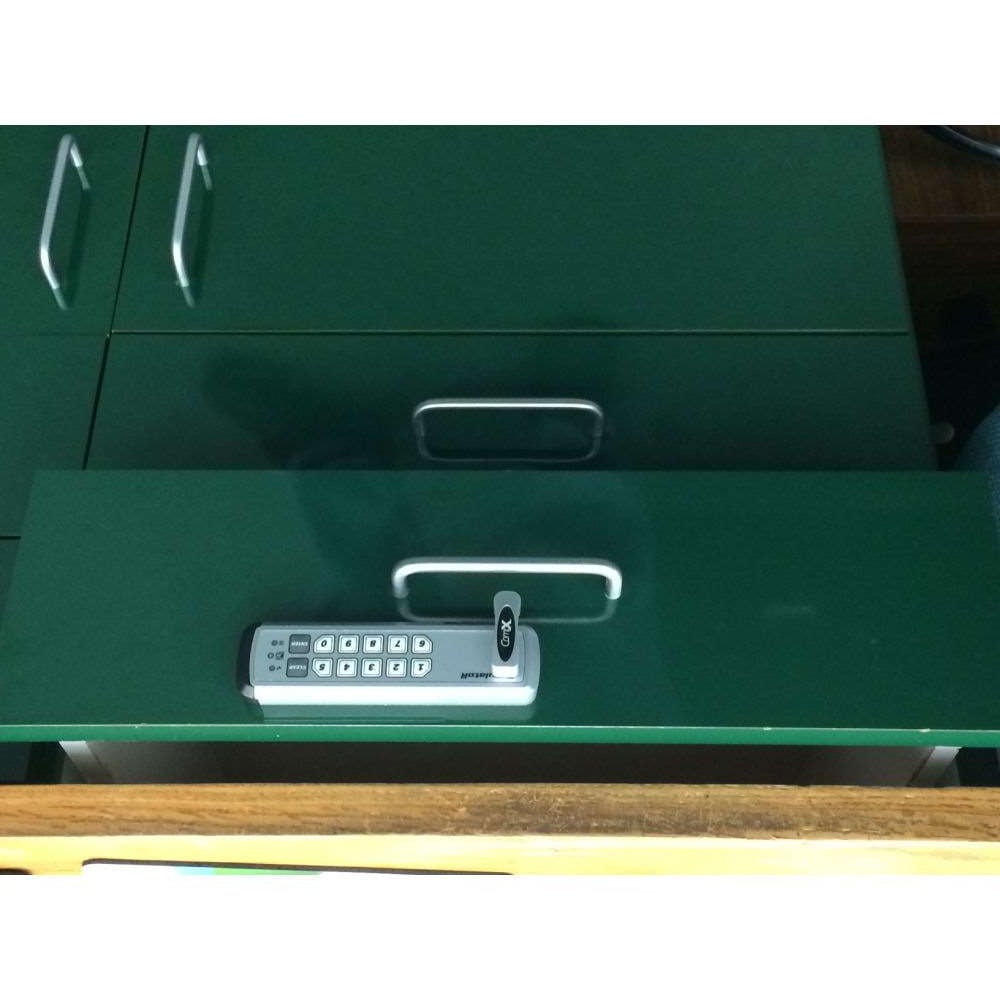

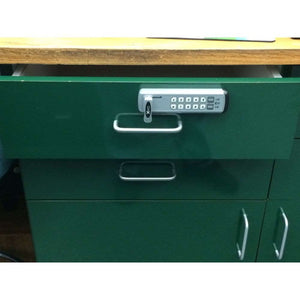

    • Horizontal Mount:  Installs on wood or metal cabinet doors and drawers

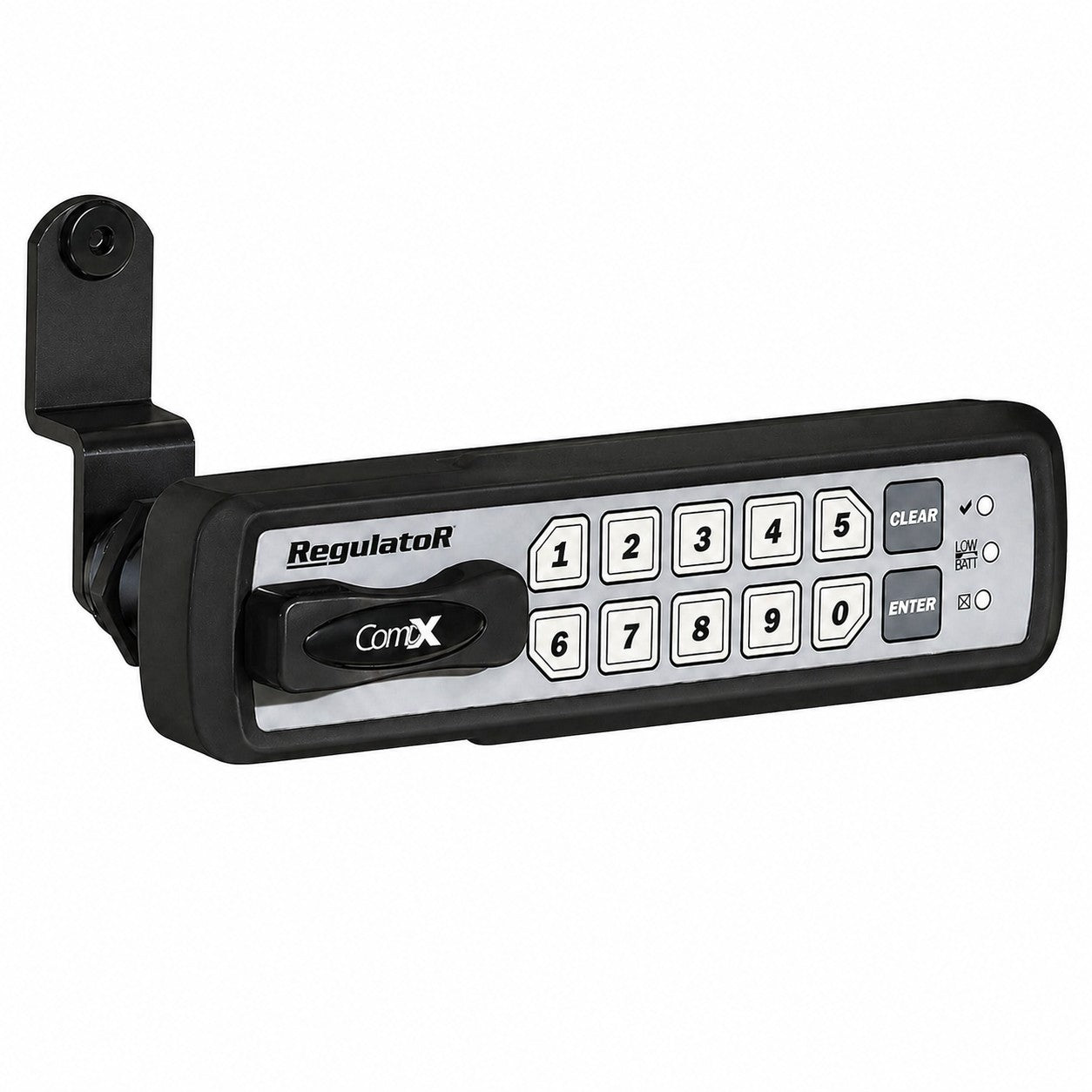

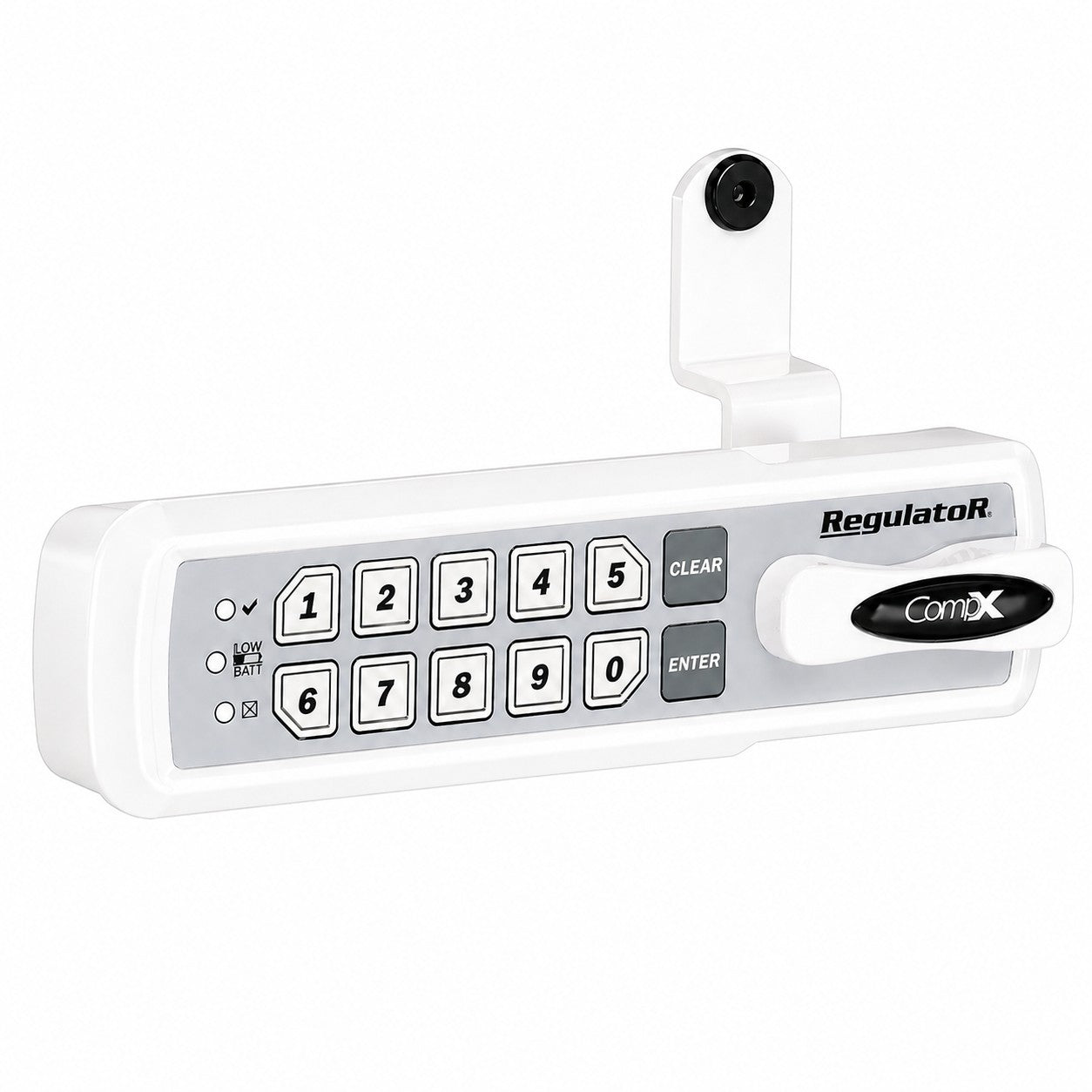

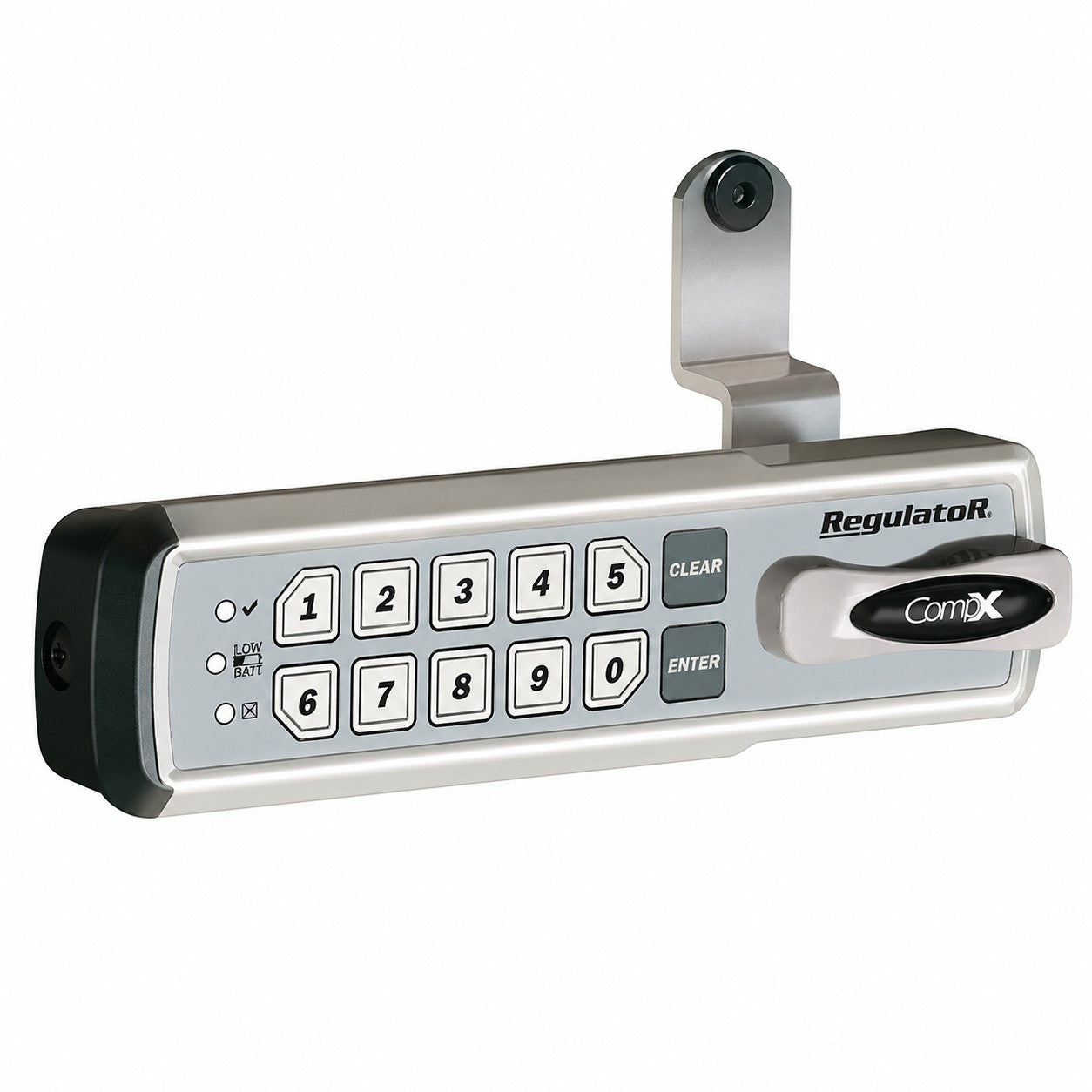

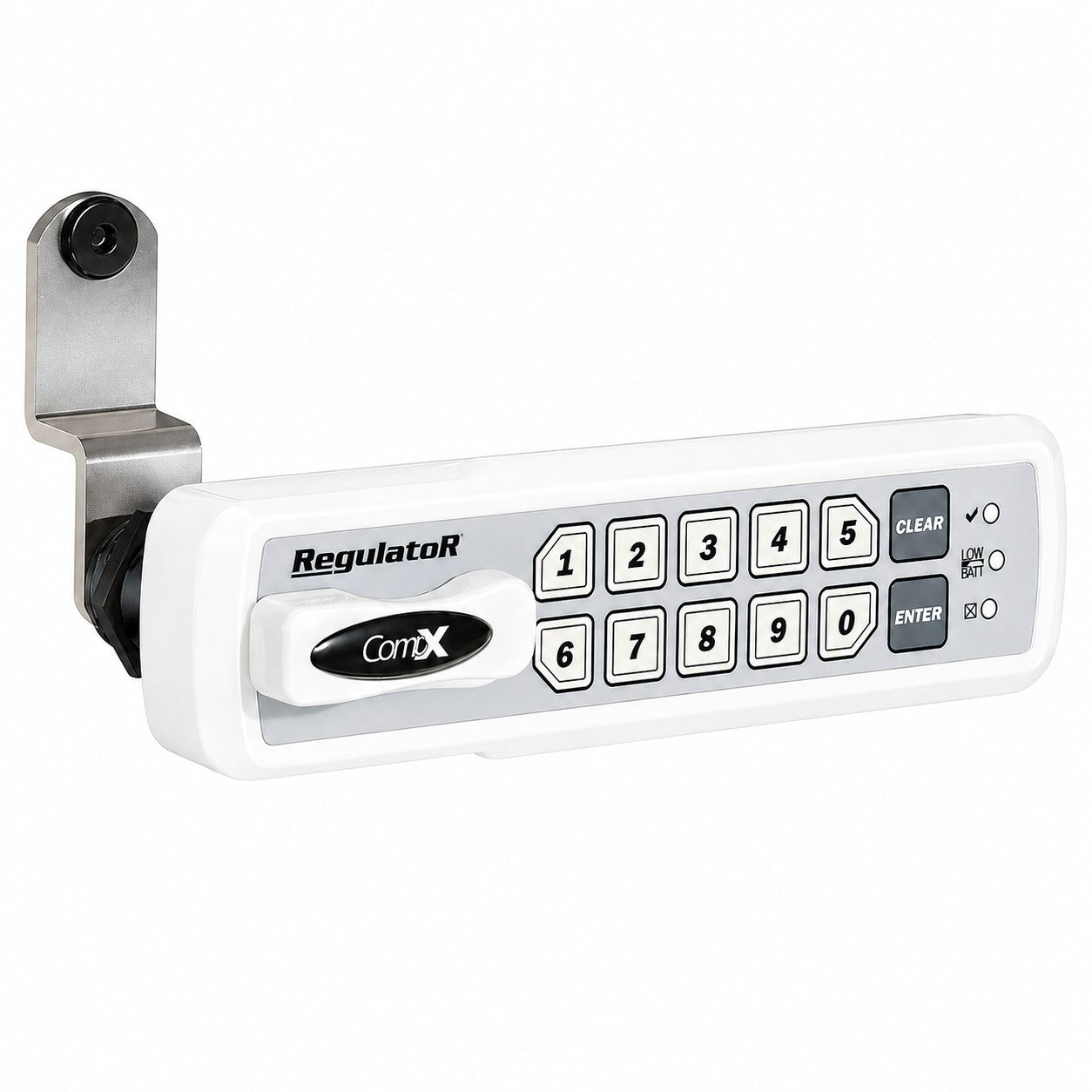

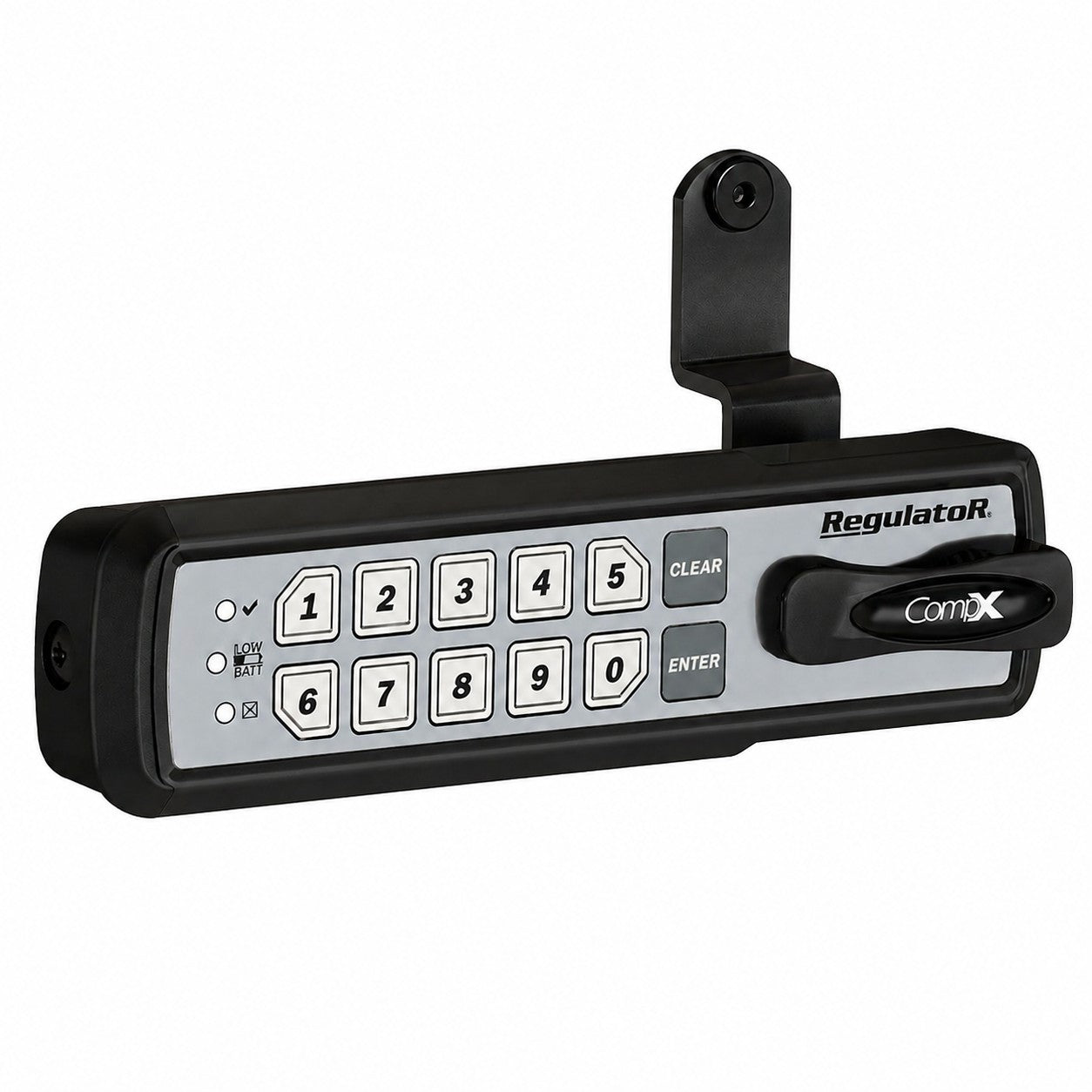

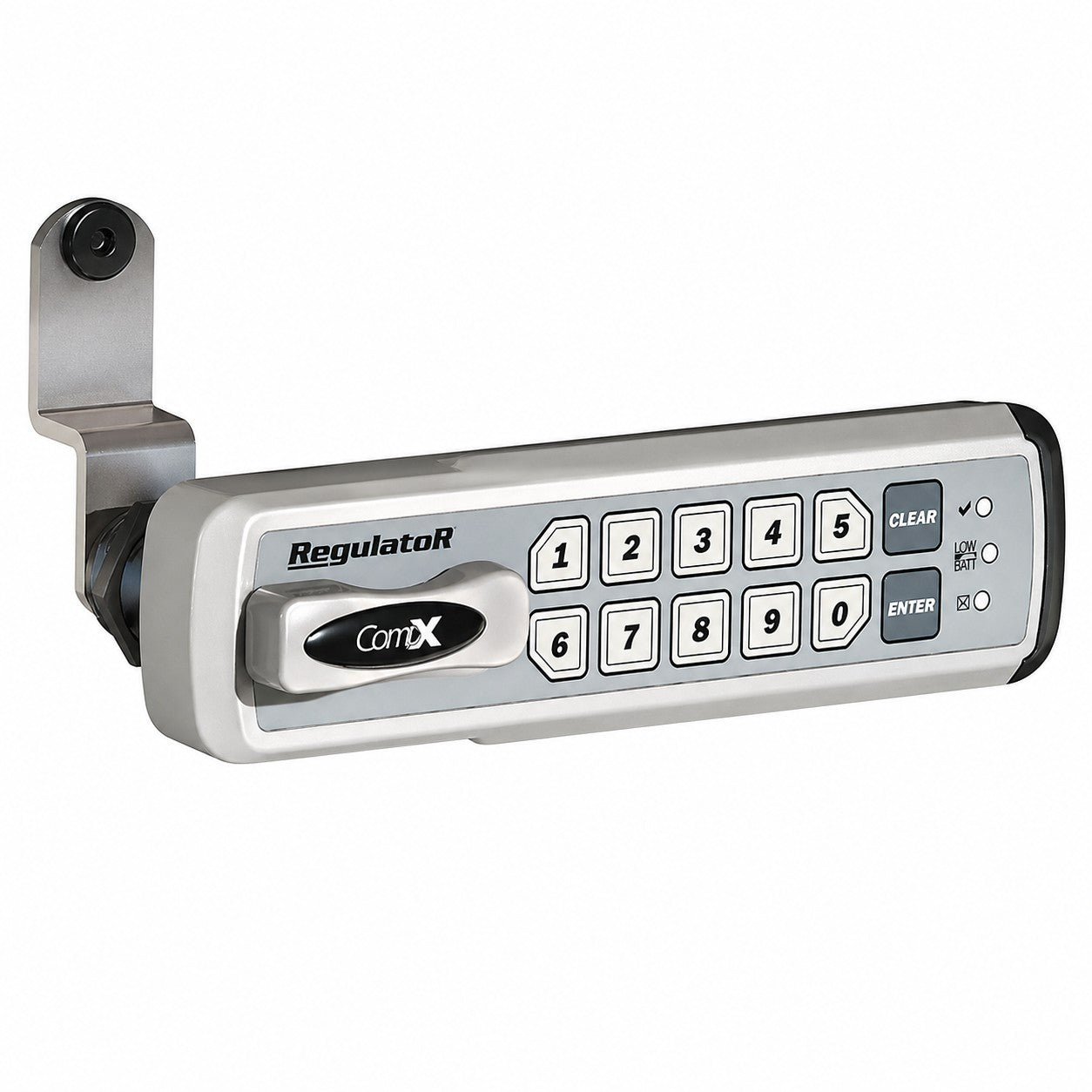

    • Available colors: BK = matte black housing and knob, WH = gloss white housing and knob, no suffix = standard silver finish

    GoKeyless™ is a factory trained and authorized CompX dealer. Sales, service, support, valid warranties. It's why thousands of clients arou width=

    Created by CompX—the makers behind the trusted National, Fort, Timberline, and Chicago brands of traditional cabinet locks—RegulatoR is their latest answer for bringing stronger, smarter security to cabinets in healthcare, schools, laboratories, and office furniture environments.

    Available in both self-locking and manual-locking versions, RegulatoR is designed for easy installation on both new and retrofit cabinet and locker doors. This manually-locking model enhances security and offers keyless entry on lockers and cabinets with shared, or temporary use.

    Made in America, RegulatoR is an excellent starting point for upgrading cabinets to keyless access. Its durable die-cast solid zinc housing, easy-to-clean membrane keypad, and battery life that lasts up to five times longer than comparable products all contribute to a lock that is stronger, easier to use, and simpler to maintain.

    Learning to use RegulatoR takes only minutes, and transitioning to keyless security is no more difficult than remembering a code—something we already do every day for our phones, banking, and countless other secure applications.

    The next time cabinet keys go missing or another door is left unlocked, consider replacing your existing locks with RegulatoR. You’ll reduce security risks, lower the costs associated with rekeying and lost access control, and create a safer, more accountable environment that supervisors and staff alike will appreciate.

    While not as architecturally refined as the more sophisticated Stealthlock from CompX—designed for high-end cabinetry where aesthetics take center stage—RegulatoR still delivers a cleaner, more modern appearance while significantly improving protection for the contents inside.

    No cabinet lock can make unauthorized access impossible, but RegulatoR makes it exponentially more difficult. More importantly, it removes many of the common vulnerabilities that make traditional keyed cabinet locks easy targets in the first place.

    Basic

    Manufacturer CompX
    Battery Type AAA
    Solution Electronic
    Handle Type Turn Piece
    Access Type Keypad - Digits
    Locking Device Cam
    Brand CompX
    CompX RegulatoR

    Door requirements

    Door Handing Left Hand, Right Hand
    Battery Life 50,000 Cycles
    Cylinder Length (In.) 1 3/16 in., 1 3/4 in., 7/16 in.
    Door Opening ["Specialized"]

    Security

    Code Length 4 to 8 Digits

    Dimensions

    Cylinder Length (In.) 1 3/16 in., 1 3/4 in., 7/16 in.
    Dimensions 1 1/2 (H) x 5 3/8 (W) x 11/16 (D) in.
