    Keyswitch

    SKU: 7050

    Dynalock



    3101B type keyswitch, momentary/maintained.

    Quantity left : 0

    Call For Price
    • Switch assembly requires 1-1/2” depth clearance and is shipped on single
    • Switch contacts rated 6 Amps @ 125VAC

    DynaLock

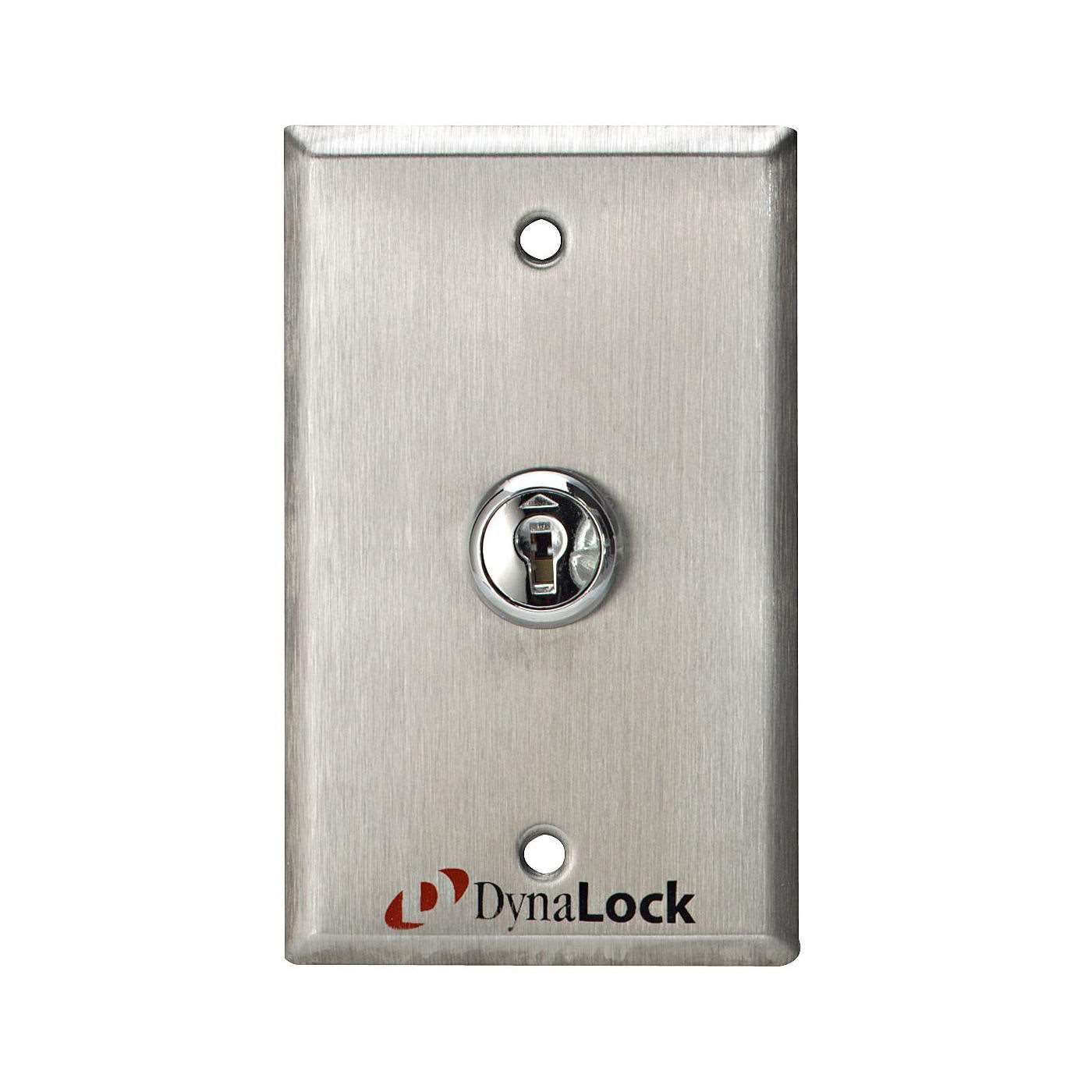

    The DynaLock 7050 mimics the function of the built-in keyswitch in the 3101B delay egress lock, and is recommended when using the 3101B on door heights over 8 ft. Keyswitch mounts on the wall next to your door and is used for resetting and/or bypassing the DynaLock 3101B delay egress lock. Turning the key to the left momentarily bypasses the 3101B. As soon as the key is removed, or your hand is taken off the key, the keyswitch resets to center. Turning the key to the right activates the maintained contact. The keyswitch will not reset to center until the key cylinder is turned back to center. The assembly is supplied with face plate, bracketry, and a locknut. Keyswitches may be used to control electric locks, shunt or activate security panels / consoles or any similar requirements.

    Basic

    Manufacturer DynaLock
    Finish Satin Aluminum
    Product Headline Keyswitch
    Brand Dynalock

    Door requirements

    Security

    Dimensions
