  • Linear eMerge EL36-4MB Elite

    4-Door Access Control System Bundle

    SKU: KIT-620-100258 4x 620-100451

    eMerge and Linear



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $435.66

    Call For Price
    • Feature rich system designed for 4 – 128 multi-door, multi-site systems

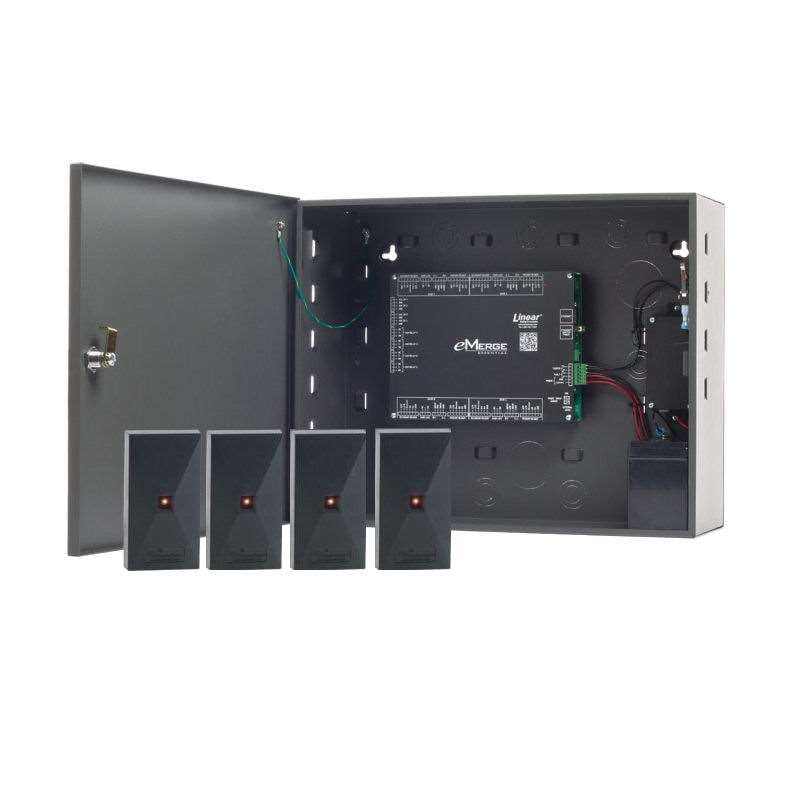

    • Includes platform, enclosure cabinet, and Linear P-300HA card readers
    • Shared hardware and software architecture across all eMerge E3-Series means easy upgrades and expansion
    • Reliable, IT-friendly embedded Linux operating system eliminates:  Virus / spyware attacks; Operating System update dependency
    • eMerge Elite supplies the right amount of access control businesses need:  Starts at 4-doors / 8-reader capacity with out-of-the box expansion capability to 36-doors / 72-readers using modules and nodes
    • Up to 400 readers can be used
    • License key-based scalability up to 128 doors (Access Control Modules and Expansion Nodes also required)
    • Intuitive quick-start wizard allows for ultra-fast setup, saves hours of time versus traditional systems
    • Browser-based management enables system status and updates from any place, with any browser, on any operating system
    • User defined data fields – 10
    • Simultaneous system users – 16
    • 250 Access levels
    • Up to 30,000 Online Transactions
    • Up to 64,000 Access cards
    • Up to 10,000 cardholders
    • Up to 12 cards per person
    • Up to 32 card formats
    • Program up to 60 holidays

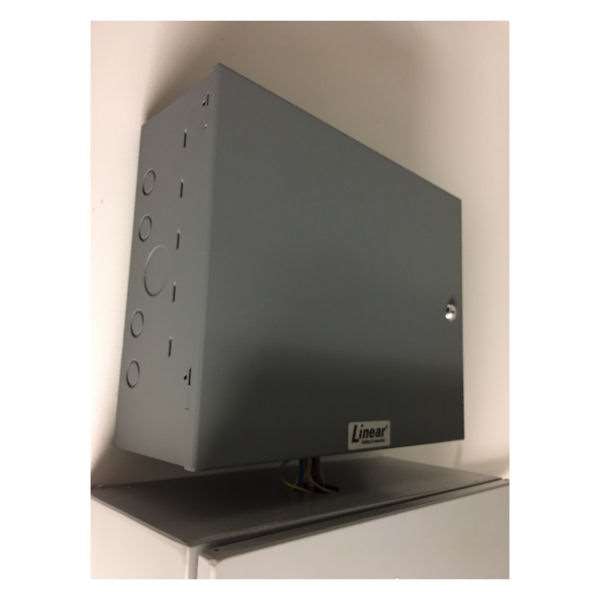

    • Metal enclosure with key lock
    • UL 294 Certified
    • ODBC-compliant MySQL database with API
    • Model EL36-4MB. Order p/n: 620-100259

    Hardware Features

    • 100% solid state components for extended service life
    • High-speed processor handles multiple simultaneous users and more than 30 transactions per second
    • Integrated tamper switch and inputs / outputs for additional functionality
    • Optional Power over Ethernet (PoE) available (allows for backup power through a UPS)
    • eMerge Elite includes: – 10-amp 12 VDC supervised power supply – Capable of housing one additional 2-door, or 4-door access control expansion module – Battery backup-ready enclosure

    Software Features

    • One common software for all platforms, based on Linear’s industry leading access control software
    • Dashboard displays full system status at a glance including: Event and activity log; Customizable door diagrams/floor plans with factory default templates
    • Time-saving and convenient features: – Integrated card decoder – CSV flat file database import – Dynamic event filtering – Built in audit-trail – Automatic daily data backup to Micro SD or FTP-based storage – Usable from iPhone, iPad, Android or other mobile devices – E-mail, text message notifications – Simple, easy-to-use predefined reports – Built-in documentation library
    • Optional software updates for new feature and product enhancements

    Linear

    Open and secure your doors with browser-based access control from Linear. The Elite appliance is a scalable 4-door system you can manage from anywhere you can get on the web. With no independent server, network, or dedicated workstation hardware needed, Elite lets you leverage your existing network infrastructure to deploy an entry-level, easy-to-use, expandable access system to control when and who can enter, and manage the entire application from any device, both locally and remotely. Backed by decades of experience, the full-featured software included with your self-contained hardware controller offers the type of programming you'd expect to find in systems for larger applications. The magic is in how simple Linear makes it to get up and running and start using it. After placing eMerge on your network, open your favorite web browser, type in the web address, and follow the setup wizard. Once you connect your included door readers and electric locks (strikes, or maglocks), you can create access levels, user schedules, and begin issuing credentials. The bundle comes with the Linear P-300HA readers, commonly used to control access with cards. A 10-amp power supply is included with the Elite product. This gives you enough wattage for the controller, and what you'll need at the door for your strikes and mags, up to 8 doors. An optional POE module is also available. The eMerge Elite platform comes with a software license for 4-doors, up-to 8 readers, and 5,000 users. Start with a couple perimeter and interior doors, and then as you need, simply purchase access control modules (2-door and 4-door) and expansion nodes (2-door and 4-door) to expand up to 36 doors. For facilities with larger user populations (up to 10,000), and/or the need to secure additional doors (up to 128), upgrade licenses are available. Elite is a step-up from eMerge Essential in capacity and features. Options to do badging, elevator control, timed anti-passback, one-time scheduled events, and threat level management are all turned on in Elite ensuring you're not caught flatfooted with a system incapable of handling your security needs.  The combination of dependable security and a full-featured system makes Elite a top-tiered choice for companies operating in the medical, industrial, retail, banking, transportation, and institutional fields of business.strikes, or maglocks), you can create access levels, user schedules, and begin issuing credentials. The bundle comes with the Linear P-300HA readers, commonly used to control access with cards. A 10-amp power supply is included with the Elite product. This gives you enough wattage for the controller, and what you'll need at the door for your strikes and mags, up to 8 doors. An optional POE module is also available. The eMerge Elite platform comes with a software license for 4-doors, up-to 8 readers, and 5,000 users. Start with a couple perimeter and interior doors, and then as you need, simply purchase access control modules (2-door and 4-door) and expansion nodes (2-door and 4-door) to expand up to 36 doors. For facilities with larger user populations (up to 10,000), and/or the need to secure additional doors (up to 128), upgrade licenses are available. Elite is a step-up from eMerge Essential in capacity and features. Options to do badging, elevator control, timed anti-passback, one-time scheduled events, and threat level management are all turned on in Elite ensuring you're not caught flatfooted with a system incapable of handling your security needs. The combination of dependable security and a full-featured system makes Elite a top-tiered choice for companies operating in the medical, industrial, retail, banking, transportation, and institutional fields of business.

    Basic

    Manufacturer Nortek Security & Control
    Inputs 108-432
    Memory 512MB DDR2 (333MHz)
    Operating System Embedded Linux
    Power 12V DC
    Storage 8 GB Micro SD
    Warranty 1 Year Manufacturer
    Brand eMerge
    Linear

    Door requirements

    Security

    Dimensions

    Dimensions 18.75 (W) x 14.25 (H) x 6.5 (D) in. (47.6 cm x 36.2 cm x 16.5 cm)
    Weight 6 lbs
