  • HES K200

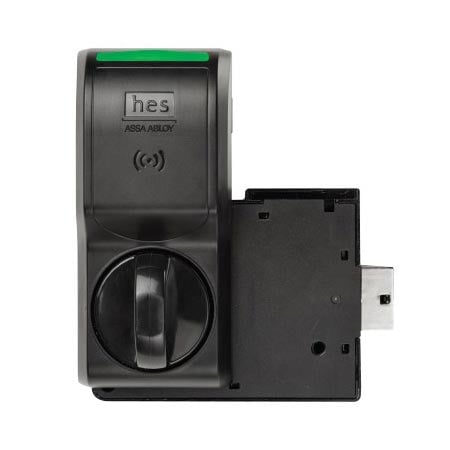

    Integrated Wiegand Cabinet Lock

    SKU: K200-622-B2

    HES



    Know who's getting in your cabinets! The HES K200 lock brings audit trail and monitoring capabilities to your cabinets and drawers. Utilizes RFID credentials such as cards and fobs for quick and convenient lock access. Connects to existing access control system via hardwired Wiegand communication.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $149.85

    Call For Price
    • Stand-alone access control
    • RFID credential access (Keypad model also available)
    • Supports 13.56 MHz RFID card technologies including MIFARE Classic or Ultralight
    • LEDs indicate valid/invalid access
    • Up to 20 master credentials
    • Up to 20 user credentials
    • Public (one-time use) and Private (on-going) programming modes
    • Aluminum die-cast construction
    • 75 lbs. holding force
    • 30,000 cycle battery life
    • External emergency power through micro USB
    • Non-handed
    • Installs on wood or metal cabinet drawers or doors 1/16 to 7/8 in. thick
    • Indoor use
    • Supports 3rd party locking cams (i.e. hooks)
    • Ideal for residential, commercial and institutional applications

    The HES K20 is a stand-alone RFID cabinet lock designed for low to medium security applications. This flexible lock can be programmed for public or private use modes to fit your specific needs. Public mode allows for one-time use of a RFID keycard or fob for temporary access, such as in a gym or spa locker room. Private mode lets the admin create reusable RFID credentials for long term lock access, such as for a supply cabinet or school locker. HES K20 locks utilize high frequency 13.56 MHz credential technology, including MIFARE Classic and MIFARE Ultralight. LED and audio feedback will confirm valid and invalid lock access as well as provide indicators during lock programming. Should the lock lose power, emergency power can be provided via micro USB located on the side of the lock.

    Basic

    Manufacturer HES
    Finish Black
    Holding Force 150 lbs.
    Lock Features Old Audit Trail, Status Monitoring, Tamper Alerts
    Voltage 12/24 VDC
    Warranty 3 Year Limited Manufacturer
    Access Type Smart Card/Fob
    Brand HES

    Door requirements

    Security

    Credential Format 125 kHz Proximity, 13.56 MHz Smart Technology

    Dimensions

    Exterior Dimensions 4 7/16 (H) x 2 (W) x 1 9/32 (D) in.
    Door Thickness Minimum 1/16 in.
    Door Thickness Maximum 1 1/2 in.
    Exterior Dimensions 4 7/16 (H) x 2 (W) x 1 9/32 (D) in.
