  • Lockey TB-950 Magnum

    Concealed, High Use Pedestrian Gate Closer

    SKU: TB-950


    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Self-closing
    • Acts as hinge
    • Tested to 1,000,000 cycles
    • Fits gates 40 – 48” wide & up to 72” high
    • Suitable for gate weight up to 240lb
    • Max. opening angle 90°
    • No hold open (suitable for security gates)
    • Can be mounted on either top or bottom of gate
    • 180 degree capable With additional plate (not included) – Saloon Style – Swing-in/Swing-out
    • For right or left-handed gates
    • Hydraulically adjustable closing speed
    • Hydraulically adjustable latching speed
    • Restrictor to avoid over opening
    • Speed adjustments hidden from view
    • For all temperatures down to -40°F

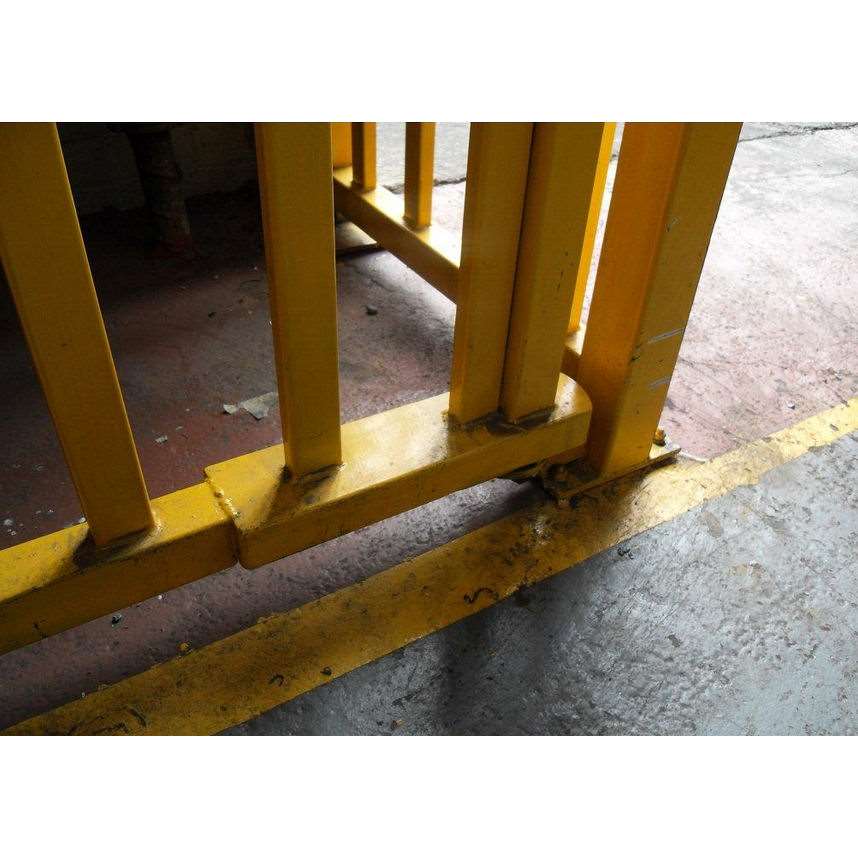

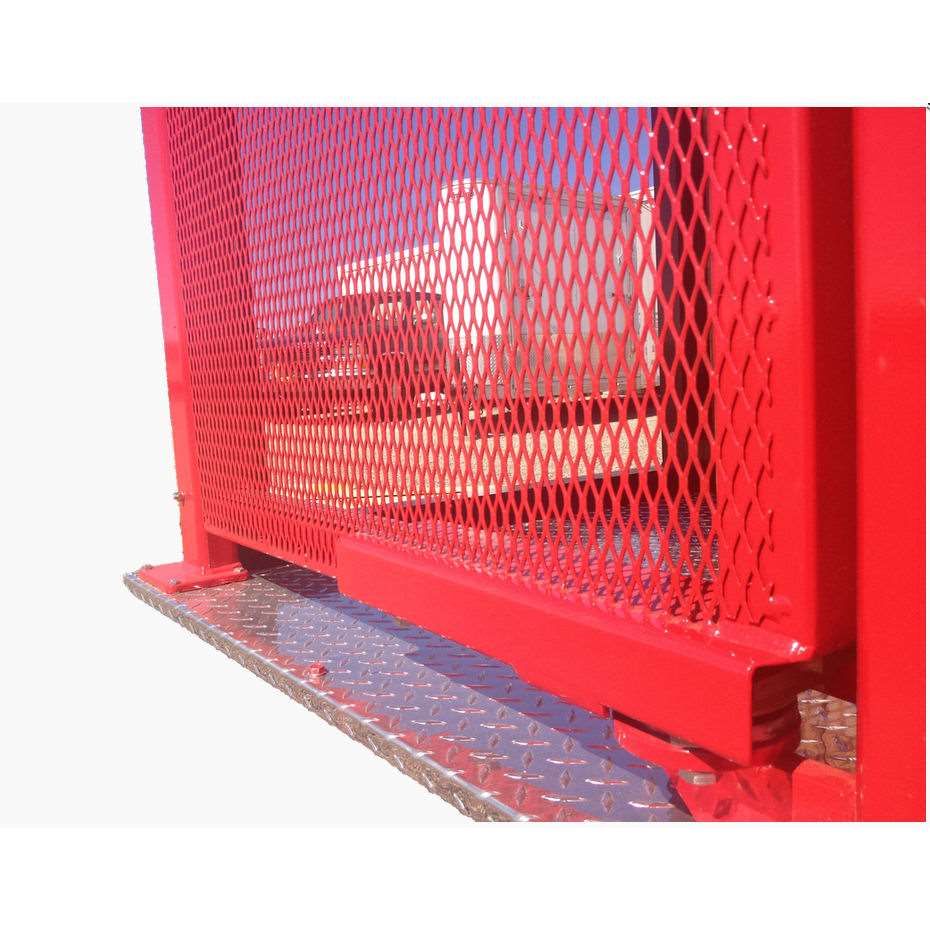

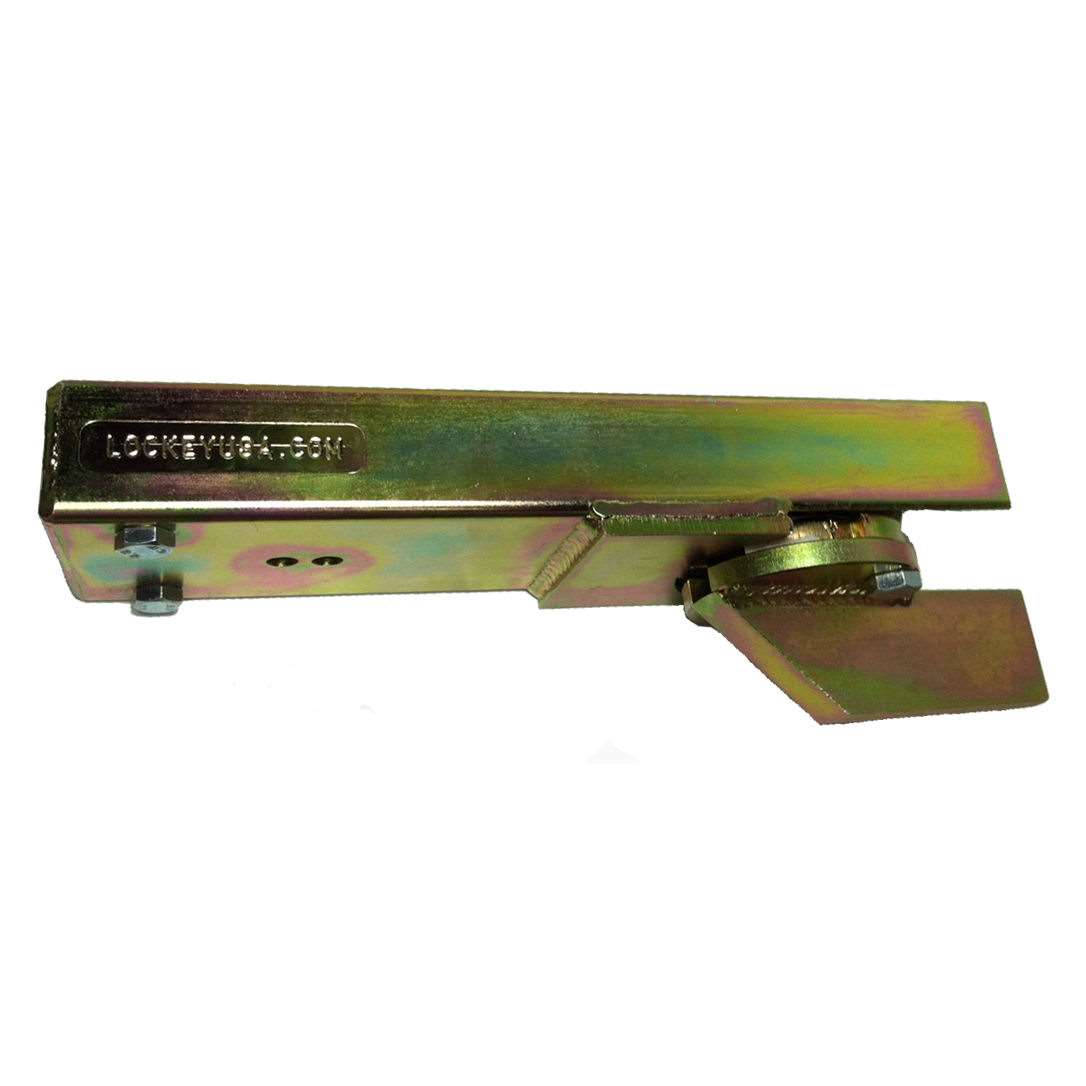

    The Lockey TB-950 Magnum pedestrian gate closer is an all-in-one closer and hinge system which is designed for installation on high use gates. Ideal for man-gates and other heavy gate systems, the TB950 Magnum is perfect for schools, airports, oil fields and other applications where effective perimeter security is necessary. With the closer unit concealed inside a strong steel housing, the Lockey TB-950 Magnum is tamper and vandal resistant. Installation of the Lockey TB-950 Magnum is normally done when the gate is being fabricated, but can be done afterwards, if required. The closer housing and bottom support are welded to the bottom of the gate and post, and the closer top pivot is welded to the top of the post. When the closer housing, bottom support and top pivot are welded to the gate and post, they can be galvanized/painted along with the gate and posts. Whether the closer is for use with a lock, latch or electromagnet, the two hydraulically controlled speed adjustments will give the correct closing speed. There is one control to adjust the closing speed, the other regulates the latching speed. Both controls are hidden underneath the gate closer housing and can be easily adjusted with an Allen key. The gate closer housing includes a mechanical stop which restricts the opening of the gate to avoid damaging the closer. With no 'pinch points' the closer can be set for right or left hand without any additional parts or fabrication work. Limited maintenance is required, only regular gate inspection and periodic lubrication.


    Manufacturer Lockey
    Brand Lockey

    Door requirements
