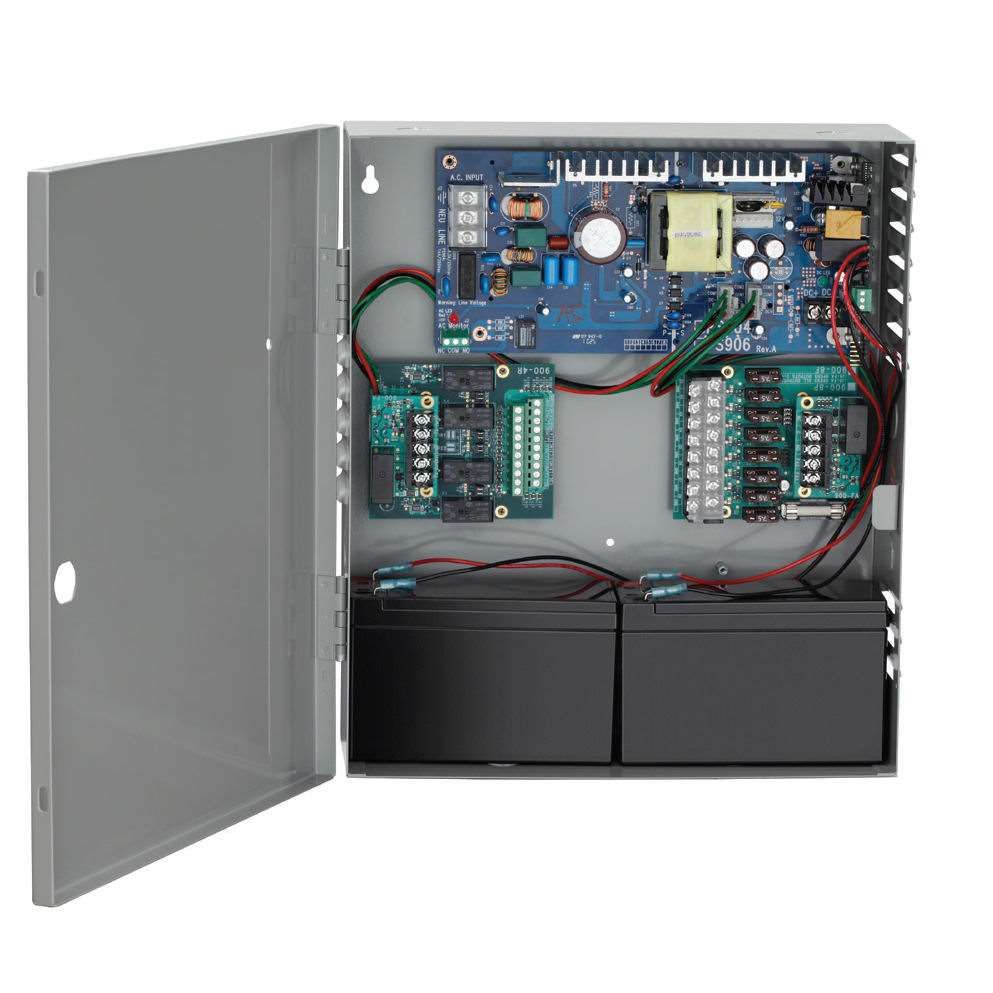

    2 Amp 12/24 VDC Power Supply

    SKU: PS902

    Schlage



    Battery Back-up

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $105.37

    • Regulated and filtered DC outputs
    • AC input and DC output LED indicators
    • One connector for optional distribution boards
    • AC input status indication on outside cover
    • AC status monitor
    • NEMA 1 enclosure
    • Hinged cover w/ lock down screws
    • High voltage protective cover

    Specs

    • Dimensions: 12 H x 14 W x 4 L in
    • 2A @ 12/24 VDC output, field selectable
    • Class 2 Rated power limited output
    • Universal 110 -220 VAC input
    • UL294 Listed for Access Control

    NOTE:  PS902 power supplies require connection to AC line voltage. Installation and all electrical connections (high and low voltage) should be performed by a qualified electrical contractor.

    Wire Guage Selection Guide

    Capable of sourcing 2 Amps at 12/24 VDC, the Schlage PS902 power supply delivers exceptionally stable current for efficient operation of your access control hardware. Offered in a base model, and base plus battery backup model, the Schlage PS902 is also customizable using option boards to meet your access control projects specific requirements. The Schlage PS902 and PS902 BBK is the recommended power source for your Schlage CT-5000 offline controller, and peripherals, including your electric lock, request-to-exit switch, and reader.
    CT-5000 offline controller, and peripherals, including your electric lock, request-to-exit switch, and reader.

    Basic

    Manufacturer Allegion
    Brand Schlage

    Door requirements

    Security

    Dimensions
