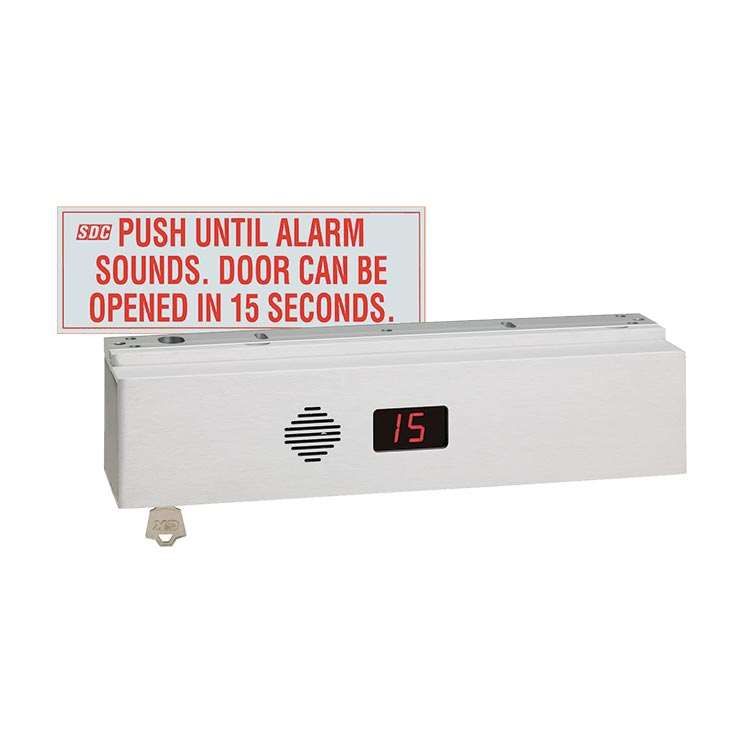

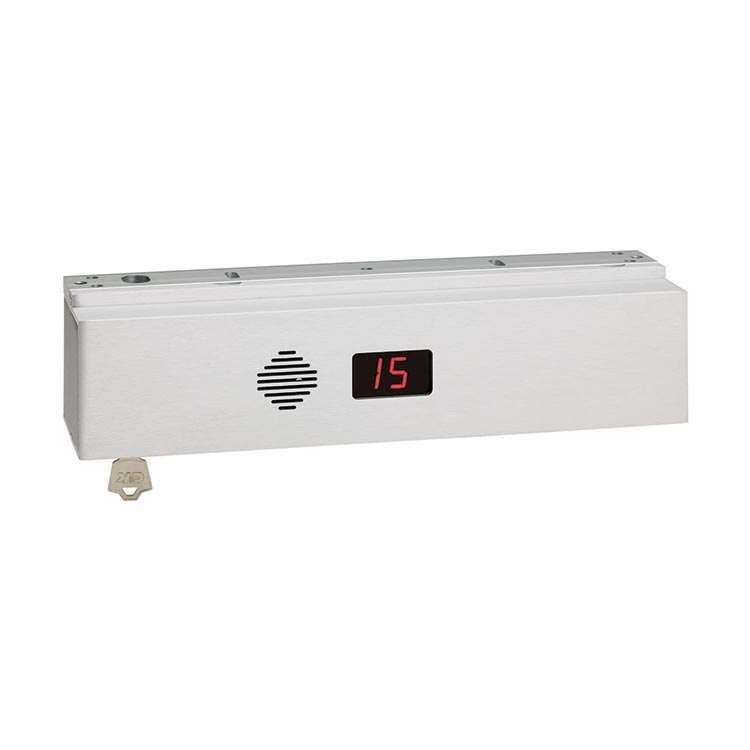

SDC 1511S

• Field-selectable voice message and alarm tone, or alarm tone only, 75 db at 3 ft
• The visual display provides a digital countdown, indicates lock release and verifies if the door was opened for egress
• Choice of fixed 15 second exit and 1 second nuisance delay or field-selectable 15 or 30 second exit delay and 1 or 2 second nuisance delay
• Field-selectable security or safety message
• Field-selectable activation:
• Field-selectable automatic or manual relock upon power up after emergency release or power loss
• Integrated 3 position key switch provides:
• Field-selectable door prop alarm: Alarm sounds when door is left open after selected bypass time has elapsed
• Anti-tailgate feature
• Single or multi-door zone control and reset capability
• A signal from the fire/life safety system will release the lock immediately for uninhibited egress in an emergency.

Control Inputs

• Remote access control and REX input, field adjustable for 1, 15, 20 or 30 seconds
• Remote reset input
• Manual power-up input
• Emergency release input
• Anti-tailgate input

Monitoring Outputs

• Door secure and unlocked output
• Delayed egress activation alarm output

Patient and Infant Tracking System

The SDC Exit Check® is compatible with patient tracking systems, like those used for protection against infant abduction from hospital nurseries, and for the protection of patients in long term care facilities who may be endangered if they leave their care facility without supervision

1511S Model

For single doors equipped with:

• Mortise or rim mount exit devices
• Surface or concealed vertical rod exit devices with surface or concealed strikes and triggers
• Mortise or cylindrical locksets
