(1) MO push switch and (1) AA (on/off) toggle SPDT, 6 Amp @ 30VAC/DC
Appx. 5 second pulse of unlocking time when using the momentary push
REX input of an access control or to the trigger input of a time delay relay to allow timed access and egress
Dimensions: 1.125″H x 3.125″W x 1.5″D

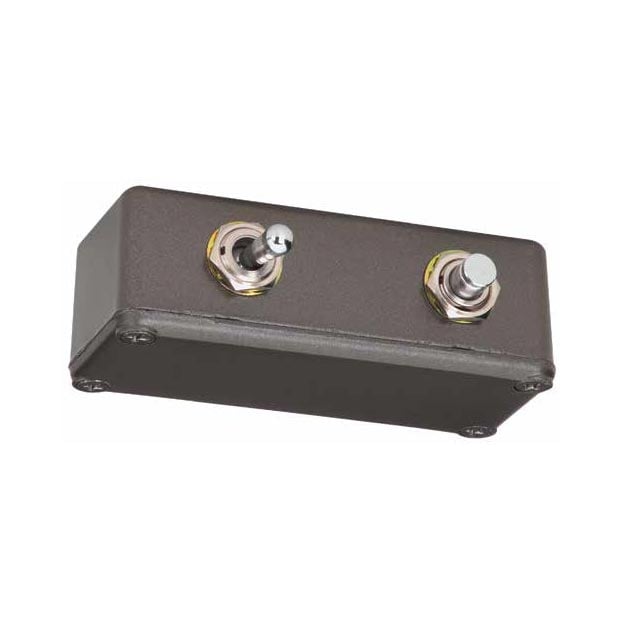

The SDC 15-2-3 Concealed Desk Switch mounts on the underside of a desk for remote door control. A dual switching device, you can release a door momentarily, or use the on/off toggle for sustained bypass. This switch may be connected to the REX input of an access control or to the trigger input of a time delay relay to allow timed access and egress. The 15-2-3 is also offered in a bundled kit for easy setup of a remote release buzz-in system on wood/metal doors with bored cylindrical latch locks.
