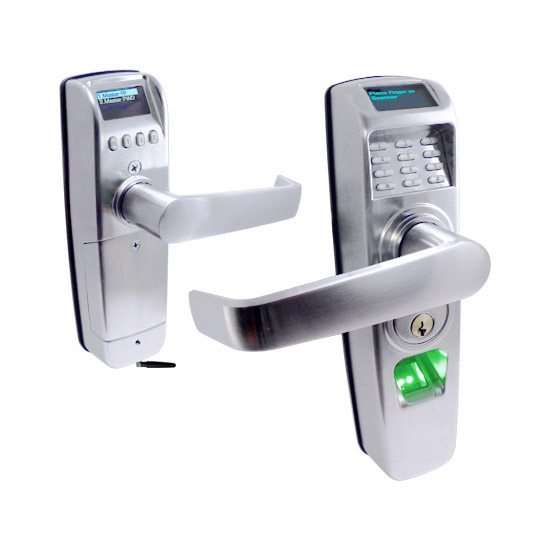

  • STRATTEC Advanced Logic RTS-Z

    PIN and Biometric Lock with Z-Wave

    SKU: RTS-Z

    STRATTEC Advanced Logic

    FREE Software with purchase of any STRATTEC Advanced Logic Lock ($400 Value!)



    The STRATTEC RTS-Z provides an ideal solution for security-sensitive business and government environments. Z-wave allows remote access and retrieve audit logs. Easily set access control rights for each individual user and lock with fingerprint, PIN code, or a combination of both! Large user capacity and a built-in scheduling system round out this lock.

    In Stock

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $95.80

    Call For Price
    • Fingerprint Model, Non-Fingerprint Model Available
    • Meets or exceeds Z-Wave Alliance requirements
    • Z-Wave Plus 5202 chipset with integrated Z-Wave controller – Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity
    • 260FT wireless open-air range, this is double what other Z-Wave devices offer
    • Mesh network extends range of other devices
    • Auto-locking
    • Up to 1000 users per lock
    • 3 Authority Levels:  Administrator, Manager & User
    • Multi-modal options with PIN Code, fingerprint and mechanical key
    • 4th generation advanced CMOS optical fingerprint sensor – RTS Optical Scanner (sold separately) required for fingerprint enrollment into MS1 software
    • Locks can be managed as a stand-alone unit or through your computer with optional MS1 software
    • First person in prevents doors from automatically unlocking at scheduled times even if personnel have yet to arrive
    • Capture, review, and transmit audit trail history
    • Easy to read and use inner and outer OLED screens
    • Weather resistant and rock solid construction
    • Secure PIN Code access
    • Transfer and view audit trails to any authorized PC using USB
    • Lock Meets Grade 1 Standards, Backset: 2-3/4 in – Grade 2
    • PIN or fingerprint only; User ID and Finger Print or PIN
    • Battery Operation:  Requires 4 AA (sold separate)
    • FCC, CE, UL, ANSI, ROHS Certifications
    • ISO/TS, 16949, ISO 9001, ISO 14001 compliant

    MS1 Software Features (included)

    • MS1 User Management software for administration of the locks on your network
    • Capture, review, and transmit audit trail history
    • Scheduling: Create user specific lock schedules, and scheduled lock time. Does NOT support scheduled unlock (only used in atypical applications). Users with Administrator authority have access at all times
    • Holiday Mode: Set up to 12 dates which will override regular unlock periods, keeping lock secure

    NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive

    Warranty

    • 2 Year Limited Manufacturer

    Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity

    RTS Optical Scanner (sold separately) required for fingerprint enrollment into MS1 software



    The RTS-Z is perfect for security-sensitive business and government environments. Easily set access control rights for each individual user and lock, then upload that data in seconds via USB drive. You can register users as fingerprint only, PIN-code only, or a combination of both on any lock or group of locks you define. The combination of large user capacity, audit trails, built-in scheduling system and weather-proof design makes this system unequaled in value compared to other products currently available.

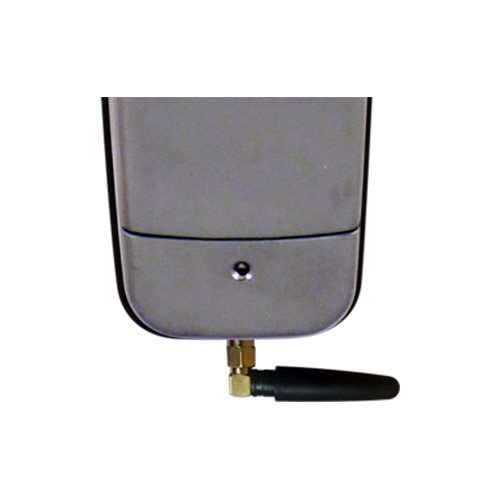

    The Z-wave chip inside the RTS-Z allows the lock to communicate with your computer and MS1 software for convenient remote access features*, including retrieving audit logs and remote lock/unlock. RTS Z-wave locks and MS1 software saves you time and money by reducing the amount of times you need to physically visit the lock.

    RTS Series locks deliver uncompromising commercial-grade quality. This lock is a true workhorse, tested to over 2 million duty cycles. The RTS has a 3-hour UL fire-rated latch and a free-wheeling clutch. The outdoor portion is weather resistant, making it ideal for exterior applications.

    *NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive. Additional remote access features coming soon.

    LAN or WAN Z-Wave Setup

    THIS LOCK CAN BE USED WITH EXISTING KEY SYSTEMS

    The RTS lock series includes a removable rim cylinder in standard sizing. These locks can be adapted to use other keyways using a Small Format IC Housing Adapter.

    Please Contact Us if you need more information or help ordering

    Basic

    Manufacturer Strattec Advanced Logic
    ANSI Rating Grade 2 (Better)
    Battery Type AA
    Finish Satin Chrome
    Keyway Schlage SC4
    Lock Features Audit Trail, Remote Control, Scheduling, Z-Wave Plus
    Solution Biometric, Electronic
    Warranty 2 Year Limited Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Fingerprint
    Keypad - Digits
    Brand STRATTEC Advanced Logic

    Door requirements

    Door Handing Universal
    Battery Life 1,800 Openings
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 2 to 10 Digits
    Fire Rating UL 3 hr. Latch
    Users 1,000
    Wireless Range 260 ft

    Dimensions

    Door Thickness Minimum 1 1/2 in.
    Door Thickness Maximum 2 in.
    Backset 2 3/4 in.
    Dimensions 9 1/2 (H) x 3 (W) x 1 1/2 (D) in.
    Door Stile Width Minimum 4 in.
    Weight 8.8 lbs

    STRATTEC Advanced Logic MS1 software is for use with RTS Series locks and is now included with every RTS lock. This software makes managing hundreds of users and locks simpler, and allows you to:

    Manage users for one or more locks, including adding fingerprints*, PIN codes and all individual user permissions, allowed entry times and more
    Query and analyze audit trails from any lock in your network
    Backup and restore all of your lock databases
    Edit global lock settings for each lock, including global access times
    Allow each lock to have a different set of 1000 users and allows you to cut and past individual users or even groups of users to any lock in seconds
    Control any number of RTS locks
    *RTS-D2300 Optical Scanner (sold separately) required for fingerprint enrollment

    View this downloadable PDF for the full list of MS1 software features

    NOTE: MS1 software is Windows only, NOT compatible with Apple iOS


    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
