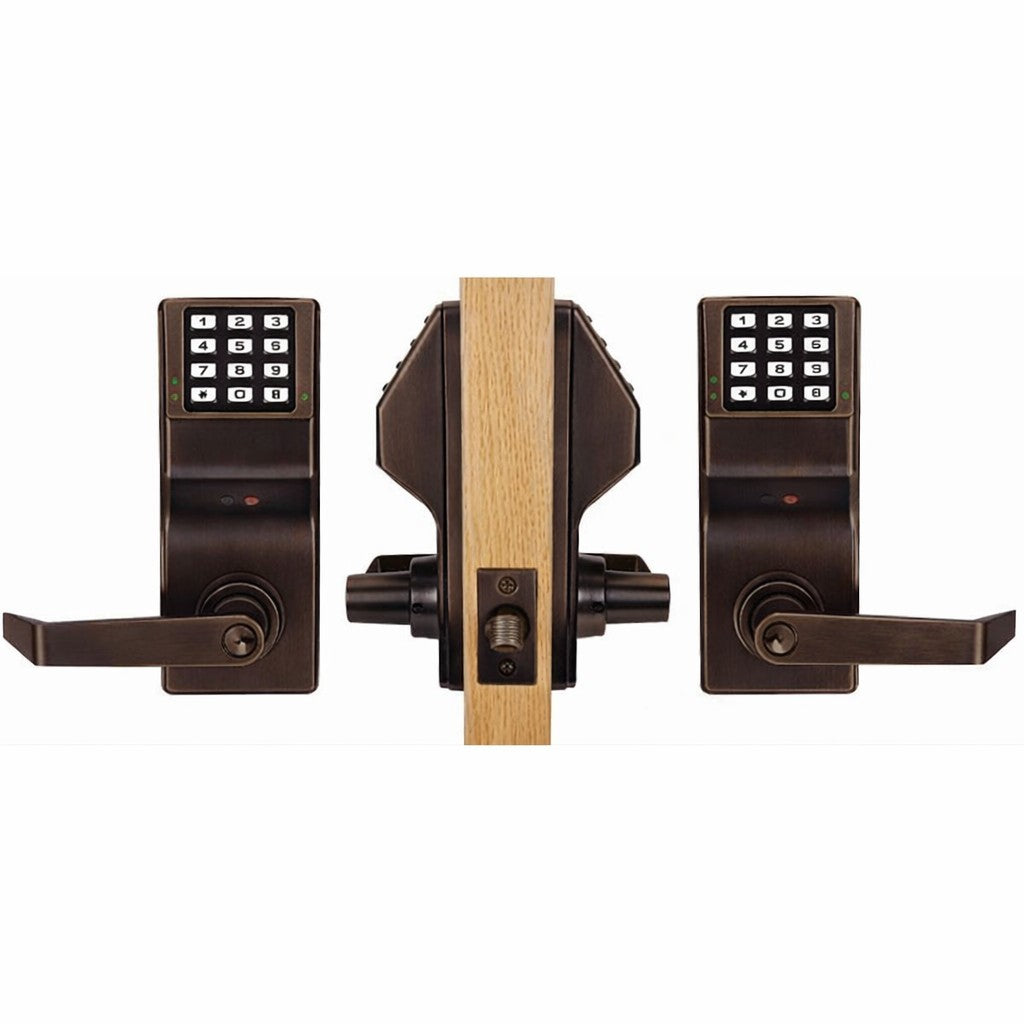

Trilogy DL5300

Name: Trilogy DL5300
Brand: GoKeyless
SKU: DL5300/26D
Price: 1176.02 USD
Availability: InStock

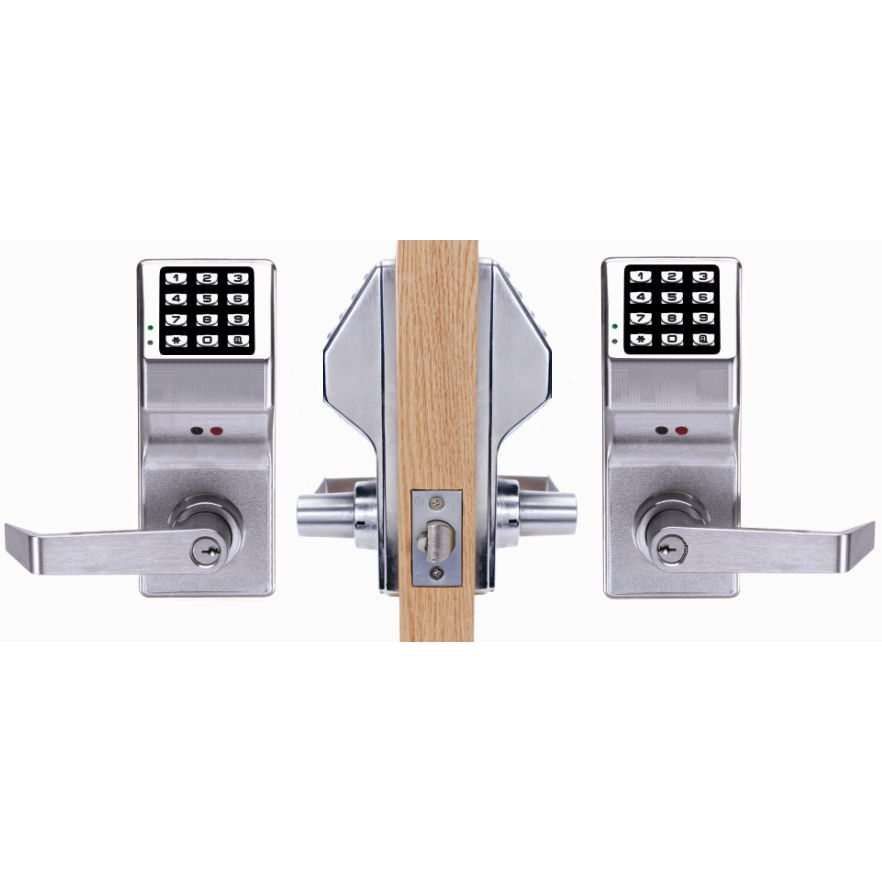

Two-sided Electronic Keypad Lock

SKU: DL5300/26D

Alarm Lock Trilogy

The Trilogy DL5300 Two-sided Electronic Keypad Lock provides keyless, controlled access on both sides of the door. Capable of accommodating multiple users. Trade your keys for codes and manage users from the door in seconds. Suitable on gates and openings where dual sided control is needed. Deter theft and ensure doors are always locked.

$1,869.00 $1,176.02 SAVE 37%

Features
Description
Specifications
Trilogy Support

Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch
Program at lock (on primary side of door), or with your computer using Windows PC based software
PC interface cables
Want to use your desktop PC? No problem, be sure to add the DTM-III to your order. Users are tied to an ID number whether programming at the lock, or on your PC. On PC you have advantage of relating user's full name to ID number
Program users to have access through both sides of the door or just one side
Vandal-resistant construction with an all metal keypad. Rugged clutch mechanism insures long life & durability
Weatherproof performance
Real-time Clock — Schedule up to 500 timed events, including holiday schedules. Program lock to auto lock at certain times, or auto-unlock. Program times when certain users or groups of users can gain access
Supports 2000 users with PIN codes of 3-6 digits in length. Millions of possible codes. Program in Master, Manager, Supervisor and Basic User codes
"Temporary Keypad Lockout" after 3 unsuccessful code-entry attempts
40,000 event audit trail with time/date stamp. Download via laptop, DTM-III, or IR-1 printer. Shows user direction
4 Time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
Easy to install. Retrofits cylindrical locksets

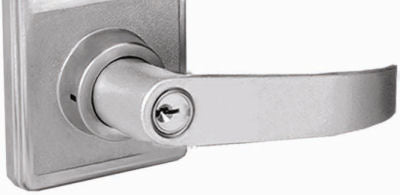

Available in standard key override (includes standard cylinder with a 6-Pin, solid brass, Schlage SC1 keyway. You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders), and IC prep - interchangeable core models accepting 6 or 7 pin cores from Best, Arrow, or Falcon. Use your own cores, or you may order one from us here. IC models may be subject to a lead time
Key override on primary door side (mirror key cylinder also provided on secondary side, however it is used solely to gain access to battery compartment)
Battery Operation: 5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup (9V’s sold separately)
2 3/4" Backset (2 3/8" available at checkout) How do I measure?
2 year manufacturer warranty

Deter theft and ensure doors are always locked with the new Trilogy DL5300 double-sided electronic lock by Alarm Lock. It has a rich feature set and is ironman tough. You will use it on gates, and openings where you need to control access on both sides of the door, such as jetways and police interrogation rooms. This powerful electronic door lock lets you issue codes instead of keys. You will even be able to delete users from the door in seconds, and access an audit trail of when and who has entered or exited, in case something comes up missing. A new electronic smart lock like the DL5300 is also a strong first-line-of-defense against private, or sensitive information being stolen or compromised. Since user’s don’t have to worry about locating and taking their keys with them each time they leave, the likelihood of doors being left open or propped open is virtually eliminated. If you add up the time spent issuing and tracking keys, and the expense of re-keying and changing out locks, not to mention liability costs, you will see the Trilogy DL5300 quickly pays for itself.

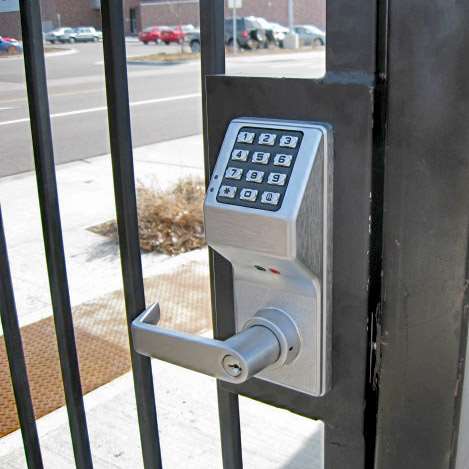

Perfect for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms, psych and Alzheimer areas, and more!

Basic

Manufacturer	Alarm Lock
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Event Scheduling	500, Automated Unlock/Lock
Lock Features	Audit Trail, Double-Sided, Passage Mode, Scheduling, Timed Codes
Solution	Electronic
Warranty	2 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	Alarm Lock Trilogy

Door requirements

Door Handing	Non-Handed
Battery Life	60,000 Cycles
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Security

Code Length	3 to 6 Digits
Code Capacity	2,000
Fire Rating	UL 3 hr. latch

Dimensions

Exterior Dimensions	8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
Inside Dimensions	["8 (H) x 3 1/4 (W) x 1 7/8 (D) in."]
Door Thickness Minimum	1 5/8 in.
Door Thickness Maximum	1 7/8 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 4 1/2 in.
Exterior Dimensions	8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
Weight	12 lbs

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours: M-F 9am-5pm EST
