  • Von Duprin EPT-10

    Electric Power Transfer with Ten 24 Guage Wires

    SKU: EPT10-SP313

    Von Duprin


    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Call For Price
    • UL Rated
    • Door Applications:  Low Amp, and applications where you are powering more than one switch, for example, Request-to-Exit switch, signal switch, and touch bar.  Applications with high amp requirements, such as powering a Von Duprin EL (Electric Latch Retraction) exit device, be sure to order EPT-2, which supplies a thicker 18 gauge wire
    • Fits Swing Doors:  Up to 5″ butt hinges – 180° Swing; 5 1/2″ butt hinges – 130° Swing; 6″ butt hinges – 110° Swing; 3/4″ butt offset pivots – 180° Swing°
    • Not for use with swing clear hinges or center-hung pivots
    • Accommodates 12 or 24 volt DC
    • Includes ten 24 gauge wires (more than enough), up to 1 amp @ 24VDC, with a 16 amps maximum surge
    • Housing Dimensions: 9″ x 1 1/4″ x 1-5/8″


    Wire Gauge Selection Guide

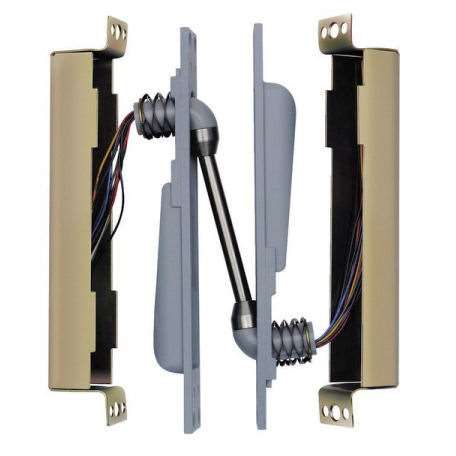

    A more industrial alternative to a current loop cord, the EPT-10 electric power transfer by Von Duprin is well suited for moving power from door frame to the door, especially at electrified openings with heavy traffic, or abuse.  Completely hidden from view when the door is closed, the EPT10 electric power transfer comes furnished with 10ea. 24 gauge wires, and installs by mortising one half into the frame, and one half into the door.  A flexible armored conduit secures the wires as they pass between the two halves.


    Manufacturer Allegion
    Finish Satin Aluminum, Dark Bronze Painted
    Brand Von Duprin

    Door requirements
