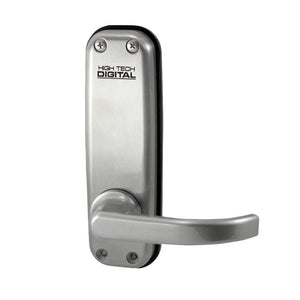

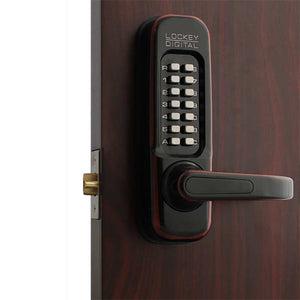

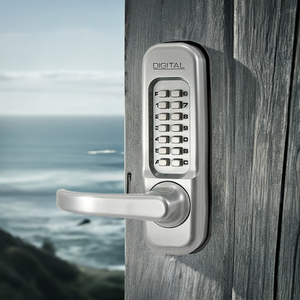

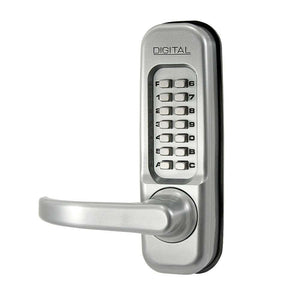

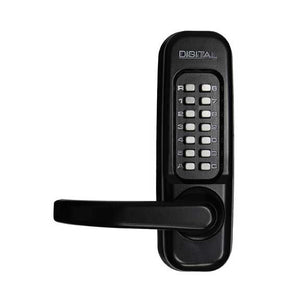

Marine Grade Industrial Strength Push Button Lock
Meet the steel that will keep you secure day in and day out. With a heavy duty lever and passage function, this lock uses recessed buttons for added security and a breakaway slip clutch in the handle that prevents damage when unauthorized use occurs. Very tough.
For more information or ordering assistance, please call our Commercial Project Specialists at 877-439-5377 ext 9003
- 100% Mechanical combination door lock; no batteries or wires necessary
- Code can be 3-5 characters in length (a code with more or less characters requires a Tumbler Pack – sold separately at checkout)
- Industrial Strength / Salt-water Proof: Internal parts are teflon coated, with marine-grade finish on exterior
- Virtually Indestructible: Components made of brass, stainless steel and diecast zinc
- Fits in standard 2 1/8″ door hole and covers it completely
- Latchbolt with deadlocking plunger for added security; 2 3/8″ and 2 3/4″ backsets included
- Full size reversible lever handle – ADA certified
- Automatically locks door when closed unless you have engaged the “passage” feature (In pass-thru mode door will latch shut, but not lock. To set pass-thru, simply press the ‘R’ button, followed by your pass-code)
- Clutch lever handle prevents damage if mechanism forces
- Installation is EASY – instructions, positioning template, and mounting hardware is included
- Completely weatherproof
- Tens of thousands of codes to choose from
- Fits nearly all hinged doors
Lever: 5 (W) x 3/4 (H) in., Lock: 7 1/2 (H) x 2 7/16 (W) x 2 7/8 (D) in.
|Door Thickness Minimum|
1 3/16 in.
|Door Thickness Maximum|
2 11/64 in.
3 to 5 Digits
|Door Stile Width|
Minimum 4 in.
Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
Lever Handle Door Locks
Keypad – Digits
2 3/4 in., 2 3/8 in.
Customer Questions & Answers
- Q I have such DIGITAL lock installed for the ped. door of the house gate. How do I change the optio... answer nowAsked by Fan on March 25, 2022 3:13 PMA
In order for the lock to require a code to access the door from both sides, you will need the double-sided model, Lockey 1150DC.
- Q Do you have screws and tailpiece for a 4" wooden gate? answer nowAsked by Jon Rickard on January 27, 2022 7:08 AMA
We certainly do! You will need the EXT-KIT 1150 thick door kit for this model.
- Q Is the cover marine grade stainless steel, or just zinc plated steel? answer nowAsked by Jeff Liu on May 23, 2020 9:44 PMA
This model is a combination of stainless steel and diecast zinc.
- Q i have used similar pushbutton door knobs like the simplex version but the button order is not re... answer nowAsked by terry on May 19, 2019 10:48 AMA
Yes, you can enter the code in any order as long as you get the right numbers.
- Q Does this lock fit a 2 inch gate and a 2 3/8 inch lock set ? answer nowAsked by Ross Sabiston on May 4, 2019 3:09 PMA
While it will fit those dimensions it is recommended that you speak with our gate sales to ensure that you have the proper setup on your gate to install this lock.
- Q Door handing is listed as "universal" does this mean it can be switched from left to right depend... answer nowAsked by ilana on May 3, 2019 3:25 PMA
Yes, that is correct.
- Q Can you set multiple codes at one time for employees answer nowAsked by forrest on October 26, 2018 10:03 AMA
No, this is a mechanical lock which only uses a single code for entry. That code can be given out to multiple people but they will all have the same code. If you need something with multiple codes we would recommend the Eplex E2031.
- Q Will this lock work on a pool gate.? Our gate is a cylindrical type of fencing. answer nowAsked by Ann on June 16, 2017 3:13 PMA
Yes, this lock is cylindrical and will work outside on a gate. However, you need to make sure that you have enough room top to bottom on your gate box to fit the size of this lock. If not you can purchase a new gate box to go with this lock that will need to be welded in place of your existing box.
