Schlage Connect FE469NX Touchscreen Entry Set with Camelot Trim


Pair with compatible home automation or security systems for anywhere remote management & control.

Your Current Selections:
Your Current Selections:

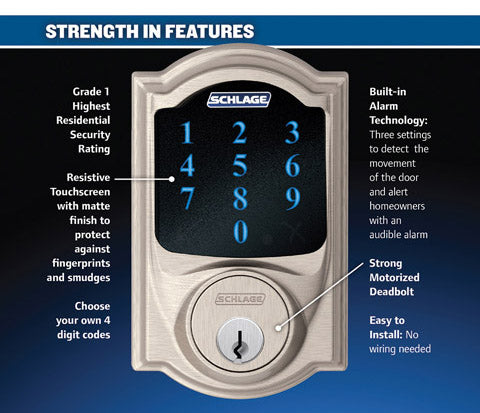

  • ANSI Grade 1 Highest Residential Security
  • Durable Resistive Touchscreen with matte finish to protect against fingerprints and smudges (can be used with gloves)
  • Camelot handle set and latitude Lever with century trim
  • Anti-pick shield protects against lock tampering
  • Strong motorized bolt automatically locks and unlocks when a user code is entered
  • Build-in Alarm Technology senses movement of the door and alerts homeowners with an audible alert
  • Select between three alerts- activity, tamper or forced entry alert- and customized to meet fit your security needs
  • Remote Lock and unlock from anywhere with your cell phone, and schedule lock codes. Simply pair to Z-wave controller, or alarm system Vera, BeHome247, or Nexia.  Controller also available with Nexia Home Security Kit, and Home Energy Kit
    • With Nexia Home Intelligence only, receive text alerts when an alarm triggers or when specific codes are entered at the lock
  • Key Override:  Bump Resistant 5-Pin Cylinder, includes 1 Backup Emergency Key (Extra keys sold separate at checkout)
  • Battery life approximately 1 year, 4 AA Batteries Included
  • Backset: Universally made for 2 3/8″ and 2 3/4″ preps
  • Fits virtually all swing doors
  • Lock and Handleset Extension Kits available for thick doors
  • High-speed internet connection (DSL, or cable) required for wireless remote lock, unlock, and monitoring features from a PC. Cell phones must be web-enabled

Important: To use the wireless features of this product, you must have a Z-Wave controller.  We suggest VeraEdgeVeraPlusNexia, or BeHome247 for plug-n-play setup.
GoKeyless is a trained and authorized Schlage® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year. The Touchscreen Deadbolt with Handleset and Decorative Interior Trim combines all of the best security features into one keyless front entry door lock, redefining what it means to be secure. The innovative touchscreen feature provides the convenience of going keyless. No more keys to lose, hide, carry or forget. The fingerprint-resistant touchscreen ensures numbers won’t be detectable to intruders after repeated use, safeguarding your home even more. Schlage's Touchscreen Deadbolt with Alarm combines our best security features into one door lock: Grade 1 certification, an Anti-pick shield, Built-in Alarm technology. The Schlage Connect front entry lock is also enabled to work with Nexia Home Intelligence, a home automation system that allows you to control locks, thermostats, lights, cameras and more — from wherever you and the Internet happen to be.

Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

*Also works with Samsung SmartThings, Wink, Iris, ADT Pulse,, Honeywell, HomeSeer, LG Smart Security, Staples’ Connect, Harmony by Logitech, and many more.

Strengthen your Z-Wave network with a Signal Repeater

Learn More

Looking to use voice commands to lock your door with Amazon Alexa?  Simply pair the Schlage Connect lock to the VeraPlus controller and then enable the Vera skill inside the Alexa app. Speak “Alexa, lock the front door” to your Amazon Echo or Dot, and Vera will throw the bolt wirelessly.  Cool thing is you can then add electronic switches, Z-Wave LED bulbs, remote control outlets and other devices you can use to create groups in Alexa for automating certain routines you manually do today, like turning the lights off and locking the doors when you go to bed at night.

*Amazon, Alexa and all related logos are trademarks of, Inc. or its affiliates.

Exterior Dimensions

Lock: 8 1/8 (H) x 3 (W) x 1 1/2 (D) in.

Inside Dimensions

Lock: 5 (H) x 3 (W) x 7/8 (D) in.

Battery Type


Battery Life

1 Year

Code Length

4 digits

Code Capacity


Door Thickness Minimum

1 3/8 in.

Door Thickness Maximum

1 3/4 in.



Door Handing

Left Hand, Right Hand

Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.

Door Stile Width

Minimum 3 1/2 in.


Front body: Weatherproof

Outside Operating Temperature Range

-22°F to 151°F (-35°C to -66°C)

Inside Operating Temperature Range

14°F to 120°F (-10°C to 49°C)

Locking Device


Lock Features

Remote Control, Z-Wave, Passage Mode, Built-in Alarm

Door Opening


Access Type

Keypad – Digits






Schlage C

ANSI Rating

Grade 1 (Best)

Wireless Protocol

Z-Wave, 900MHz


11 lbs


3 Year Electronics, Limited Lifetime Mechanical and Finish

Wireless Range

40 ft. (increase range with repeaters / mesh network)

Share your thoughts!

5 out of 5 stars

3 reviews

Let us know what you think...

What others are saying

  1. Rated 5 out of 5
    Works great

    Steve McDermott (verified owner)

    The product was easy to install. It works and looks great.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Rated 5 out of 5
    Great product, easy install

    Bates Don (verified owner)

    This fit perfect in place of what we had and setup was pretty easy. Took a little time to figure out how to set up from iPhone but the automation is new to me. Family loves it , especially not having to use a key. Highly recommend this product.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Rated 5 out of 5

    Caroline Jarvis (verified owner)

    I have loved having the keyless lock. The ability to give my daycare parents their own code (and set the times they are authorized to use it) has made my day to day operations easier as I can continue to complete tasks as others arrive. Parents seem to appreciate the added security yet freedom to come in as they need.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Answered by the admin
    Yes, we do have thick door kits that will allow you to install on a door up to 2 1/2 inches thick. For this specific setup, you will need the one for the deadbolt as well as one for the handle set.
  2. Answered by the admin Yes you can, please take a look at the Z-wave hub below for a remote option that does not have a subscription associated with it.
  3. Answered by the admin You will want the F93CAM716ACC. Please give our sales reps a call so they can assist with getting that ordered for you. They can be reached at 937-247-9327 option 1
  4. Answered by the admin Yes you can program the door to turn off the alerts as desired.
  5. Answered by the admin Door handing refers to the position on the door that the lock will sit and interface with the user. The best way to understand handing is to face the exterior portion of your door and look as to which side your hinges on the door reside. If the hinges are on the left then you have a left-handed door. It is most common when you go to pull down the lever on your door you use your left hand to complete this movement. If the hinges are on the right then the handing is right-handed. When choosing a lock design as the one listed it is important that these are understood because the locks come pre-manufactured with right or left handing.
  6. Answered by the admin

    With saltwater being as corrosive as it is it will eventually wear upon the finish. While we would not expect it to wear too quickly you will see a difference over the course of a few years.

  7. Answered by the admin

    No, the Schlage locks do not offer the smart keyways for re-keying. You would need to purchase a Kwikset lock and they will only work with other Kwikset keys.

  8. Answered by the admin

    Unfortunately with multi-point locking systems it will require a locksmith to alter the door in order to install the lock as this lock is not designed to work with multi-point systems.
