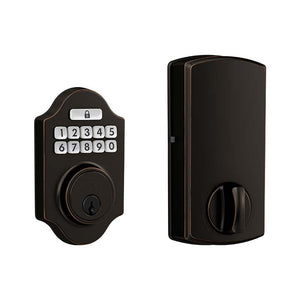

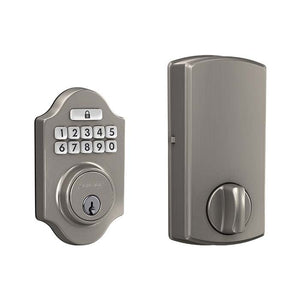

Schlage JBE109 BIL

Z-Wave Keypad Deadbolt

$163.27

Bye bye keys. The Schlage JBE109 Billows Trim Connected Keypad Deadbolt provides you with a convenient, easy to use keypad. Effortlessly secure and showcase your home with the simple, traditional design of the Billows trim. Access your lock from anywhere with Z-Wave Plus. No more hiding spare keys, just share up to 10 unique access codes with friends and family instead.

SKU: JBE109 BIL
Your Current Selections:
Your Current Selections:

For more information or ordering assistance, please call our Residential Product Specialists at 877-439-5377 ext 9005

  • Traditional style keypad deadbolt lock – also available in Gatlin trim and lever model
  • Z-Wave® Plus technology offers enhanced security and integration with select home automation systems
  • Saves up to 10 unique access codes
  • Uses 4-8 digit access codes
  • Backlit keypad with silicone buttons
  • One-Touch Locking
  • Offers added durability with premium metal interior
  • Withstands heavy-duty impacts
  • Installs in minutes with just a screwdriver
  • No hardwiring needed
  • Guaranteed to fit on standard doors
  • Meets all BHMA Grade 3 security and performance standards
  • Certified Commercial Grade 3
  • Limited lifetime mechanical, 5-year limited finish and 1-year limited electronic warranty

The Schlage JBE109 Billows Trim Connected Keypad Deadbolt gives you freedom from keys by providing you with a convenient, easy to use keypad. Access your lock from anywhere on-the-go using powerful Z-Wave Plus technology. Hiding or duplicating keys are a thing of the past, now you can share up to 10 unique access codes with friends and family. With the simple, traditional design of the Billows trim, you can secure your door with style! Say goodbye to flashlight fumbling to get in the door at night since the keypad is backlit. This deadbolt is built to withstand heavy-duty impacts, thanks to its premium metal interior. Arm yourself with only a screwdriver and you are all set to install this on your door in minutes, no hardwiring needed! No frills, no fuss, just the dependable locking power you’ve always trusted with Schlage locks.

Exterior Dimensions

4.41 (H) x 2.68 (W) x 0.83 (D) in.

Interior Dimensions

5.16 (H) x 2.68 (W) x 1.71 (D) in.

Door Thickness Minimum

1 3/8 in.

Door Thickness Maximum

2 in.

Door Handing

Non-Handed

Door Opening

Standard

Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.

Backset

2 3/8 to 2 3/4 in. adjustable

Code Length

4 to 8 Digits

Code Capacity

10

Wireless Protocol

Z-Wave Plus

Wireless Range

40 ft. (increase range with repeaters / mesh network)

Battery Type

4 AA

Battery Life

1 Year

Access Type

Key, Keypad – Digits

Deadbolt Throw

1 in.

Keyway

5 pin C

Locking Device

Deadbolt

Lock Features

Auto Relocking, Z-Wave Plus

Finish

Satin Nickel, Aged Bronze

Brand

Schlage Keypad Locks

Manufacturer

Allegion

Operating Temperature

-31° to 151°F (-35° to 66°C)

Environmental

Front body: Weather Resistant

Warranty

5 Year Finish, 1 Year Electronic, Manufacturer Limited Lifetime
