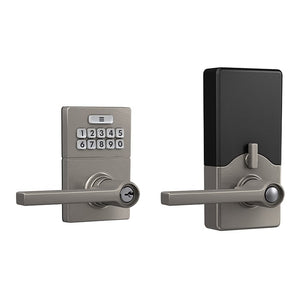

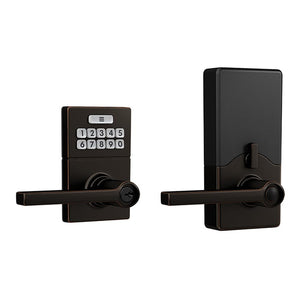

Schlage JFE105 GAT

Keypad Lever Lock


Bye bye keys. The Schlage JFE105 Gatlin Trim Keypad Lever Lock provides you with a convenient, easy to use keypad. No more hiding spare keys, just share up to 10 unique access codes with friends and family instead. Effortlessly secure and showcase your home with the modern design of the Gatlin trim.

Your Current Selections:
Your Current Selections:

For more information or ordering assistance, please call our Residential Product Specialists at 877-439-5377 ext 9005

  • Sleek modern keypad lever lock – also available in Billows trim and deadbolt model
  • Saves up to 10 unique access codes
  • Uses 4-8 digit access codes
  • Backlit keypad with silicone buttons
  • Offers added durability with premium metal interior
  • Withstands heavy-duty impacts
  • Installs in minutes with just a screwdriver
  • No hardwiring needed
  • Guaranteed to fit on standard doors
  • Meets all BHMA Grade 3 security and performance standards
  • Certified Commercial Grade 3
  • Limited lifetime mechanical, 5-year limited finish and 1-year limited electronic warranty

The Schlage JFE105 Gatlin Trim Keypad Lever Lock gives you freedom from keys by providing you with a convenient, easy to use keypad. Hiding or duplicating keys are a thing of the past, now you can share up to 10 unique access codes with friends and family. With the modern design of the Gatlin trim, you can secure your door with style! Say goodbye to flashlight fumbling to get in the door at night since the keypad is backlit. This lever lock is built to withstand heavy-duty impacts, thanks to its premium metal interior. Arm yourself with only a screwdriver and you are all set to install this on your door in minutes, no hardwiring needed! No frills, no fuss, just the dependable locking power you’ve always trusted with Schlage locks.

Exterior Dimensions

4.145 (H) x 5.339 (W) x 2.604 (D) in.

Interior Dimensions

5.702 (H) x 5.362 (W) x 2.76 (D) in.

Door Thickness Minimum

1 3/8 in.

Door Thickness Maximum

2 in.

Door Handing


Door Opening


Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.

Handle Type

Lever Handle Door Locks


2 3/8 to 2 3/4 in. adjustable

Code Length

4 to 8 Digits

Code Capacity


Battery Type

4 AA

Battery Life

1 Year

Access Type

Key, Keypad – Digits

Deadbolt Throw

1 in.


5 pin C

Locking Device


Lock Features

Auto Relocking


Satin Nickel, Aged Bronze





Operating Temperature

-31° to 151°F (-35° to 66°C)


Front body: Weather Resistant


5 Year Finish, 1 Year Electronic, Manufacturer Limited Lifetime

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Can I use this for a 2 1/4 inch thick door? answer now
    Asked by Yee-Mee Landry on July 15, 2022 11:15 PM

    The maximum door thickness the lock can support is 2 in.

  2. A

    This model does not require a deadbolt prep for installation or usage. Schlage offers a multitude of installation videos for their products at the link below!

    Schlage How-To Videos

  3. Q Hi can it be configured for right and left swing ? answer now
    Asked by Jaime on July 7, 2022 4:47 PM

    Yes, this lock is universally handed and will work with with either swing door.

  4. A

    By rotating the inside thumbturn to a vertical position, this will activate "passage mode" that will keep the unit unlocked for free entry.
