STRATTEC Advanced Logic RTS-PZ

PIN Lock with Z-Wave


FREE Software with purchase of any STRATTEC Advanced Logic Lock ($400 Value!)

The STRATTEC RTS-PZ provides an ideal solution for security-sensitive business and government environments. Z-wave allows remote access and retrieve audit logs. Easily set access control rights for each individual user and lock with fingerprint, PIN code, or a combination of both! Large user capacity and a built-in scheduling system round out this lock.

In stock

Your Current Selections:

For more information or ordering assistance, please call our Commercial Project Specialists at 877-439-5377 ext 9003

  • Non-Fingerprint Model, Fingerprint Model Available
  • Meets or exceeds Z-Wave Alliance requirements
  • 260FT wireless open-air range, this is double what other Z-Wave devices offer
  • Z-Wave Plus 5202 chipset with integrated Z-Wave controller – Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity
  • Mesh network extends range of other devices
  • Up to 1000 users per lock
  • 3 Authority Levels:  Administrator, Manager & User
  • Locks can be managed as a stand-alone unit or through your computer with optional MS1 software
  • First person in prevents doors from automatically unlocking at scheduled times even if personnel have yet to arrive
  • Capture, review, and transmit audit trail history
  • Easy to read and use inner and outer OLED screens
  • Weather resistant and rock solid construction; rugged, zinc cast enclosures
  • IP56 tested and dust proof design
  • Can be used with MS1 User Management software which allows you to administer an unlimited number of locks
  • Secure PIN Code access
  • Transfer and view audit trails to any authorized PC using USB
  • Lock Meets Grade 1 Standards, Backset 2-3/4 in, Grade 2
  • Battery Operation:  Requires 4 AA (sold separate)
  • FCC, CE, UL, ANSI, ROHS Certifications
  • ISO/TS, 16949, ISO 9001, ISO 14001 Compliant

MS1 Software Features (included)

  • MS1 User Management software for administration of the locks on your network
  • Capture, review, and transmit audit trail history
  • Scheduling: Create user specific lock schedules, and scheduled lock time. Does NOT support scheduled unlock (only used in atypical applications). Users with Administrator authority have access at all times
  • Holiday Mode: set up to 12 dates which will override regular unlock periods, keeping lock secure

*NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive


  • 2 Year Manufacturer Warranty

Z-Wave Static Controller (sold separately) required for MS1 User Management software Z-Wave connectivity

The RTS-Z is perfect for security-sensitive business and government environments. Easily set access control rights for each individual user and lock, then upload that data in seconds via USB drive. You can register users as fingerprint only, PIN-code only, or a combination of both on any lock or group of locks you define. The combination of large user capacity, audit trails, built-in scheduling system and weather-proof design makes this system unequaled in value compared to other products currently available.

The Z-wave chip inside the RTS-Z allows the lock to communicate with your computer and MS1 software for convenient remote access features*, including retrieving audit logs and remote lock/unlock. RTS Z-wave locks and MS1 software saves you time and money by reducing the amount of times you need to physically visit the lock.

RTS Series locks deliver uncompromising commercial-grade quality. This lock is a true workhorse, tested to over 2 million duty cycles. The RTS has a 3-hour UL fire-rated latch and a free-wheeling clutch. The outdoor portion is weather resistant, making it ideal for exterior applications.

*NOTE: At this time, lock programming and user management data must be physically transferred from MS1 software to lock via USB drive. Additional remote access features coming soon.

LAN or WAN Z-Wave Setup


The RTS lock series includes a removable rim cylinder in standard sizing. These locks can be adapted to use other keyways using a Small Format IC Housing Adapter.

Please Contact Us if you need more information or help ordering

STRATTEC Advanced Logic MS1 software is for use with RTS Series locks and is now included with every RTS lock. This software makes managing hundreds of users and locks simpler, and allows you to:

  • Manage users for one or more locks, including adding fingerprints*, PIN codes and all individual user permissions, allowed entry times and more
  • Query and analyze audit trails from any lock in your network
  • Backup and restore all of your lock databases
  • Edit global lock settings for each lock, including global access times
  • Allow each lock to have a different set of 1000 users and allows you to cut and past individual users or even groups of users to any lock in seconds
  • Control any number of RTS locks

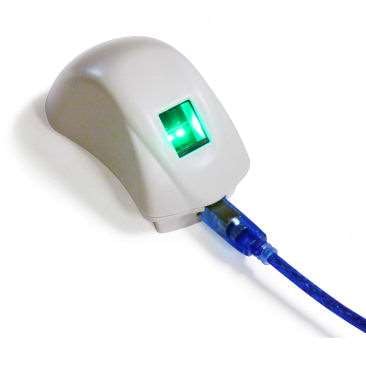

*RTS-D2300 Optical Scanner (sold separately) required for fingerprint enrollment

View this downloadable PDF for the full list of MS1 software features

NOTE: MS1 software is Windows only, NOT compatible with Apple iOS


9 1/2 (H) x 3 (W) x 1 1/2 (D) in.

Battery Type


Battery Life

1,800 Openings

Code Length

2 to 10 Digits



Door Thickness Minimum

1 1/2 in.

Door Thickness Maximum

2 in.



Door Prep

Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

Door Handing


Door Stile Width

Minimum 4 in.


Satin Chrome


STRATTEC Advanced Logic


STRATTEC Advanced Logic

Handle Type

Lever Handle Door Locks

Lock Features

Audit Trail, Remote Control, Scheduling, Z-Wave Plus

Door Opening


Access Type

Key, Keypad – Digits


Indoor/Outdoor, Weather Resistant

Outside Operating Temperature Range

-40°F to 150°F


Schlage SC4


Free-wheeling Clutch, Rugged Zamak 5 cast enclosure

ANSI Rating

Grade 2 (Better)

Fire Rating

UL 3 hr. Latch


8.8 lbs


2 Year Limited Manufacturer

Operating Humidity Maximum

5% to 95% RH non-condensing

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Is this weatherproof on both sides for outdoor use? answer now
    Asked by Jeff on June 23, 2022 10:45 AM

    Only the exterior portion is weather resistant. Installing outdoors like on a gate would not work.

  2. Q Will this lock work with Samsung SmartThings? answer now
    Asked by Amy on August 11, 2019 6:03 PM

    Unfortunately, no. This unit will only communicate with the Strattec MS1 software and Z-Wave static controller.

  3. Q Will this work with a Marks M9900 panic bar interior system? answer now
    Asked by Robert Atchison on June 6, 2019 3:43 PM

    No, this is not a panic bar lock. If you need a panic bar lock please contact our commercial sales department so they can help you choose the best lock for your needs.

  4. A

    Yes, but it must be the Westinghouse controller. You must purchase the Z-wave MS-1 software package with comes with that Z-wave controller.
