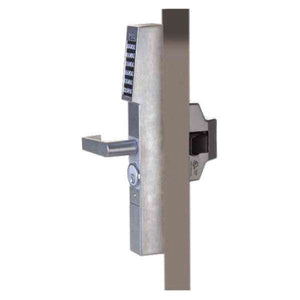

Trilogy DL1300ET

Aluminum Glass Door Keypad Exit with Audit Trail

$530.43

The Trilogy DL1300ET provides a keyless solution for your perimeter doors. This thoughtfully designed Trilogy push button lock with entry tracking, results in doors being locked down 24/7 with advanced security protection that eliminates the liabilities associated with doors not being locked.

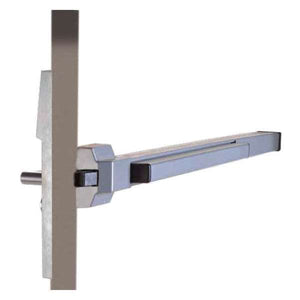

Panic bar/exit device sold separately.

SKU: DL1300ET
Your Current Selections:
Your Current Selections:

Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

  • Wire-free, heavy-duty electronic lock for narrow stile aluminum exit doors
  • Retrofits traditional keyed-in aluminum glass panic exit doors
  • Exit Device Compatibility:  Jackson 1095 (must use DL1325, DL1350), Von Duprin 33, Dorma 5300, Arrow S4803, DCI 1200, DCI 1300, & Corbin ED7000, ED4000. (NOTE: With Von Duprin devices, the DL/PDL1200/1300ET only works on a RHR door. On a LHR door the lever must be lifted for it to operate.  Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob) (You may use your own bar, or purchase one from us at checkout – we offer the Von Duprin 33 and Arrow S4803 models for narrow stile doors)
  • Sold as outside trim only. (Panic bar not included)
  • Must purchase separate TP assembly; compatible tailpiece that connects the DL1300ET to your existing bar.  (Order TP Kit separately at checkout)
  • Field proven familiar Trilogy name
  • 2000 user capacity
  • Program at lock, or using Windows PC based software
    • Must purchase the PC interface cables at checkout in order transfer your user data to the lock and download and review your audit trail.  (software CD included with purchase of cables, or can be downloaded from Alarm Lock website)
  • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
  • Multi-level user setup:  Master, Manager, Supervisor and Basic Users
  • Program one-time entry codes, quick passage mode, passage mode, emergency and service codes, and lockout codes
  • WeatherPROOF performance
  • 3-15 seconds allowable entry time, user defineable – how long user has once they enter pin before door relocks behind them
  • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
  • Audit Trail with Time/Date Stamp for a printable record of all electronic activity – use the DTM hand held or a laptop computer to download audit trail data from lock (PC and DTM interface cables required – available at checkout)
  • Real-time clock allows logging of events to within 1 second of accuracy
  • Simple do-it-yourself installation; instructions included
  • Long battery life; uses 2 standard off the shelf lithium 3V batteries, included
  • Visual and audible low battery alerts
  • Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
  • 2-year manufacturer warranty

GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

Perimeter protection has never been easier! No more left open or propped open doors!  An effective deterrent against theft.  This well designed Trilogy push button lock with entry tracking results in doors being locked down 24/7, and creates a strong barrier against internal shrinkage.  Using unique codes for entry, you also save time not having to distribute keys when you bring on a new hire, as well as save time not having to collect keys when an employee leaves.  With theft being among the top concerns for business owners, security officers, and facility managers, it’s crucial the necessary steps are taken to strengthen security.  Until now, extra measures that enhance security have meant a reduction in workforce convenience.  That’s why Trilogy locks are the perfect solution.  Advanced security protection that eliminates the liabilities associated with doors not being locked, combined with keyless access, enables workers to come and go safely, and quickly, all the while getting more done.

Dimensions

14 3/8 (H) x 1 5/8 (D) x 1 3/4 (W) in.

Battery Type

3-Volt CR123A Lithium

Battery Life

80,000 Cycles

Code Capacity

2,000

Code Length

3 to 6 Digits

Timed Entry Allowance

3 to 15 sec.

Event Audit Trail

40,000

Event Scheduling

500, Automated Unlock/Lock

Construction

Vandal Resistant, Zinc Alloy

Environmental

Weatherproof

Outside Operating Temperature Range

-31° to 151°F (-35° to 66°C)

Door Handing

Reversible

Door Prep

Through-Bolt Hole(s)

Door Stile Width

Minimum 2 in.

Manufacturer

Alarm Lock

Brand

Alarm Lock Trilogy

Lock Features

Audit Trail, Passage Mode, Scheduling, Timed Codes

Handle Type

Lever Handle Door Locks

Locking Device

Panic/Exit, Exit – Rim

Door Opening

Narrow Stile

Access Type

Key, Keypad – Digits

Key Override

Yes

Keyway

Schlage SC1

Weight

6.75 lbs

Warranty

2 Year Manufacturer

Authentication

Single Factor

Door Thickness Minimum

1 3/4 in.

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*

*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours:  M-F 9am-5pm EST

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.

×

Login

Register

Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Answered by the admin

    Yes! When managed with the DL Windows software, you can set user codes in your lock that when entered will leave the door unlocked with no PIN codes needed to open the door. When the code is entered again the lock will return to it's normal locked state, requiring a valid PIN code to open.

  2. Q Will this fit a Jackson 1085 door? answer now
    Asked by Jim Turner on December 6, 2021 9:30 PM
    Answered by the admin

    This will depend on the deadlatch that is being used with the Jackson 1085 as the 1085 does not have a built-in latch. This is typically used in place of the interior exit paddle or lever. If the Jackson 1085 is latching the door via vertical rods, this lock will not have the ability to operate them. If this is being used with a Jackson 1095 (that has a built-in latch), you will need either the Trilogy DL1325ET or the DL1350ET model as the standard DL1300ET lever does not offer enough rotation to fully retract the latch.

  3. Q What's the difference between this and the regular Trilogy DL1300? answer now
    Asked by kevin kunkel on October 21, 2021 9:24 PM
    Answered by the admin

    The DL1300ET is designed to work with a push bar/exit device on the interior side of the door. The standard DL1300 is designed to work with a narrow-stile deadlatch and will typically use a lever or paddle on the interior side of the door.

  4. Q Can this be used for a glass door in a Std frame without drilling? answer now
    Asked by Don clover on October 20, 2021 9:22 PM
    Answered by the admin

    This lock is designed for glass entry doors but will require holes to be drilled for the mounting screws.
