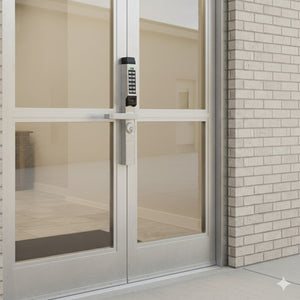

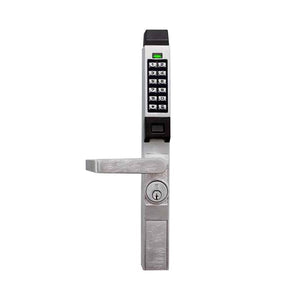

Trilogy Networx PDL1300NW

Narrow Stile Digital Lock

Reviews (1) | Customer Questions (14)


A slim lock big on features with proven Alarm Lock durability. Trilogy Networx removes the hassle of physical lock access for audit trails, programming, and unlocking your door, saving you valuable time and money. Existing lock features are expanded through Networx, allowing for remote access capabilities such a system-wide free-passage mode, 10 second emergency global lockdown, key fob lock control and more.

SKU: PDL1300NW/26D1
Your Current Selections:

Need assistance or have questions? Call our Cabinet Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!

Need assistance or have questions? Call our Commercial Product Specialists at 877-439-5377 for more information and ordering assistance. We’re here to help!


  • Pushbutton digital security-keypad
  • HID card reader; reads any HID 125kHZ prox cards
  • Battery Operation; Includes 4 AA batteries
  • Low battery audible and visual alerts
  • Commercial grade durability in a keyless entry system requiring no wiring
  • Retrofits traditional keyed-in aluminum store doors with Adams Rite 4510, 4900 Series, 1850, 1950, 4710, and 4730 locks
  • Outside trim only; inside exit paddle and deadlatch available at checkout
  • Program at lock or through Networx
  • Field proven Trilogy name; ensures long life and reliability
  • Enrolled users gain access by card only, PIN only, or highest security – card + PIN
  • Real-time clock lets you scheduled up to 500 timed events, including Holiday schedules.  Program lock to auto lock at certain times, or auto-unlock.  Program times when certain users or groups of users can gain access
  • Card data added to the lock via the lock itself, card reader module (see AL-PRE below), or PC (personal computer)
  • 2000 User Codes including and up to 5,000 through Networx (see below): Master, Manager, Supervisor and Basic Users
  • Program passage mode, emergency and service codes, group-lockout, and group-enable codes.
  • Weatherproof performance
  • Proximity antenna housing molded of ultra high strength, impact resistant Lexan
  • Real Time Clock Allows logging of events to within 1 second of accuracy
  • 40,000 Audit trail event log
  • Key override; includes a 1 3/8″ long mortise cylinder from the manufacturer and 2 keys.  All mortise cylinders are interchangeable so if you have a name brand one you want to use you can, or we sell name brand ones.  Please call us at (877) 439-5377 for custom cylinder orders
  • 2-year manufacturer warranty
  • Built-in prox reader, supports up to 2000 users with HID Prox ID cards or fobs or 3-6 digit PIN codes
  • Easy Tap and Add batch prox ID card enrollment mode allows many cards to be quickly added without PC – also downloadable from PC or prox enroller tool
  • 40,000 event time/date-stamped audit trail by user
  • 500 event schedule/real time clock (e.g. lock/unlock by time)

Trilogy Networx

  • Communicate wirelessly via Ethernet, Bluetooth LE or 802.11B/G – eliminating door-to-door programming and audit trail retrieval and network-wide emergency lockdown features
  • Unsurpassed 5-year+ battery life, typical
  • Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications
  • In 10 seconds, activate emergency global lockdown from the Networx PC, any Networx lock or Keyfob RR-4BUTTON
  • System-wide free-passage enable or disable
  • Locks support up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series also support prox ID card users
  • On demand, in seconds, wirelessly change users, schedules, lock features or retrieve audit trails of up to 40,000 events/lock from any networked PC
  • Unattended programming updates or event log retrievals can be scheduled, saving manpower and productive time
  • Seamless upgrade path for original Trilogy users – intermix with existing Trilogy standalone lock installations and share the same DL-WINDOWS database
  • Secure 128bit AES PC encryption and proprietary RF-link lock communication encryption
  • Remote System Management – VPN-connection/remote capability for accessing the Networx system and controlling 63 locks on a single gateway to a maximum of 2000 locks with 32 gateways
  • Wireless locks are fully keypad programmable and can be up and functioning before their wireless network is configured – IT departments don’t have to coordinate with physical security or locksmiths
  • Free Alarm Lock DL-WINDOWS software doesn’t require a dedicated computer, special computer network, or costly server software licenses – it simply runs as a secure Microsoft Windows-based application

Requires a Networx Gateway for remote and wireless Networx features

Alarm Lock doesn’t make anything second rate, including this new Networx equipped proximity card/pin activated lock for aluminum narrow-stile doors. If you own or manage a fitness center, storefront, strip-mall, or office building it’s time to stop spending time and money tracking keys, re-keying and replacing inferior locks with other inferior locks. Invest in this state-of-the-art, keyless entry system which pays you back each time you avoid a call to the locksmith. Wirelessly access lock features through Trilogy Networx, such as audit trails, scheduling, user management, passage mode, and the 10 second global emergency lockdown, right from your desktop or laptop. This commercial grade system mounts to your door right from the box by drilling a few extra holes. If you’re comfortable putting a door knob in at your home, you can handle this with ease. The proximity cards (ordered separately at checkout) use a contactless technology – a small antenna resides in the card and your user simply waives the card near the black proximity reader on the lock to gain access. This innovative design makes it cleaner and more durable than a swipe reader. The PDL1300NW is a must for any business with aluminum frame glass entry doors.

Requires a Networx Gateway for wireless Networx features


15 1/4 (H) x 1 5/8 (D) x 2 1/4 (W) in.

Door Thickness Minimum

1 3/4 in.

Battery Type

4 AA

Battery Life

5 Years, 65,000 Cycles



Code Length

3 to 6 Digits

Code Capacity


Timed Entry Allowance

3 to 15 sec.

Event Audit Trail


Event Scheduling

500, Automated Unlock/Lock


Vandal Resistant, Zinc Alloy



Outside Operating Temperature Range

-31° to 151°F (-35° to 66°C)

Door Handing


Door Prep

Through-Bolt Hole(s)

Door Stile Width

Minimum 2 in.


Alarm Lock


Alarm Lock Trilogy

Lock Features

Audit Trail, Lockdown, Passage Mode, Remote Control, Temporary Codes, Timed Codes

Handle Type

Lever Handle Door Locks

Door Opening

Narrow Stile

Locking Device

Adams Rite

Access Type

Key, Keypad – Digits, Proximity Card/Fob


1 1/2 in., 1 1/8 in., 31/32 in.

Key Override



Schlage SC1

Wireless Protocol

IEEE 802.11b/g

Wireless Range

Up to 328 ft. indoors

Reader Type

Prox Card/Fob

Radio Frequency

125 kHz, 900MHz


7 lbs


2 Year Manufacturer


*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours:  M-F 9am-5pm EST

Share your thoughts!

4 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. One person found this helpful

    No need for a gateway

    Brad Freudenberg (verified owner)

    Regardless of what the sales guy tells you, you don’t NEED a gateway. This can be programmed locally, and it’s pretty easy for a handful of users. If I was managing more than 15 users, I’d probably spend the extra money for the gateway. But for my 7 users, this was easy to handle without spending the extra cash.

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. A

    Yes! When using the PDL1300NW you may program an auto unlock/lock schedule using the keypad, or by programming it using the DL Windows software with a wireless Networx gateway.

  2. A
    • This depends on what Adams Rite hardware you currently have installed. For this, we recommend contacting our experts at 937-247-9327 so we can verify if what you have will work with this product.
    • With a Networx Gateway you will be able to update the programming straight from your PC that has the DL Windows database, and adding in a remote lock/unlock product such as the RR-1 Button or RR-4 Keyfob will allow you to command the door's state up to 100 feet away!
    • Once these products are purchased and installed, there are no additional fees!
  3. A

    This can be used as a replacement but you will need to drill new mounting holes to properly mount the PDL1300NW.

  4. Q How do I get replacement parts? answer now
    Asked by Nichole on October 27, 2021 6:32 PM

    Common replacement parts can be found on our website. If you are not able to find the exact part needed, please contact our sales staff at 937-247-9327, option 1.

  5. A

    It certainly can! Rather than needing a separate receiver, the remote will simply pair with the locks internal radio to operate the device.

  6. Q Is the Owner's Manual available anywhere online? answer now
    Asked by Rebecca Martin on January 7, 2020 9:44 AM

    Please see the link below to download a copy of the programming manual. If any other information is needed, please feel free to contact our support staff at [email protected].

    PDL1300NW Programming

  7. Q will this work with any 125KHz FOB? answer now
    Asked by Tim on April 17, 2019 2:33 PM

    It will work with a wide variety of 125khz prox cards. We would recommend that you speak with our commercial sales staff to ensure that you choose the best product for your needs.

  8. Q Is it possible to use phone apps to open door? answer now
    Asked by Raymond To on March 29, 2019 4:21 PM

    No, these are commercial locks and they do not use app-based software.

  9. Q Does with reader have a wiegand output? answer now
    Asked by Ryan on March 15, 2019 4:47 PM

    No, this is not a hardwired item and cannot be wired to a panel or wirelessly connected to another system.

  10. A

    No, at this time it is not a remotely accessible system with alerts to outbound products.
