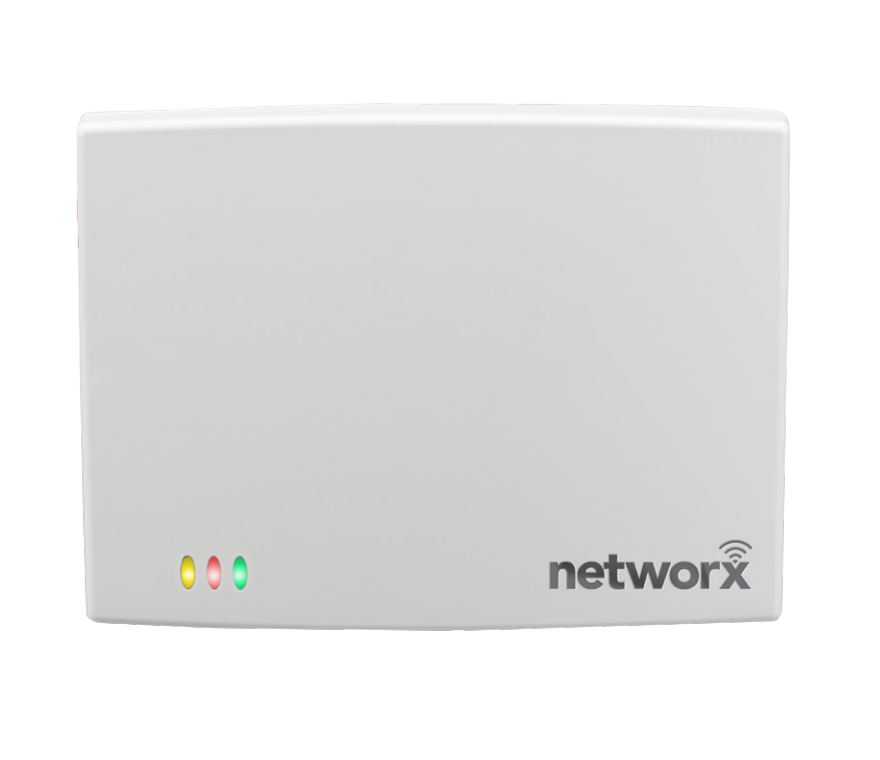

Trilogy Networx AL-IM3-POE

Name: Trilogy Networx AL-IM3-POE
SKU: AL-IME3-POE
Price: 493.26 USD
Availability: InStock

Generation 3 POE Gateway

SKU: AL-IME3-POE

The Trilogy Networx AL-IM3-POE is a Gateway device used within the Trilogy Networx™ wireless system. Combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with a single IP address. Installation is simple, only requiring access to one RJ-45 Ethernet network cable for both communication and power.

$575.00 $493.26 SAVE 14%

Price includes a manufacturer surcharge due to tariffs effective May 1, 2025

Features
Description
Specifications
Trilogy Support

Generation 3 Gateways are compatible with DL-WINDOWS version 5.5.4 and later only
Generation 3 Gateways can be mixed into an existing system that includes older “non-version 3” gateways

Features

Network gateway for Networx lock systems
Power-over-Ethernet (POE) gateway – no power supply or adapter needed

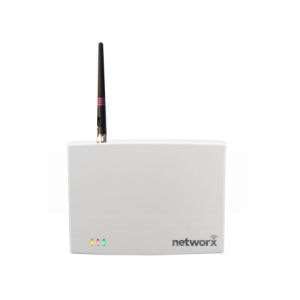

Expand your Networx lock system with up to 7 Expanders (AL-IME2-EXP) – Note expanders cannot communicate with older Gen 1 Gateways
Mount within 175 feet* (radially) from the intended wireless lock location(s)
Expanders should be mounted in elevated areas** – recommended mounting position 6 to 12 in. below standard 8-9 foot ceiling
Cost-effective and easier to wire than conventional gateways
Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
Each Gen. 3 Gateway and a maximum of seven (7) Expanders can be addressed as one group
Total of 99 addressable groups supported (addressable by two rotary switches)

*Open areas increase range while concrete building construction, walls, ceilings and narrow corridors decrease range
**Drop ceiling installation not recommend, signal strength may be affected

NEW for Generation 3

Optional hardwired switch that connects directly to the gateway to initiate global lockdown

With all the features and functionality of the above, AL-IM3-POE (Power Over Ethernet) Hardwired Gateway interfaces Networx locks with a PC network with hardwire Power-Over-Ethernet. Gen 3 Gateways require DL-WINDOWS version 5.5 + , support up to 7 of the same AL-IME2 Expanders (which extend the range up to 100 feet) ; 3 LED indicators display Gateway's operational status..

Basic

Manufacturer	Alarm Lock
Ethernet	100Base-TX (Using RJ-45 Jack), 10Base-T
Power	POE
Radio Frequency	900MHz
Warranty	2 Year Manufacturer
Brand	Trilogy Networx

Door requirements

Security

Wireless Protocol	DHCP, TCP/IP, UDP/IP

Dimensions

Dimensions	4.5 (H) x 6.0 (W) x 1.94 (D) in.
Storage Temperature Range	-40° to 185°F (-40° to 85°C)
Weight	0.5 lbs

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours: M-F 9am-5pm EST
