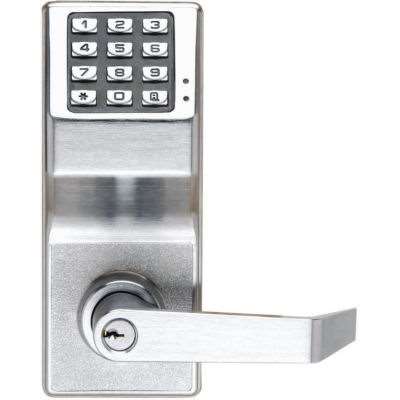

Trilogy T2 DL2700, DL2700WP

Digital Commercial Keypad Lock


Trilogy T2 secures areas where removable data end points can easily be stolen because a door was left open or key was compromised. A lock for life, Trilogy addresses the problems with keys and unlocked doors and makes legacy locks seem so old-school.

SKU: DL2700
Your Current Selections:
Your Current Selections:
  • Heavy Duty, BHMA Grade 1 security door lock with UL 3 hr. fire rated cylindrical latch
  • Field reversible full size ADA lever
  • Perfect for wood and metal doors (or as a gate lock – mounting box sold at checkout) – installation screws for both included
  • Fingertip programming done at keypad
  • Rugged clutch mechanism insures long life & durability
  • Accommodates 100 Users with 3-6 digit PIN codes, including: Master, 10 Manager codes, 90 User codes, and 3 Service codes
  • Auto-locking, but may be programmed to passage mode
  • Always an instant, panic free exit with inside lever
  • New!  Remote Release Kit for ‘Buzz-In’
  • Choose from multiple architectural finishes
  • Easy to install.  Retrofits most cylindrical locksets and digital locks
  • Key Override:  Includes 6-pin standard cylinder with a Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
  • Battery operation:  5 AA’s; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
  • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
  • Base Model p/n:  DL2700/26D
  • 2 Year manufacturer warranty

GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year. Alarm Lock's most popular commercial pushbutton lockset installed in schools, retail stores, airports, offices, and hospitals.  Wire-free, and vandal proof, the auto-locking Trilogy DL2700 keyless access system is available in indoor and also weatherproof DL2700WP outdoor models.  This Trilogy electronic lock accommodates up to 100 users and features an all metal keypad with a 12 button operational interface.  Paying for re-keying, lockouts, and new keys all adds up.  With more capability and more convenience, a Trilogy keyless lock improves your security and your bottom line. Need this lock with Audit Trail?  Check out Trilogy DL2800
Exterior Dimensions

8 (H) x 3 1/4 (W) x 1 7/8 (D) in.

Inside Dimensions

8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in.

Door Thickness Minimum

1 5/8 in. (Other thicknesses available, call 937-247-9327)

Door Thickness Maximum

1 7/8 in. (Other thicknesses available, call 937-247-9327)

Code Length

3 to 6 Digits

Code Capacity


Battery Type


Battery Life

120,000 Cycles

Door Handing


Door Prep

Standard 2 1/8 in. Cross-Bore, Through-Bolt Hole(s)

Door Stile Width

Minimum 4 1/2 in.


2 ¾

Outside Operating Temperature Range

+151°F ~ -31°F


Alarm Lock



Lock Features

Passage Mode

Handle Type

Lever Handle Door Locks

Door Opening


Locking Device

Cylindrical Latch

Access Type

Keypad – Digits


Schlage C

BHMA Rating

Grade 1 (Best)


7.5 lbs


2 Year Manufacturer

Share your thoughts!

4.73 out of 5 stars

41 reviews

Let us know what you think...

What others are saying

  1. Stephen Bell (verified owner)

    Used it for the first time in our office, great lock, easy to use. Going to buy again!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Great Lock - Very Satisified

    Scott Sutton – The Club at Sunrise (verified owner)

    We installed these excellent locks on our Golf Course Restrooms. They are made very durable and work like a charm. NO MORE KEYS – Yeahhh

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Good lock

    A. Gomez (verified owner)

    I installed those on metal doors, so I required help from a professional to do it correctly. The configuration is easily explained in the booklet. It’s a great lock for different codes, users, etc. Recommended.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. This is a great lock

    Noah Crissman (verified owner)

    We upgraded our basic Lowe’s residential level lock to this lock. We are extremely happy with this purchase. The different features are really helpful. Installation was breeze and while more than we anticipated easier than expected after our first glance. The original set up programming gave us a little trouble, but we feel that it was user error.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. My Barn

    Monty (verified owner)

    I purchased this product because of fear of theft in my barn. During this crazy time of people being layed off work theft will go up. This lock has given me peace of mind.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Lawrence Price (verified owner)

    installed easy enough, its working well, the true test will be when it get really cold (we’re in Alaska)

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. Very satisfied!!

    Brian In Maine (verified owner)

    I wanted to use this for added security on a new building. I gave the contractors different codes to enter the building and then expired them as their work was complete. I plan on doing the same thing with employees.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. RayMan (verified owner)

    After the installation we were asked if it had audit capabilities.
    Which of course that was another model.
    Other than that quite satisfied.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. Quality seems nice. Maybe overpriced

    Travis (verified owner)

    More software features than an older version of the same model I have. Moderately secure lock. Weakness is probably the pins/tumbler as with any Schlage lock.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. Excellent for use on a server room door

    Marc Ferrelli (verified owner)

    This lock is installed on a server room door. The installation can be a bit challenging but the programming and operation are great once you have the lock installed.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Answered by the admin

    That is correct! The handles and latch are field reversible and can be rotated to face either direction.

  2. Answered by the admin

    The DL2700 programming manual can be found by using the link below!

    DL2700 Programming

  3. Answered by the admin

    This lock can be set to remain unlocked to allow passage without the use of a code. However, this can not be scheduled to happen automatically on the DL2700 (the lock will need to be manually put into and taken out of passage mode). If you would like to schedule unlock periods where the lock will automatically unlock and relock at specified times throughout the week, you will need the DL2800 or above.

  4. Q Is there an option for a knob instead of the lever? answer now
    Asked by Sean on March 27, 2021 8:31 AM
    Answered by the admin

    This model is available with the standard lever or the Regal (curved) lever. Unfortunately, there is no knob option.

  5. Answered by the admin

    The IC core version of the DL2700 can be found here: Trilogy DL2700IC

    The lock can be prepped for Best and Equivalents, Yale, Medeco, Corbin, Schlage, and Sargent SFIC cores.

  6. Q How do you change the battery? answer now
    Asked by Betty Meyer on January 28, 2021 11:39 AM
    Answered by the admin

    To Change the Batteries on the DL2700:

    1. Remove the screw securing the battery door on the interior side of the lock. The battery door should lift away
    2. Pull out the white battery pack and unplug the white connector to disconnect it from the lock.
    3. On the top side of the battery pack, remove the 4 Phillips head screws to open the pack. You may need to remove a portion of the security tape to lift this cover away.
    4. Once open, exchange the 5 AA batteries inside. Reattach the cover and reapply the 4 screws to hold the pack together.
    5. Plug the battery pack back into the white connecter and place the pack back into the lock. Reattach the metal battery door to secure it into place.

    Please avoid pressing any buttons on the lock keypad while the battery pack is unplugged as this can cause the lock to reset back to factory defaults, erasing any programming currently in the door.

  7. Answered by the admin

    To add a new User Code on the DL2700, you will want to follow the steps below!

    1. Enter your current master code and wait for the green light
    2. Press A and enter the next available location number of the code that you wish to enroll followed by A
      1. If this lock was reset, you can use location 01 as your first available slot.
      2. For example; A - 02 - A
    3. Enter your desired user code. This code must be the same length as the current master code.
    4. The lock will beep 6 times to acknowledge that the code was enrolled successfully before the device locks.
  8. Answered by the admin

    The lever is free wheeling when locked. It can still be rotated up and down but will not retract the latch.

  9. Q How can I reset a code if I have forgotten the old code? answer now
    Asked by Chris on December 30, 2020 10:57 AM
    Answered by the admin

    If the current master code is forgotten, the best way to reprogram the lock would be to perform a factory reset. This will erase all codes from the lock and revert the master code to "12345".

    To Reset the DL2700:

    1. Disconnect your battery.
    2. Hold down the "5" button for 10 seconds
    3. Reconnect your battery.
    4. You'll hear a beep after you reconnect the battery. Immediately after hold down the "A" button until you hear a slow steady beep, then release. The lock will beep a few more times to complete the sequence.
    5. Once the lock has been reset, your master code should default to "12345".

  10. Answered by the admin

    For the Trilogy DL2700 model, you could certainly use the indoor version for this application. We recommend the weatherproof model for doors that have heavy rainfall or ones that are near high salt/moisture environments.
