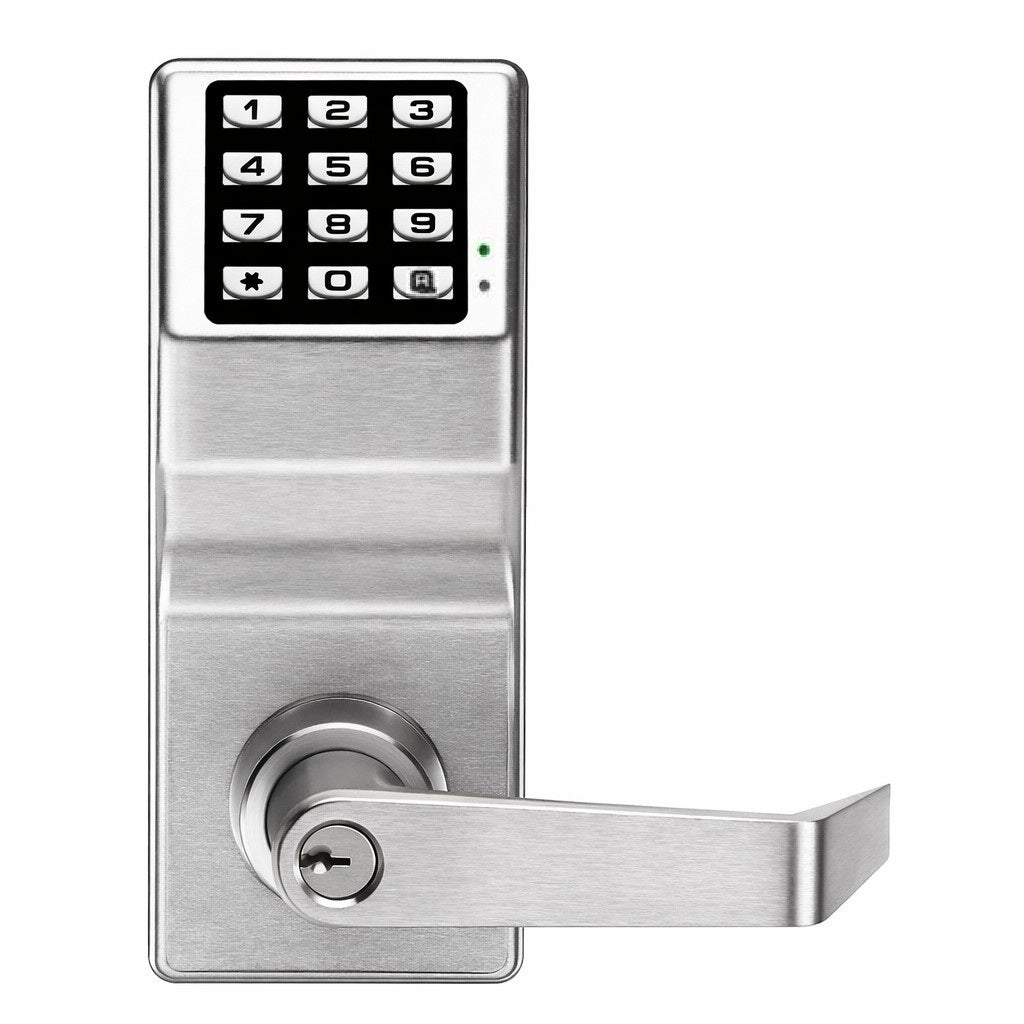

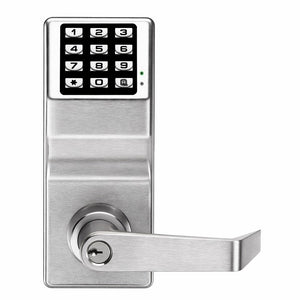

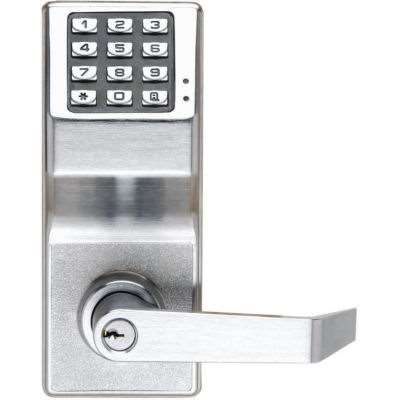

    Trilogy T2 DL2700, DL2700WP

    Digital Commercial Keypad Lock

    SKU: DL2700/26D

    Alarm Lock Trilogy



    Trilogy T2 secures areas where removable data end points can easily be stolen because a door was left open or key was compromised. A lock for life, Trilogy addresses the problems with keys and unlocked doors and makes legacy locks seem so old-school.

    Environmental
    Finish

    In Stock

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $86.18

    • Heavy Duty, BHMA Grade 1 security door lock with UL 3 hr. fire rated cylindrical latch
    • Field reversible full size ADA lever
    • Perfect for wood and metal doors (or as a gate lock – mounting box sold at checkout) – installation screws for both included
    • Fingertip programming done at keypad
    • Rugged clutch mechanism insures long life & durability
    • Accommodates 100 Users with 3-6 digit PIN codes, including: Master, 10 Manager codes, 90 User codes, and 3 Service codes
    • Auto-locking, but may be programmed to passage mode
    • Always an instant, panic free exit with inside lever
    • New!  Remote Release Kit for ‘Buzz-In’

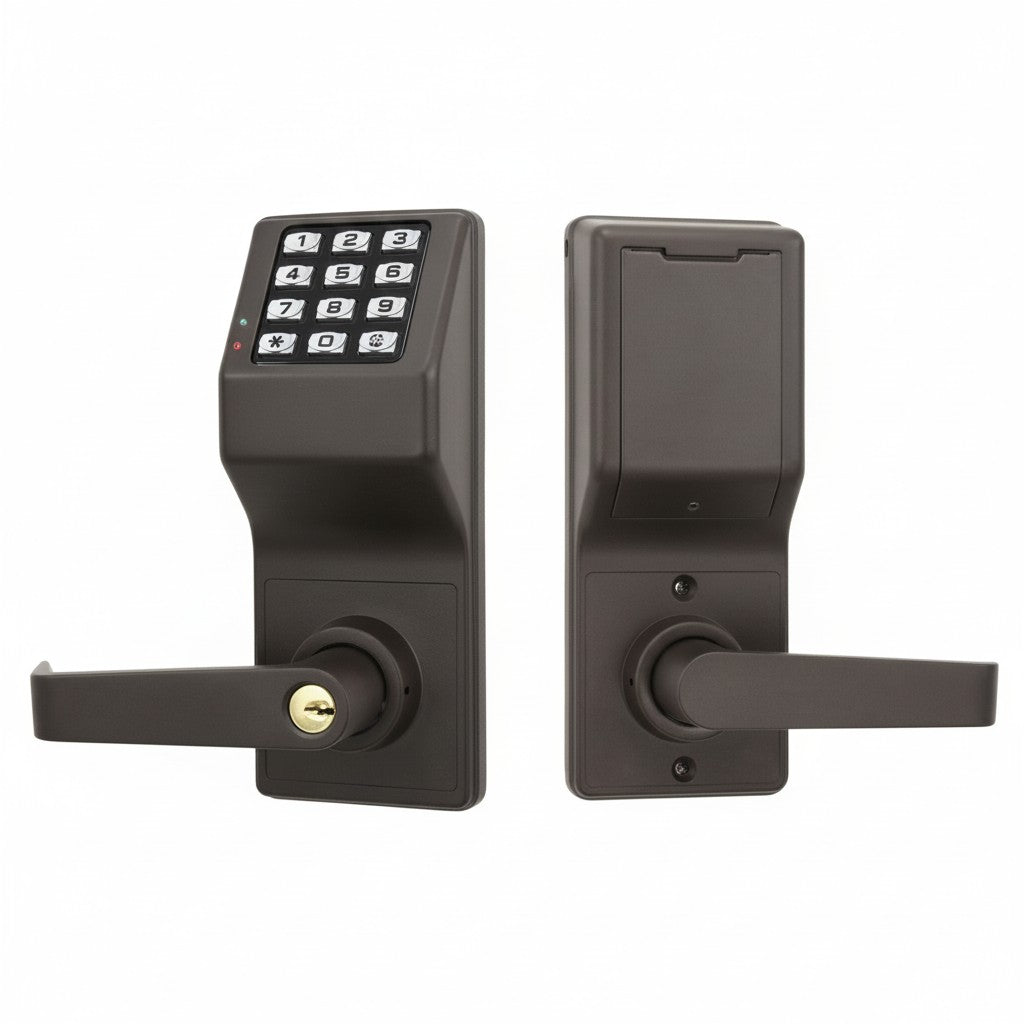

    • Choose from multiple architectural finishes
    • Easy to install.  Retrofits most cylindrical locksets and digital locks
    • Key Override:  Includes 6-pin standard cylinder with a Schlage SC1 keyway.  You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
    • Battery operation:  5 AA’s; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • Base Model p/n:  DL2700/26D
    • 2 Year manufacturer warranty

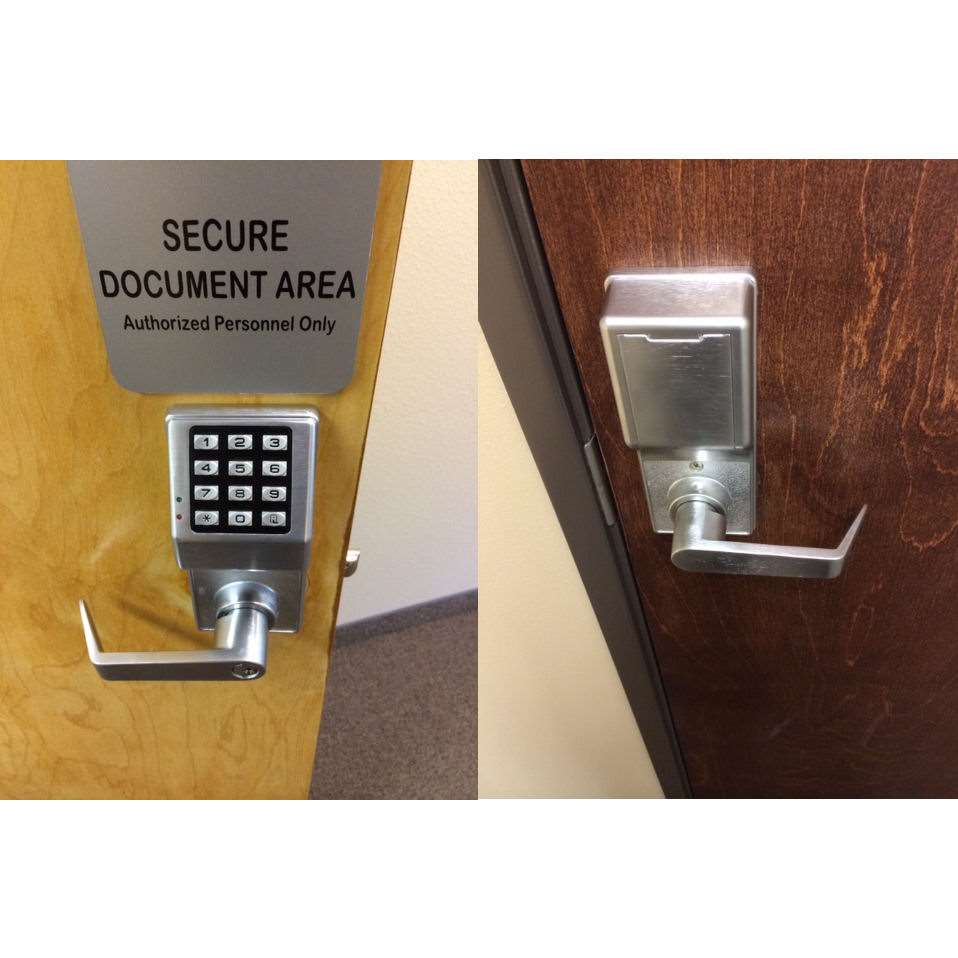

    Alarm Lock’s most popular commercial push-button lockset installed in schools, retail stores, airports, offices, and hospitals.  Wire-free, and vandal proof, the auto-locking Trilogy DL2700 keyless access system is available in indoor and also weatherproof DL2700WP outdoor models.  This Trilogy electronic lock accommodates up to 100 users and features an all metal keypad with a 12 button operational interface.  Paying for re-keying, lockouts, and new keys all adds up.  With more capability and more convenience, a Trilogy keyless lock improves your security and your bottom line.

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Keyway Schlage C
    Lock Features Old Passage Mode
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 120,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 100

    Dimensions

    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 7.5 lbs
