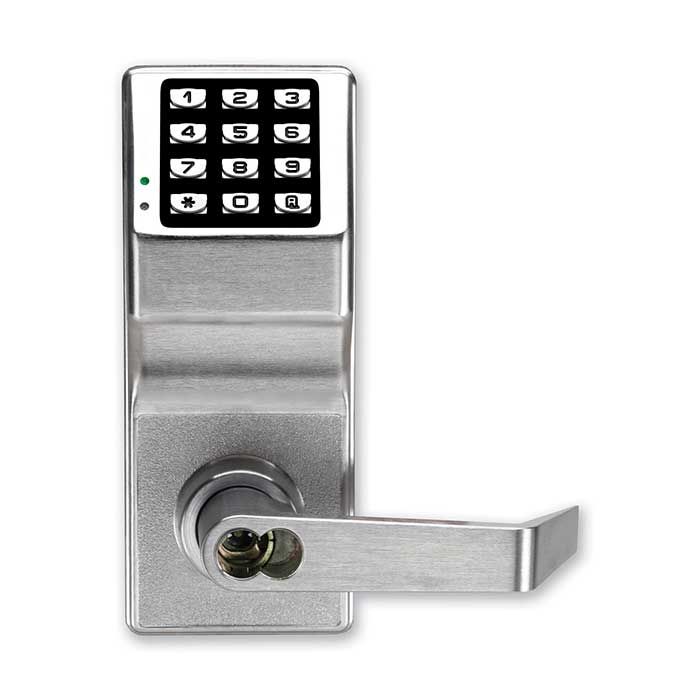

  • Trilogy DL5200IC

    Rugged Double-Sided Keypad Entry Lock

    SKU: DL5200IC/26D

    Alarm Lock Trilogy

    The Trilogy DL5200IC provides keyless, controlled access on both sides of the door. Capable of accommodating multiple users. Trade your keys for codes and manage users from the door in seconds. Suitable on gates and openings where dual sided control is needed. Deter theft and ensure doors are always locked. Prepped for IC core, including Best and equivalents, Yale, Medeco, Corbin, Schlage, and Sargent.

    Key Override

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Heavy Duty, BHMA Grade 1 lock with UL 3 hr. fire rated cylindrical latch, and prepped for IC core
    • Keypad Programming (on primary side of door)
    • Vandal-resistant construction with an all metal keypad.  Rugged clutch mechanism insures long life & durability
    • Choose from 3 architectural finishes –  premium finishes may be subject to lead time, including; bright brass (US3), duranodic (US10B)
    • Weatherproof performance
    • New!  Remote Release Kit for ‘Buzz-In’
    • Accommodates 100 users with PIN codes of 3-5 digits in length.  Millions of possible codes.  Program in  Master, Manager (up to 10), User, and up to 3 one-time use codes
    • Individual, group, or total user lockout codes
    • 2 wire remote capability (i.e., secretary desk button) – remote release button and wiring not included.  We have a reliable desk release button here
    • Battery Operation:  5 AA’s; appx. 80,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
    • Easy to install.  Retrofits cylindrical locksets
    • Visual and audible entry and egress indicators
    • Key override:  Prepped for IC Core including Best and Equivalents (Arrow & Falcon).  IC cores must be purchased separately at checkout.  You may use your own IC cores when you have them. Primary door side core will lock and unlock your DL5200. (your core on secondary side is used solely to gain access to battery compartment)
    • Commercial 2 3/4″ backset included (2 3/8″ available at checkout) – How do I measure?
    • Two (2) year manufacturer warranty

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Eliminate keys and ensure doors are always locked with the new Trilogy DL5200IC double-sided lock prepped for IC core by Alarm Lock.  It is ironman tough, and capable of accommodating multiple users.  You will use it on gates, and openings where you need to control access on both sides of the door, such as jet-ways and police interrogation rooms.  This powerful electronic door lock lets you issue codes instead of keys.  You will even be able to delete users from the door in seconds.  A new electronic smart lock like the DL5200IC is also a strong first-line-of-defense against private, or sensitive information being stolen or compromised.  Since user’s don’t have to worry about locating and taking their keys with them each time they leave, the likelihood of doors being left open or propped open is virtually eliminated.  If you add up the time spent issuing and tracking keys, and the expense of re-keying and changing out locks, not to mention liability costs, you will see the Trilogy DL5200IC quickly pays for itself.

    Perfect for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms, psych and Alzheimer areas, and more!


    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Old Double-Sided, Passage Mode
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 80,000 Cycles
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)


    Code Length 3 to 6 Digits
    Code Capacity 100
    Fire Rating UL 3 hr. latch


    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Inside Dimensions ["8 (H) x 3 1/4 (W) x 1 7/8 (D) in."]
    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 4 1/2 in.
    Exterior Dimensions 8 (H) x 3 1/4 (W) x 1 7/8 (D) in.
    Weight 10 lbs
