  • Anviz M5

    Fingerprint and Card Reader

    SKU: M5


    Stand-alone biometric door security.

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Slim and elegant design
    • Vandal resistant metal housing
    • BioNANO algorithm ensures fast verification under one second
    • LED indicators and buzzer for visual and audio feedback
    • Multiple verification modes guarantee flexibility and safety
    • Multiple communication modes such as TCP/IP, Wiegand 26/34, easy for installation and integration
    • Tamper alarm output
    • RFID Card Reader: EM(125KHz)
    • Two Identification Modes: Fingerprint / Card, or Fingerprint+Card
    • 500 dpi Optical Fingerprint Sensor
    • Verification Speed of Less than 1 Second
    • IP Rating: 65

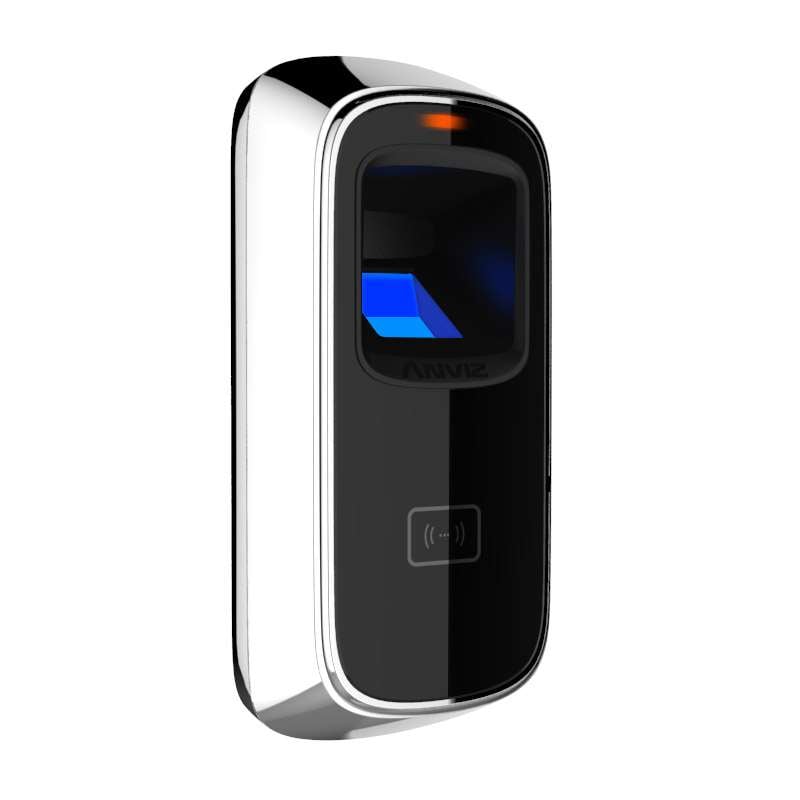

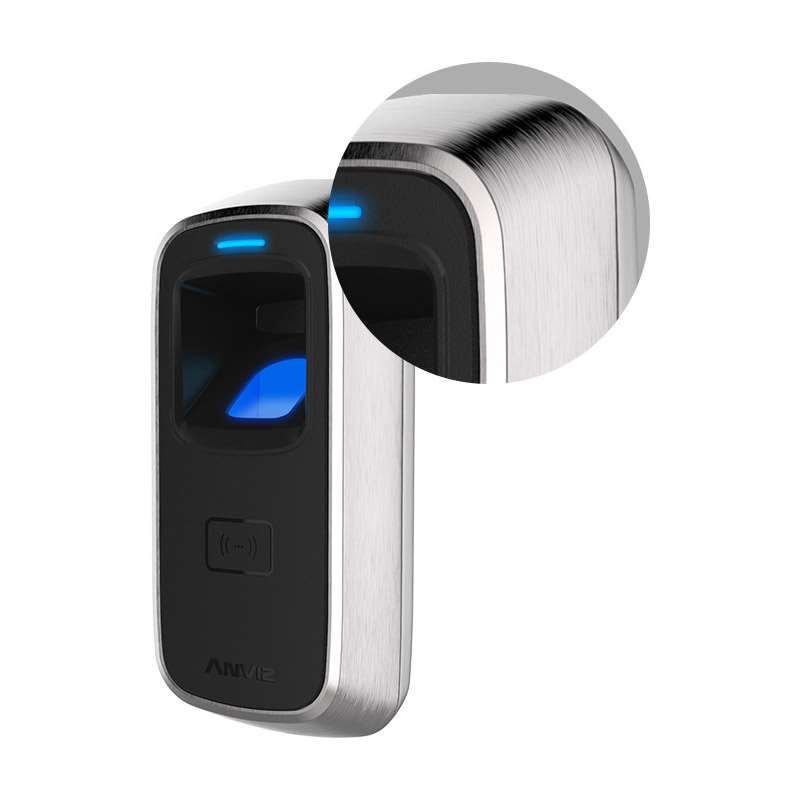

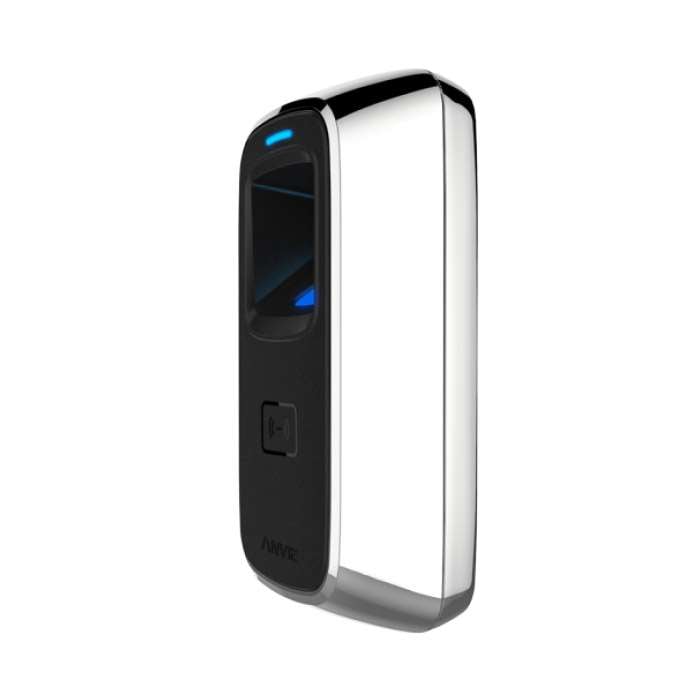

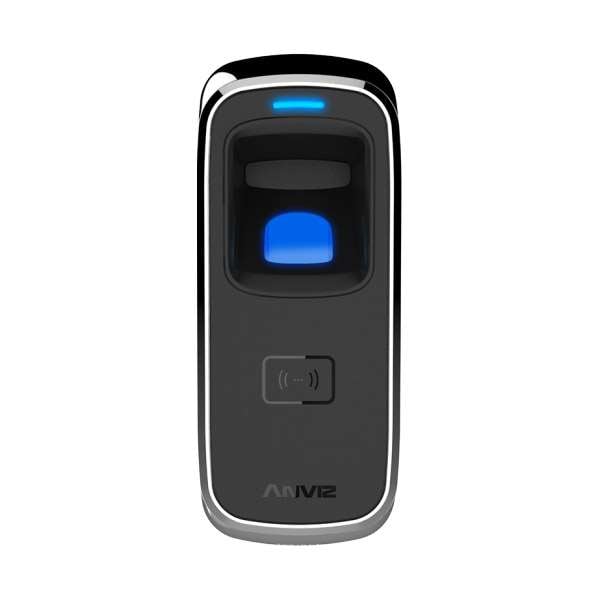

    M5 by ANVIZ is a compact access control device that is designed to fit most door frames. A metal casing, with IP65 water-proof design, makes it suitable for indoor or outdoor applications. M5 supports 125kHz proximity cards and fingerprint identification. It has both Wiegand and TCP/IP protocol interfaces and includes the SC011 (Power supply controller) to operate as a standalone access control device. Ease of access for your employees comes in a durable and accurate form, the M5 from Anviz. The M5 is protected by a metal housing that is rated IP65, which means no dust or water is getting in to interrupt your system. The M5 also "learns", meaning once the administrator puts a fingerprint into the system, each time that fingerprint is used the M5 checks the image against what is in it's database and keeps the better image for future reference. The M5 also accepts the Anviz RFID Key Fob as a credential. Just present the Fob to the lock and you're in.


    Manufacturer Anviz
    Voltage 12VDC
    Warranty 1 Year Manufacturer
    Reader Type Fingerprint
    Brand Anviz

    Door requirements


    Scanner 500 DPI
    Users 2,000


    Dimensions 4.88 (H) x 1.98 (W) x 1.36 (D) in.

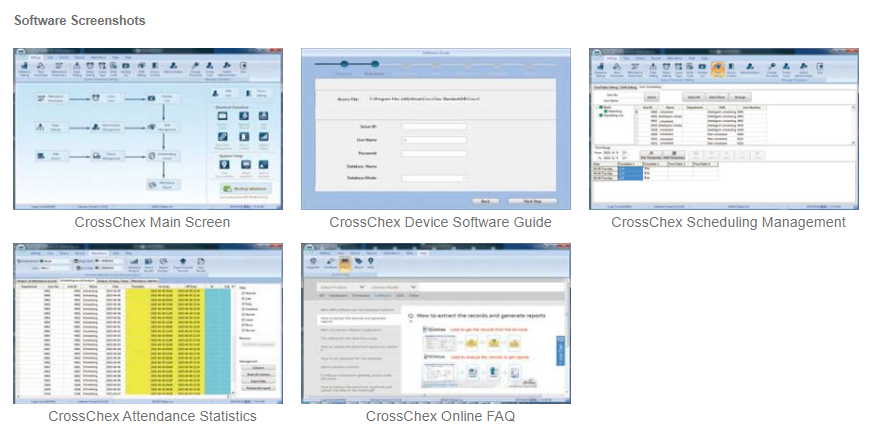

    Anviz CrossChex Time Attendance and Access Control Management System

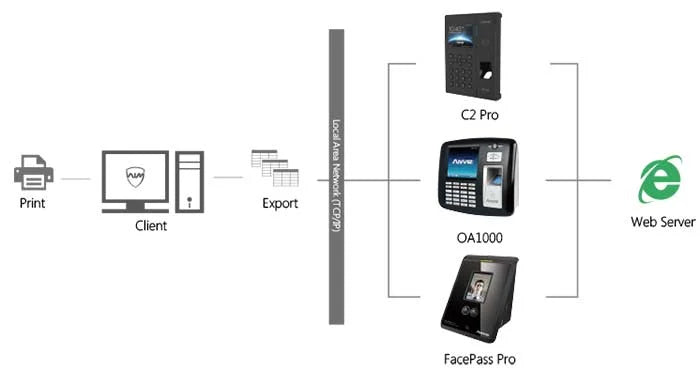

    Anviz CrossChex Time Attendance and Access Control Management System software is FREE and works with all Anviz access control and time attendance devices. Access from your PC, tablet, or mobile device using the web-based software. The user-friendly and interactive design makes this system very easy to operate. Manage staff and shift scheduling, payroll, access credentials and reporting from one centralized location.


    Manages departments and employees
    Manages devices and access restrictions
    Manages schedules, shifts and reports
    Rules out unauthorized overtime
    Imports/exports data in various file formats, such as CSV, XLS/XLSX, PDF, etc.
    Exports attendance reports to 3rd party accounting/payroll software
    Sends reports via email
    Connect to SQL database or Access database for easy installation and maintenance
    Supports all Anviz Biometric/RFID access control and time and attendance devices
