  • ButterflyMX 12″ recessed

    SKU: 12” Recessed


    Need help? GoKeyless offers full installation and services for these products. Contact today for details.

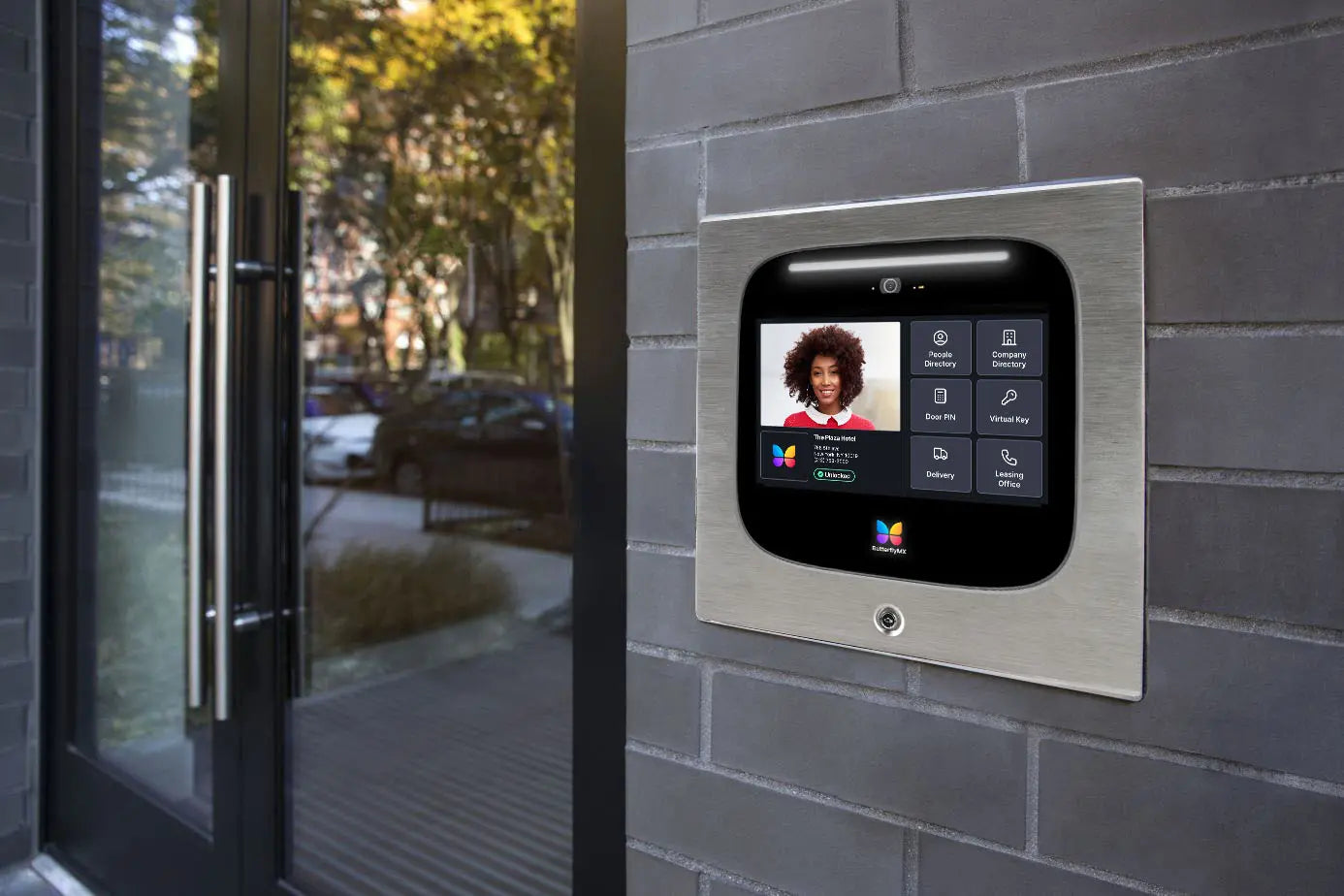

    Mounted in a wall or pedestal, the 12” recessed video intercom is a showstopper at your entryway door or gate.

    Don’t let this intercom’s elegant touchscreen design fool you — it’s ready to withstand even the harshest weather. The 12” recessed is protected by polycarbonate glass and a weatherized casing, so you can rest assured your intercom is safe in rain, snow, wind, or sun.

    And since it’s wireless, you can ditch the expensive building wiring or in-unit hardware. The 12” recessed reduces your installation costs while delighting your residents with smartphone-based property access.

    Our 12” recessed intercom mounts into a wall or pedestal and is designed for a large entryway. The elegant touchscreen design of this intercom is intuitive, while the polycarbonate glass and weatherized casing can withstand even the most extreme conditions.


    IP65 Rated– Dust, water, chemical

    Temperature-40F to +140F (-40C to +60C) Resolution 1280 x 800

    Relays– Four dry contacts w/ adjustable timing

    Dimensions– 13.3” H x 13.6” W x 2.4” D

    Power– 24VDC

    Network– Wired & wireless

    IP– DHCP

    Access Credentials– Mobile app, PINs, key fobs & cards

    Video– 1080p HD wide-angle 156° camera

    Certifications– UL, FCC, CE

    ButterflyMX is your complete property access solution, providing a secure, convenient, and affordable way to manage and grant access on the go. Empower your tenants and building staff to open doors, gates, and elevators with a smartphone and ensure they never miss a visitor or delivery. Enjoy easy installation and cut costs by eliminating building wiring and in-unit hardware, and save time by integrating with popular access control and property management systems. Join the 10,000+ multifamily, commercial, gated community, and student housing properties that have made access simple with ButterflyMX.


    Manufacturer ButterflyMX
    Power 24 VDC
    Brand ButterflyMX

    Door requirements

    Mounting Recessed


    Wireless Protocol WiFi


    Exterior Dimensions 13.3” H x 13.6” W x 2.4” D
    Temperature Range -40ºF to +140ºF (-40ºC +60ºC)
