  • CompX DL-200/300

    Double Door Latch

    SKU: DL-300

    CompX

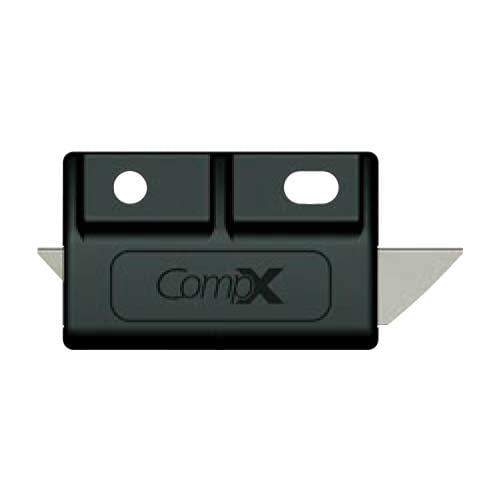

    An affordable and versatile latch. The CompX DL-200/300 Double Door Latch allows you to secure your cabinets without the need for an elbow catch or other devices, saving you space and time. This latch boasts a pull force of over 150lbs and is simple to install and use.

    Color
    Lock Placement

    Quantity left : -10

    Call For Price
    • No need to reach inside cabinet to release elbow catch
    • Doors can be closed in any order
    • Low profile Latch mechanism reduces product footprint inside cabinet
    • Requires use of a single lock (sold separately)
    • Allows two or three point locking for standard or wardrobe style double door cabinets when used with a lock
    • Easy to use and install
    • Exceeds pull force above 150lbs
    • Kit includes one of each: latch, activator, and catch

    Mounting Placement – IMPORTANT

    • DL-200 – for top mounting when the lock is on the right door, for bottom mounting when the lock is on the left door
    • DL-300 – for top mounting when the lock is on the left door, for bottom mounting when the lock is on the right door

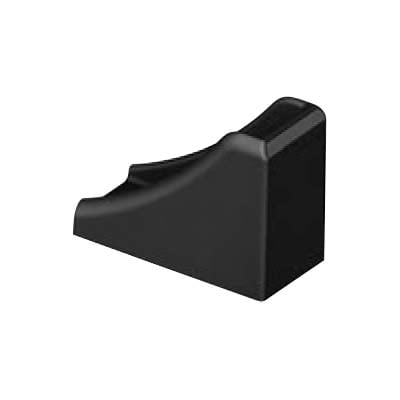

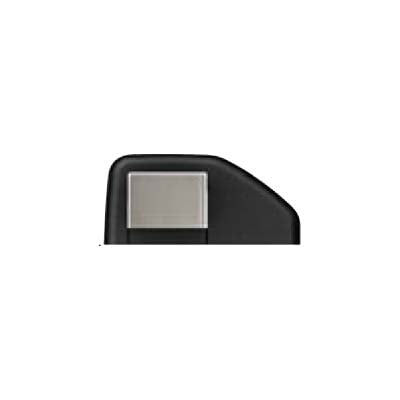

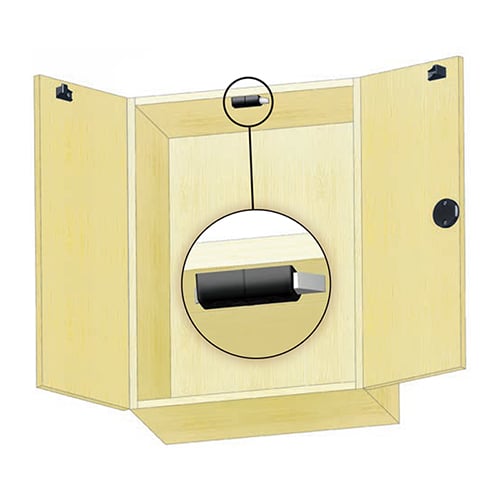

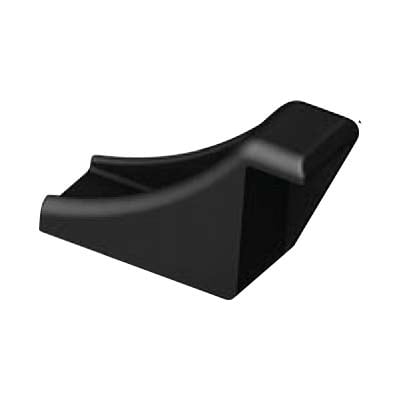

    The lock is mounted on the right-hand door. Inside the right-hand door, install the activator; on the non-locking door, install the catch. The latch should be installed inside top of cabinet. The activator pushes the bolt on the latch to the other side to engage the catch. The bolt on the catch side is spring-loaded, allowing the doors to be closed in any order. Turn the key to lock the other door; both doors are now secure. The locking door must be opened first to disengage the bolt in the latch – the bolt will slide back, allowing the non-locking door (with the catch) to open.

    Basic

    Manufacturer CompX

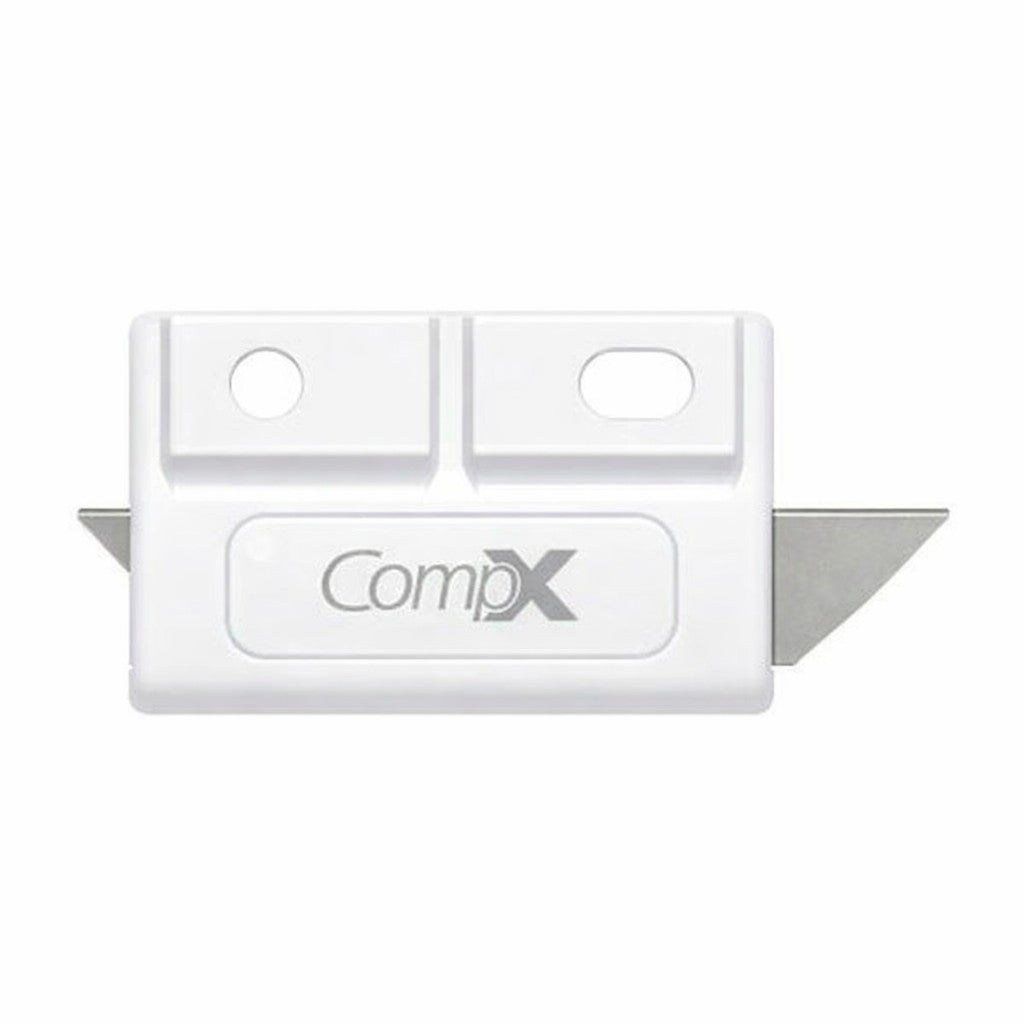

    Color Black, White
    Brand CompX

    Door requirements

    Lock Placement Right Door, Left Door

    Security

    Dimensions

    Dimensions Activator: 15/16 (H) x 1 1/4 (W) x 5/8 (D) in., Catch: 1 1/32 (H) x 1 1/4 (W) x 5/8 (D) in., Latch: 1/2 (H) x 2 11/32 (W) x 1 3/32(D) in.
