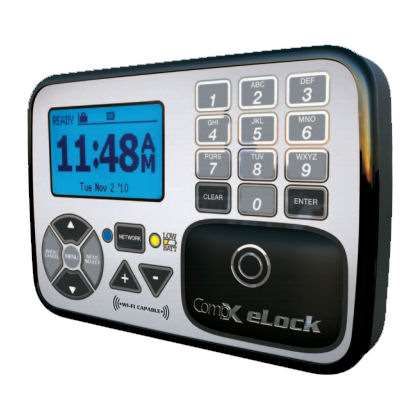

    Cabinet Magstripe Card Lock with Keypad


    CompX and CompX eLock

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Do-it-yourself, effortless installation can be done in as little as 12 minutes. Meets Joint Commission Requirements.

    • Industrial strength stand-alone magstripe/keypad cabinet lock with new membrane 10-button operator panel

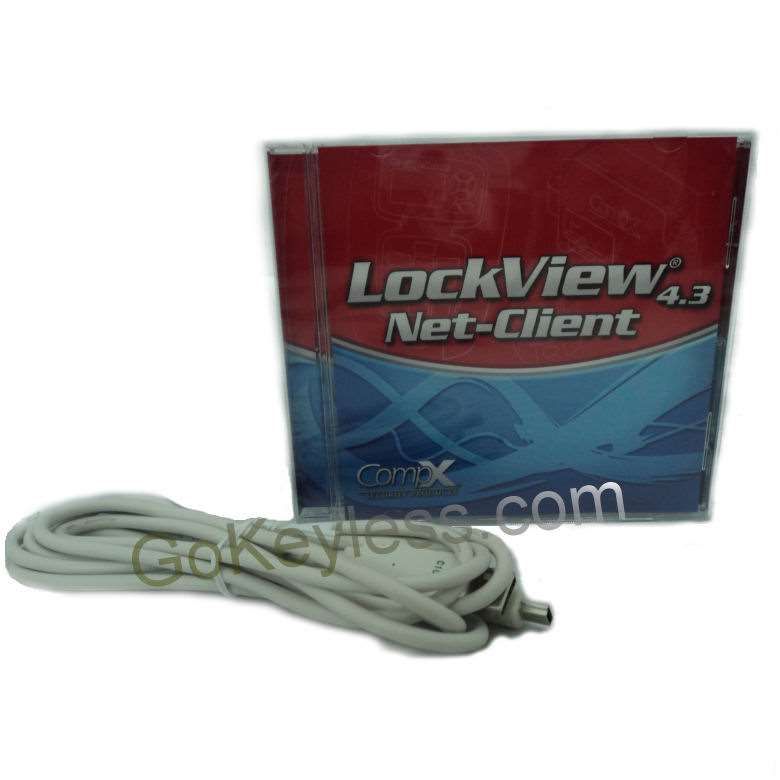

    • Program manually on user friendly LCD blue backlit screen or through LockView software
    • Select 4 to 14 digit user codes; Dual credential capability with Lockview software
    • EASY surface mounted installation. Can be screwed in, or most common mount is using adhesive strips. (strips included with order) Once on with adhesive strips, will not come off easily. You would have to use piano wire to break through each of the bond points
    • Each eLock unit includes exterior numeric keypad, inside motorized latch, battery compartment, latch cable, and detailed installation instructions
    • Supports 3000 User / Supervisor PIN codes - add/delete users/supervisors quickly at the unit, or with optional LockView software (available at checkout)
    • Audit trail of last 15,000 access attempts with date, time and user name via USB connection (requires LockView Software)
    • Enhanced Security; two reset codes required to delete users and supervisors
    • Powered by 6AA alkaline batteries (not included). Under normal daily use, you can expect to get appx. one year's worth of use from a set of 6AA's
    • Low Battery Indicator; visual
    • Jump-Start Feature; allows authorized user to press a 9-Volt battery into the power port to access the eLock when batteries are fully exhausted
    • Non-Volatile Memory; should batteries run out, lock data and programming is preserved
    • eLock is compatible with 12V electric door strikes (call us at 937-247-9327 to order exterior keypad housing only when you want to use with an electric strike)
    • One (1) year manufacturer warranty

    A whole new look, the updated and ergonomically designed CompX eLock cabinet access control system combines power and technology to provide you keyless security in an all-in-one device you can setup and maintain using the console's keypad, or a computer.  eLock magnetic card cabinet locks have a devout following in the healthcare, security, and institutional marketplace, and are currently installed in dozens of medical clinics, hospitals, and facilities throughout the country.  You will be hard pressed to find a key card cabinet lock as highly engineered, durable, feature rich, and user friendly as eLock.  Accommodating up to 3000 users, you can enroll your entire user population.  You'll also be glad to know you can interrogate this lock.  This means less theft, vandalism, and other losses because an audit record is created of every event.  The mere mentioning that you have tracking capabilities with this lock will make anyone think twice about doing something they shouldn't.  Sold as a complete kit your new magstripe/keypad cabinet lock includes the keypad unit, a magnetic key card reader, an inside surface mounted motorized latch, and latch cable.  Programmable at the lock, or using a PC (requires LockView software), the eLock cabinet key card + keypad system eliminates the operational and liability issues associated with keys, and offers you a solution that is more difficult to duplicate than strictly using PIN codes only.  You can require dual authentication with this lock, so the user must know their PIN, and have their key card on them.  With eLock, cabinet doors won't get left open, and you'll end keys being lost, shared, and stolen, because people won't have to carry cabinet keys.  eLock comes in several configurations, including numeric keypad only, magstripe plus keypad, prox reader plus keypad, and iClass prox plus keypad.   With the magstripe and prox reader units, your existing identification cards can be directly programmed into the lock - no need to buy new cards.  The eLock Magstripe reads Track 2, the eLock Prox reads HID cards, and the iClass Prox reads iClass smart cards.  Take your security to the next level today and start enjoying keyless convenience on all of your cabinet openings.

    Perfect for military and veterans hospital applications, cabinet doors and drawers, drug & supply cabinets, key control cabinets, medical carts, patient file cabinents, personnel records cabinets, pharmacy cabinets, tool storage, research labs,  evidence rooms, etc...


    Manufacturer CompX
    Lock Features Old Audit Trail, Scheduling
    Solution Electronic
    Access Type Keypad - Digits
    Locking Device Surface Latch
    Brand CompX
    CompX eLock

    Door requirements
