  • CompX LockView 5

    Lock Management Software

    SKU: LockView-5

    CompX eLock



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $128.25

    • Compatibility with CompX eLock 150 and 200 locks
    • Operator function for building and maintaining database of users and locks; Operators can be given full access in LockView or Audit Trail Rights Only
    • Time based restrictions for access control, individual or group
    • Audit trail downloads

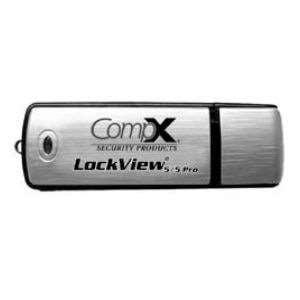

    • Complete Kit; includes software flash drive and USB/mini USB cable
    • Easy setup; simply connect mini USB end of the cable to port on the bottom side of the eLock controller and the other end to the USB port on a Windows based laptop



    • Minimum system requirements:
      Windows Vista, 7, 8, 8.1, 10, 11 Server 2008/2012/2016/2019/2022 and R2 versions.
      4GB RAM – Processor 2.0 GHz or higher. (8GB recommended)
      4GB Hard drive space
      SQL Server Standard, Enterprise, or SQL Express
      2008/2012/2014/2016/2017/2019/2022 and R2 versions.
      If installing LockView on the Microsoft SQL Server, please follow Microsoft
      SQL’s minimum requirements
      ODBC connection required to Server
      Local Administrator Rights are required to install and register the software.
      .Net 4.0 Client Framework
      Minimum monitor resolution: 1024×768
      Signed 32 bit and 64 bit WHQL drivers.
      Supports both 32 and 64 bit Operating Systems
      Compatible with VMWare
      Supports up to TLS 1.2

    LockView 5 works on 200 and 150 Series eLocks which are not network capable. An authorized administrator creates a database of users and locks on a laptop PC to program and manage eLock cabinet and refrigerator locks. LockView 5 can be used seamlessly with any 200 or 150 Series eLocks. All communication with 200 and 150 Series eLocks must be done with LockView 5 installed on a laptop. The laptop must then be brought to each eLock for downloading and uploading of temperature logs (if equipped), access audit trails, user changes, eLock changes and access rights changes. Software kit includes USB drive.

    When connected to eLock Refrigerator locks, LockView retrieves up to 500,000 temperature data points and provides programmable charts, graphs and reports, as well as comprehensive audit trail of the last 1,500 (150 series) or 15,000 (200 series) access attempts – including date, time and user name. Standard temperature monitoring is 100°C to -40°C, and to -100°C with the ultra-low temp version. Manual programming performed at a specific eLock will be downloaded to LockView when connected.

    Basic

    Manufacturer CompX
    Brand CompX eLock

    Door requirements

    Security

    Dimensions

    Minimum system requirements:
    Windows Vista, 7, 8, 8.1, 10, 11 Server 2008/2012/2016/2019/2022 and R2 versions.
    4GB RAM – Processor 2.0 GHz or higher. (8GB recommended)
    4GB Hard drive space
    SQL Server Standard, Enterprise, or SQL Express
    2008/2012/2014/2016/2017/2019/2022 and R2 versions.
    If installing LockView on the Microsoft SQL Server please follow Microsoft
    SQL’s minimum requirements
    ODBC connection required to Server
    Local Administrator Rights are required to install and register the software.
    .Net 4.0 Client Framework
    Minimum monitor resolution: 1024×768
    Signed 32 bit and 64 bit WHQL drivers.
    Supports both 32 and 64 bit Operating Systems
    Compatible with VMWare
    Supports up to TLS 1.2
