  • Detex AT-5200

    Tailgate Detection System

    SKU: AT-5200-R1

    Detex



    Option

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $1,260.92

    Call For Price

    Benefits

    • Adds additional security to a restricted area where unauthorized entry must be controlled
    • Compatible with most access control systems and easily retrofits, providing enhanced security
    • Blends in with architectural styling
    • Integrated door prop alarm for additional security
    • High throughput easy entry or exit for authorized personnel
    • Encourages employees, students, visitors, etc. to maintain access control procedures
    • ADA compliant

    Features

    • Local control/annunciator; unauthorized access/egress is annunciated locally and with the access control system
    • Key switch for local alarm shunt / override
    • Alarm can be reset through an on-board timer

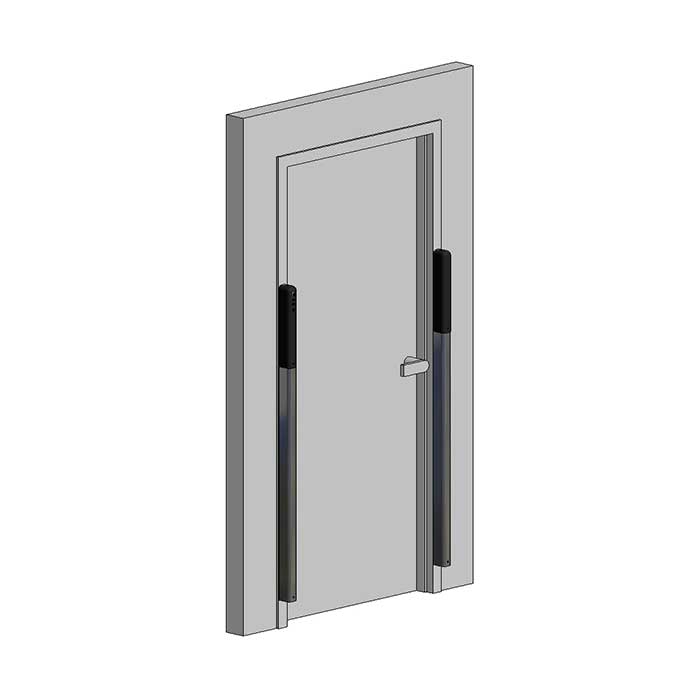

    • Mounts on standard width door frame or wall
    • Spacer mounting kit standard, can be used as a raceway for wiring
    • Alarm can be reset by a remote contact
    • Remote annunciator plates, fit in a single gang box
    • Status indicator lights (Wait or Proceed)
    • Field configurable for card in/card out or card in/free exit operation
    • Adjustable access period
    • Alarm status relays for remote annunciation
    • Tamper Switch
    • 3 Year Limited Manufacturers Warranty

    Technical Information

    • Direct mounting to doorframe or wall by using optional spacer mounting kit
    • Alarm Sound Level – 70dB @ 10 inches

    Detex

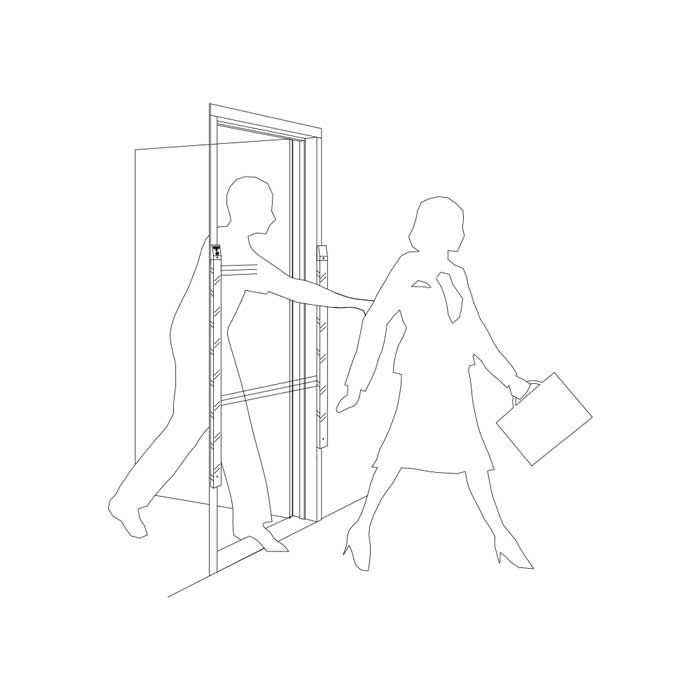

    Everyone remembers from their school days what could happen if you didn't line up, or enter one at a time. You could get hurt, someone else could get trampled on, and you were looked at as cheating the system. In the grown-up world of access control, breaking the policy of one at a time when entering or exiting through a secured opening creates its own set of consequences, most of which are not something any business wants to deal with. Both an intentional, and covert practice called tailgating, it defeats the purpose of a card entry system where only the individual presenting their card to the door reader is authorized passage. As anyone who has worked at a company which uses cards and/or ID badges will tell you, these credentials are fine for restricting access into certain areas of the building, but they are self-limiting in being able to control how many people can go through the door once it's opened. The good news is in this situation an employee is usually letting other employees in on their card as a function of convenience. The bad news is that someone who is not an employee could piggyback their way in, or someone posing as an employee. For doors where tighter security is required, an attacker could also be standing off to the side waiting to covertly enter on an employee's card read. Apart from putting a manned guard at each door, you can ensure only one individual enters a controlled doorway for each card read, by installing the Detex AT-5200 anti-tailgating and anti-piggybacking device. A tailgate detection system, the Detex AT-5200 mounts easily to standard door frames, features a subtle design which does not distract from interior aesthetics, and is an effective optical security system, which uses unique algorithms and infrared sensor beams to detect tailgating. In short, if you are concerned about another employee, visitor, or intruder getting through one or more of your doors where you require cards, the Detex AT-5200 tailgate detection system is a unique and impressive edge unit for curtailing improper access and signaling a breach. Employee entrances, computer rooms, bank vaults, dorm entrances, and areas with restricted access represent a small number of the nearly unlimited potential applications for the AT-5200. It has the ability to increase the security level of virtually any access control system.

    Basic

    Manufacturer Detex
    Power 12 VDC @ 500mA
    Warranty 3 Year Limited Manufacturer
    Brand Detex

    Door requirements

    Security

    Dimensions

    Dimensions 2 (W) x 54.7 (H) x 2.6 (D) in.
