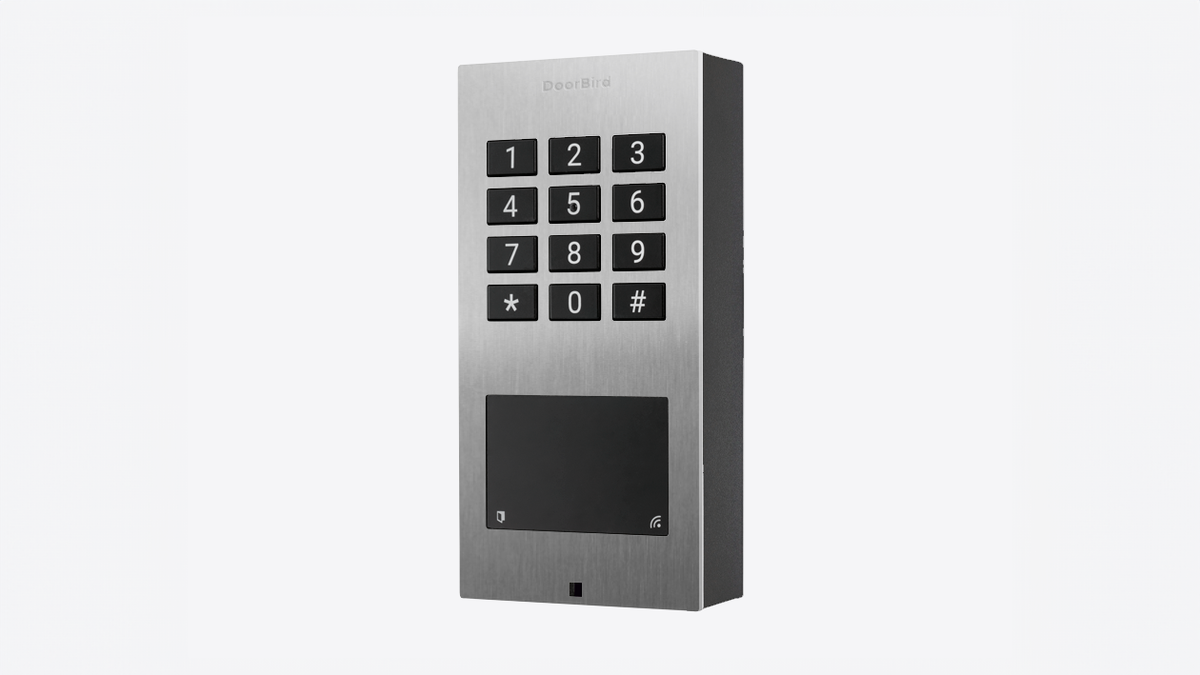

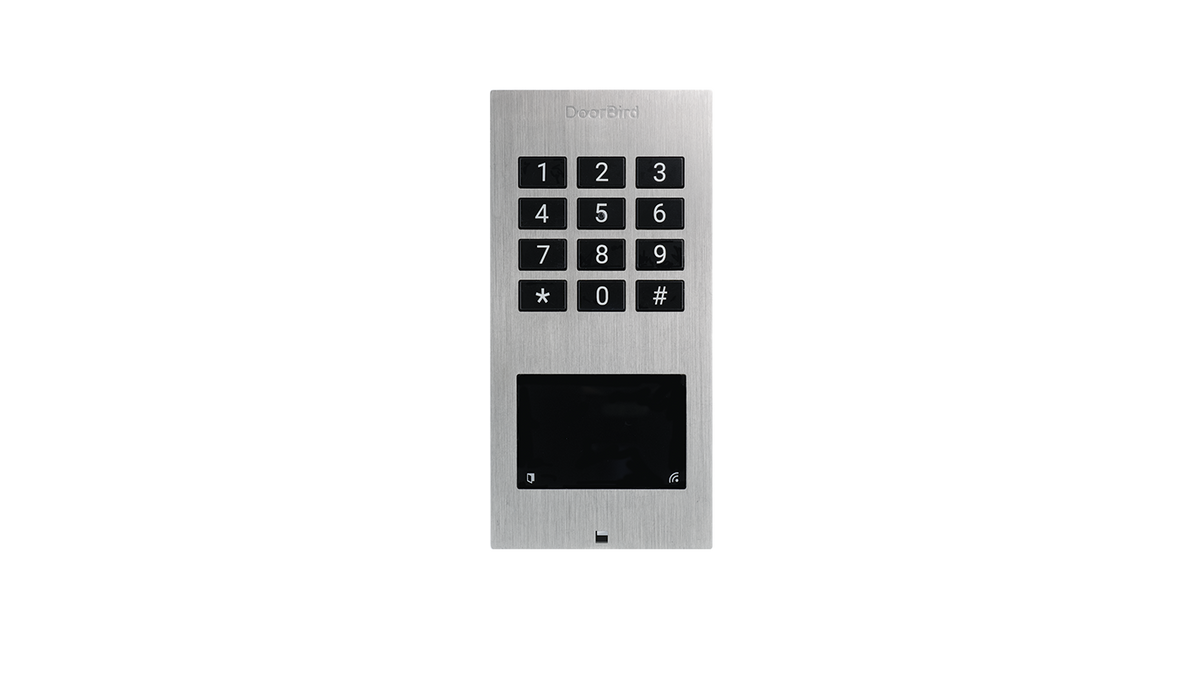

  • DoorBird A1121 Access Control Device

    Surface-mount IP Access Control Device

    SKU: 423872028

    DoorBird



    Call For Price Contact For Pricing

    View Product Data Sheet Here

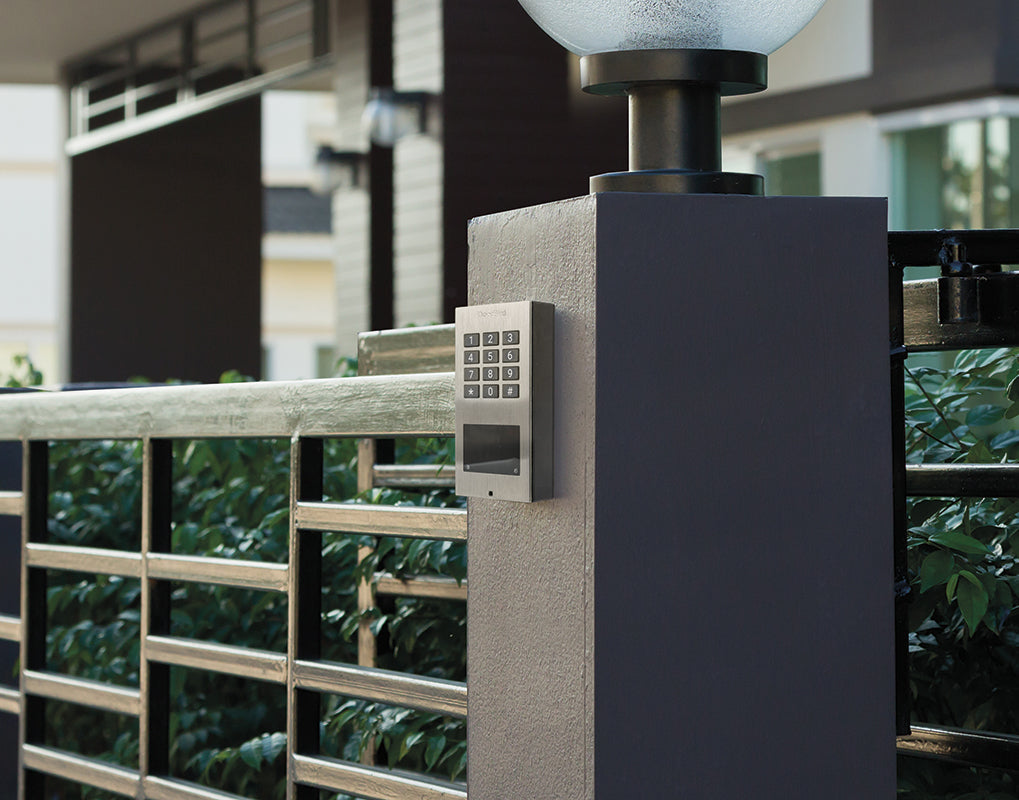

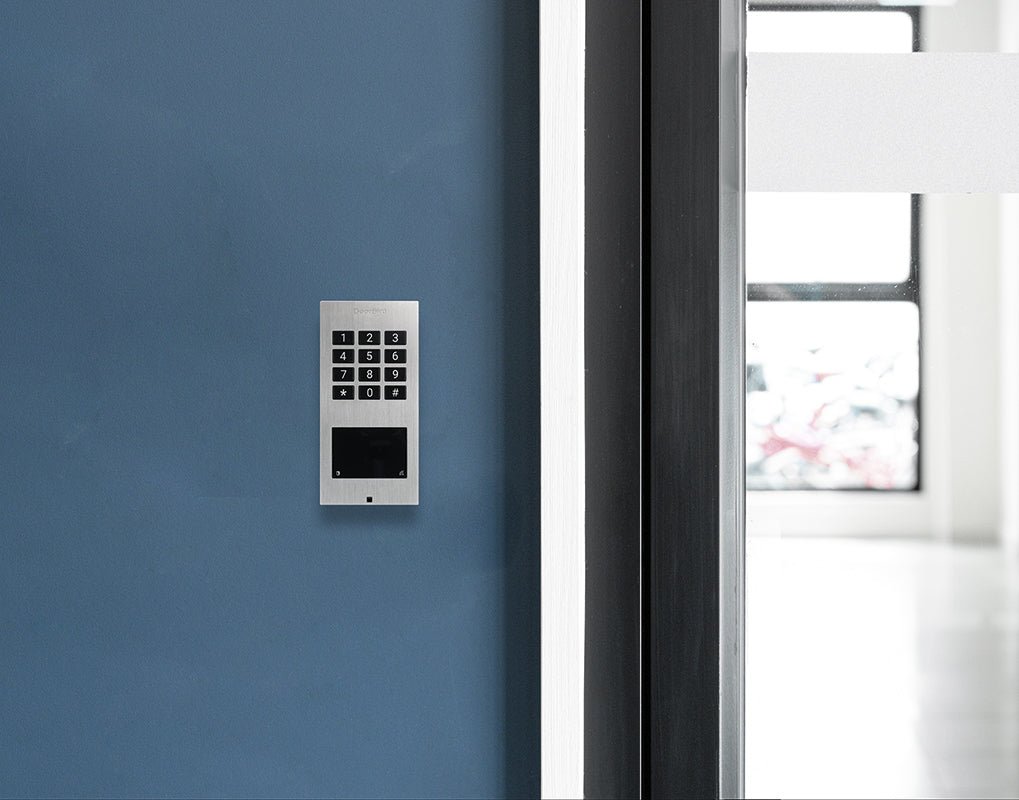

    The device is designed for indoor and outdoor installation. The retrofit version is available for existing front panels. Our front panel is made of solid 3 mm (0.12 in) brushed stainless steel. All buttons are backlit. The DoorBird A1121 can be connected to the network via WLAN or LAN cable. If connected using a network cable, the device can be powered via Power over Ethernet (PoE). Should the Internet temporarily fail, all functions continue to operate within the local network.

    Surface-mount housing included
    WiFi / LAN connection (PoE capable)
    Keypad
    125 KHz and 13.56 MHz RFID reader
    Tamper sensor
    Wiegand interface
    2 freely configurable bistable switching relays

    Imagine you are not at home, and your children have locked themselves out, or the courier wants to deliver a parcel. With DoorBird, this is no longer a problem. Every time someone rings the doorbell, you will get a push notification on your smartphone or tablet. Via the DoorBird  App you can talk to visitors and also see them live in HD  quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home.

    Basic

    Manufacturer DoorBird
    Ethernet PoE 802.3af Mode-A
    Material Polycarbonate, white Available in white and black
    Power 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
    Radio Frequency 125 KHz
    Voltage When no data is being sent, both DATA0 and DATA1 are pulled up to the "high" voltage level, +5 V DC. The interface is galvanically isolated.
    Reader Type Active Reader Passive Tag (ARPT) system
    Brand DoorBird

    Door requirements

    Mounting Surface-mounted. Flush-mounted and retrofit version sold separately

    Security

    Dimensions

    Dimensions 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D)
    Weight 250 g
