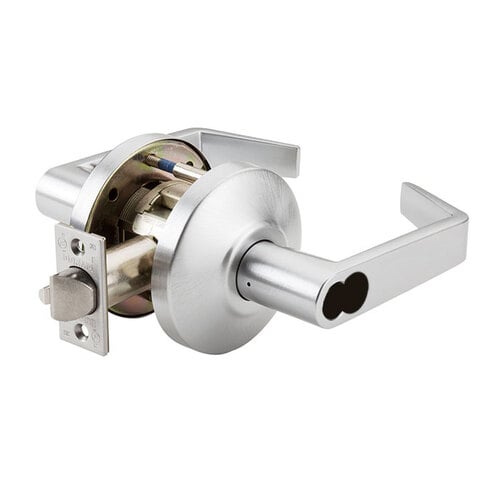

dormakaba - C840-LRC-626

The C800 series ANSI Grade 1 heavy-duty cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability. The RCI electrified C800 lockset is designed for easy installation in all swinging doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks. The RCI C800 lockset is field adjustable to accommodate doors from 1-3/4″–2-1/4″ thick without spacers (1-3/8″–1-5/8″ with spacers PC8DS1). The lockset is available in fail-safe (EL) and fail-secure (EU) options.The C800 lockset is available in mechanical and electrified models. The C800 electrified lockset is only available through dormakaba’s RCI product brand.

• Energy: 290mA @ 12VDC 145mA @ 24VDC
• Fire-Rated: 3-Hour Fire-Rated
• Strength: ANSI/BHMA A156.2
• Door Type: Designed For Wood And Hollow Metal Doors
• Mode: Fail-Safe & Fail-Secure Options Available
• Warranty: 2 Year Limited Warranty
