  • dormakaba - C180D-LRC-626

    Grade 1 Heavy-Duty Cylindrical Locks

    SKU: C180D-LRC-626



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $65.74

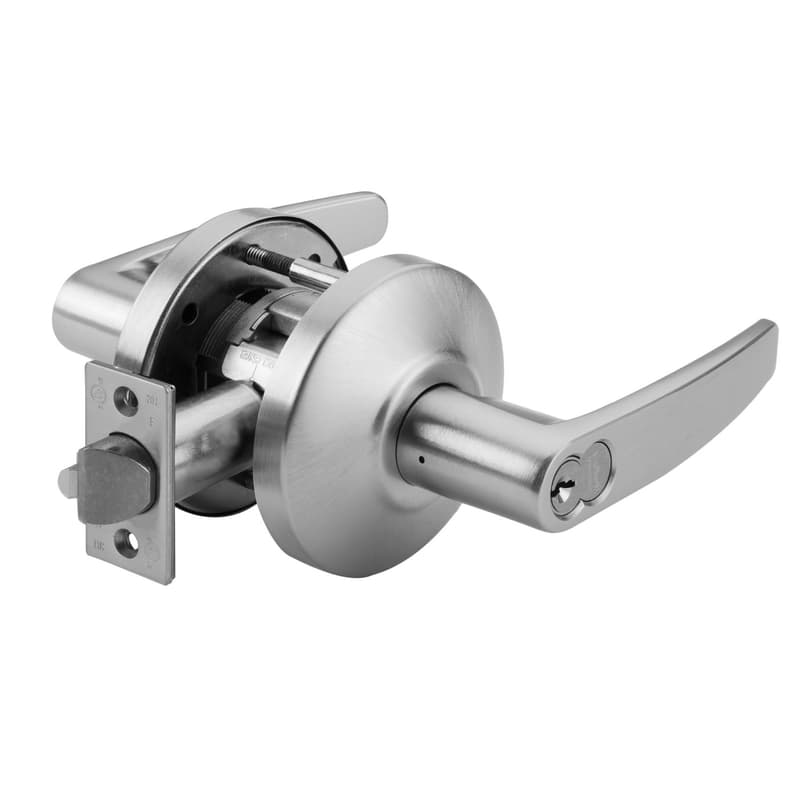

    C100 Grade 1 heavy-duty cylindrical lockset

    Exceptional security, enhanced aesthetics, and rugged dependability. These premium locks are built in America with a high performance cylindrical chassis for all applications where ANSI/BHMA A156.2 Series 4000 Grade 1 products are required. To meet the aesthetic needs of your project, these versatile locks are available in a range of trim designs.



    Features

    • C100 Series locks feature advanced design concepts for extreme reliability and are manufactured in USA with the finest materials for exceptional durability. This design provides both extremely high strength and an extended service life for the lock mechanism. All steel parts are zinc plated.
    • C100 Series locks are easy to install in both wood and hollow metal doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks.
    • C100 Series lever locks are through-bolted for additional strength and reliability.

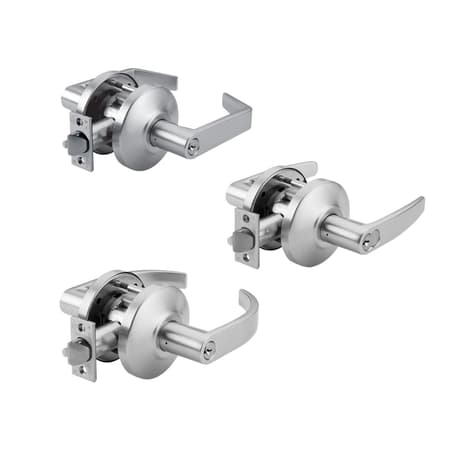

    • C100 Series lever locks are available with two rose designs, C or the stepped E.
    • C100 Series operating lever trim features a specially designed freewheeling function to protect the lock from damage caused by excessive torque applied to the lever handles. When locked, the outside lever handle will move freely through a 60° arc without operating the latch bolt. This free movement minimizes the opportunity for damage to the lock mechanism.
    • C100 Series lever locks include a special, high strength spring and positive stop to eliminate unsightly sagging levers.
    • C100 Series lever locks are easily adjustable to accommodate doors from 1-3/4”–2-1/4” thick without spacers (1-3/8”–1- 5/8” with spacers 660005).



    Recommended Applications

    • Schools and Universities
    • Hotels ..Apartments
    • Hospitals and Nursing Homes
    • Churches
    • Municipal Buildings
    • Airports
    • Retail Complexes
    • Offices
    • Warehouses

    The C100 Series premium BAA compliant Grade 1 locks are built with a high performance cylindrical chassis for all applications where ANSI/BHMA A156.2 Series 4000 Grade 1 products are required. The C100 boasts improved manufacturing and lead times with a broader breadth of functional offerings and finishes while maintaining the aesthetics of the preceding C800 portfolio. To meet the aesthetic needs of your project, these versatile locks feature advanced design concepts for extreme reliability and are manufactured with the finest materials for exceptional durability. This design provides both extremely high strength and an extended service life for the lock mechanism. C100 Series locks are easy to install in both wood and hollow metal doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks.

    Basic

    Finish Satin Chrome
    Keyway Schlage C

    Door requirements

    Door Handing Non-Handed
    Latch Bolt 1/2 in. throw

    Security

    Fire Rating 3 Hour UL Rated

    Dimensions

    Door Thickness Maximum 1 3/4"– 2 1/4"
    Backset 2 3/4 in.
