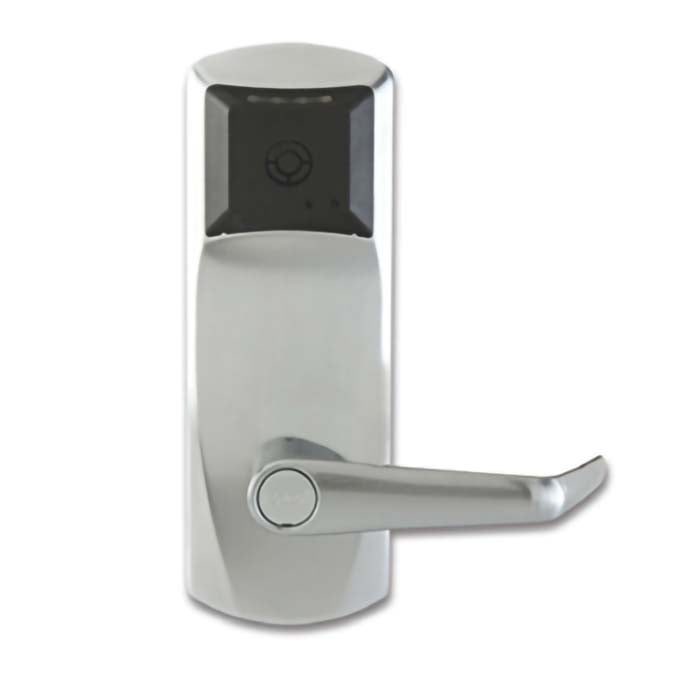

dormakaba E-Plex 7900

KEYSCAN AURORA SOFTWARE
The Keyscan Aurora software is the culmination of years of research and innovation directed towards expanding access control functionality. With an emphasis on innovation and sustainability, dormakaba’s Keyscan Aurora access control software is a high-performance software platform. With many features and integration options, it provides a single software solution for access control with no performance-limiting or system expansion governors. Keyscan Aurora is ideal for any access control applications regardless of size or complexity.

Advanced features include managing, auditing and controlling door and elevator floor access as well as robust integration support for wireless locks, video management systems, intrusion alarm systems, Active Directory, and SMART elevator systems. Aurora can also support a hybrid hardwired and E-Plex wireless lock system with full control and audit capability, using the same credentials throughout your facility.

Multiple integration options with high profile manufacture product lines
Robust software platform with no expansion governors or performance delimiters
Ideal for any access control applications regardless of size or complexity
FEATURES
Advanced features include:

ButterflyMX Telephone entry system integration
Enhanced Lockdown
dormakaba Community and Ambiance hospitality and multi-housing software integrations offering unique ‘back-of-the-house’ access control solutions
VMS Integration
E-Plex and other select wireless locks integration
Active Directory integration
Support for Keyscan and HID mobile access solutions
Thyssenkrupp “Destination Dispatch” SMART elevator integration
KONE DD SMART elevator system integration
Aurora web client interface
Centrally managed access control
Upgrade to full SQL server
Optional licensed and add-on modules for enhanced and added functionality
Ten (10) assigned groups to a single credential holder
Support for 45,000 credentials (up to 90,000)
People-centric methodology
Unlimited user-definable fields
New API available for custom integration
Optional licensed Software Development Kit (SDK)
English, French, Spanish and Portuguese language support
TECHNICAL DATA
Basic Requirements

The following outlines the minimum requirements for Aurora where the database, communication services, and Client are installed on one PC. Supports a maximum of 5 network connections and/or 1 serial connection to a maximum of 8 control panels and Supports a maximum of 2 remote client connections.​

Intel Core i7-4770 3.4GHz with 4 cores
16GB RAM 1600MHz DDR3 NON-ECC
500GB 7.2K RPM SATA 3Gbps 3.5in Hard Drive
Windows 10 Professional 64bit
AMD RADEON HD 8490 1GB Dual Monitor or AMD RADEON HD8570 1GB Dual Monitor
USB 2.0 Ports
8X DVD ROM, SATA, Internal
Ethernet Port – 1Gb Network Card
Keyboard and Mouse
UPS Backup
Advanced requirements (Keyscan Recommended)

The following outlines Keyscan’s recommended requirements for maximum system efficiency and performance with the Client, communication services, and database installed on separate servers.

Aurora Client Workstation

Intel Core i7 – 4770 3.4 GHz with 4 cores
16GB RAM 1600MHz DDR3 NON-ECC
500GB 7.2K RPM SATA 3Gbps 3.5in Hard Drive
Supported operating systems:
i) Windows Server 2016 Standard
ii) Windows 10 Professional
iii) Windows 8 64-bit Professional
iv) Windows 7 SP1, 64bit Ultimate, Enterprise and Professional
v) Windows Server 2012 64-bit Datacenter, Standard, Essentials and Foundation
vi) Windows Server 2008 R2 64-bit Datacenter, Enterprise, Standard and Foundation
AMD RADEON HD 8490 1GB Dual Monitor or AMD RADEON HD8570 1GB Dual Monitor
USB 2.0 Ports
8X DVD ROM, SATA, Internal
Ethernet Port – 1Gb Network Card
Keyboard and Mouse
UPS Backup
Aurora Communication Server

Intel Xeon E5 – 2403, 1.80GHz, 10MB Cache with 4 cores
8GB RAM 1333MHz, RDIMM
500GB 7.2K RPM SATA 3Gbps 3.5in Hard Drive
Supported operating systems:
i) Windows Server 2016 Standard
ii) Windows Server 2012 64-bit, Datacenter, Standard, Essentials and Foundation
iii) Windows Server 2008 R2 64-bit, Datacenter, Enterprise, Standard and Foundation
Integrated HD Graphics Card
8X DVD ROM, SATA, Internal
USB 2.0 Ports
Ethernet Port – Dual Port 1Gb Network Card
Keyboard and Mouse
UPS Backup
Aurora Database Server

Intel Xeon E5 – 2420, 1.90GHz, 15MB Cache with 6 cores
16GB RAM 1333MHz, RDIMM
2 x 1TB 7.2K RPM SATA 3Gbps 3.5in Hard Drive
RAID 1 Configuration
Dual, Hot-Plug, Redundant Power Supply
Supported operating systems:
i) Windows Server 2016 Standard
ii) Windows Server 2012 64-bit, Datacenter, Standard, Essentials and Foundation
iii) Windows Server 2008 R2 64-bit, Datacenter, Enterprise, Standard and Foundation
Integrated HD Graphics Card
8X DVD ROM, SATA, Internal
USB 2.0 Ports
Ethernet Port – Dual Port 1Gb Network Card
Keyboard and Mouse
UPS Backup
COMPONENTS
Keyscan Aurora Web Client

Keyscan Aurora Web Client optional licensed module, gives you the flexibility to manage your facility’s access control systems from any internet-enabled PC or device or smartphone. It is the ideal solution for those who want some level of autonomous control over the Keyscan system.

Add and edit cardholders
Assign and update cardholder access privileges
Generate system reports
Lock, unlock and pulse controlled doors
Schedule visitors
Review system status
Change time schedules
Door maintenance and status
Live online transactions
Plus much more
Keyscan Aurora Add-On Modules

Keyscan Aurora software features add-on and optional licensed modules designed for software integration and enhanced overall system functionality. Add-on modules are installed as separate applications and registered with a license number provided when you purchase the software. When you register your software online you’ll obtain an unlock number to complete the registration and fully enable your software.

Aurora Web-Client (web-based access control)

Aurora’s web-client interface add-on allows you limited management of your access control system for any of your facilities at anytime, from any location, using any web-enabled computer or mobile device. It remains the ideal solution for those who need mobility.
Aurora SQL Upgrade

Aurora supports upgrading to a full SQL database removing the 10 GB limit and giving you many more options, features and benefits. Requires server, OS and appropriate licensing for SQL Server 2012.
Video Management Software Integration (VMS)

Aurora offers a new and robust VMS platform integration. When licensed, allows Aurora users to open and use client software from leading manufacturers such as i3 International, OnSSI, Open Eye, Salient, and Exacq.
Intrusion Integration

Aurora allows increased integration with DSC MAXSYS and PowerSeries intrusion panels*. Aurora is designed to accommodate other leading intrusion or security product lines such as the DMP XR550DN series as well as providing Aurora users with even more versatility.
Other Optional Licensed Modules

Active Directory Integration
Software Developers Kit
Additional Client/Web License
Additional Client/Web License 5-pack
Additional Client/Web License 10-pack
Reverse Network Single
Reverse Network 5-pack
Reverse Network 10-pack
Keyscan Aurora Integrations

E-Plex Wireless Locks

Keyscan Aurora seamlessly integrates with dormakaba’s E-Plex series wireless locks. This integration provides a cost effective and scalable solution for adding wireless locks to your Keyscan access control system.
VMS Integration

Keyscan Aurora features support for many of the top name VMS, DVR and NVR systems including: OnSSI, i3 International, Exacq, OpenEye and Salient Systems.
SMART elevator systems

Keyscan systems can also integrate with select SMART elevator passenger management systems from KONE and Thyssenkrupp. These innovative elevator dispatch systems manage building traffic by grouping passengers, for the same destinations, into the same elevator.
Active Directory

With Active Directory integration, Aurora users can be linked to their Active Directory record. This offers exceptional login efficiency and expedites system user permissions and day- to-day activities with Aurora.
EasyLobby integration

Keyscan Aurora is built with a visitor management feature. For facilities that require a more progressive visitor management system, Keyscan Aurora offers integration with EasyLobby® Visitor Management software.
Intrusion systems

Aurora allows increased integration with DSC MAXSYS and PowerSeries intrusion panels. Aurora is designed to accommodate other leading intrusion or security product lines such as the DMP XR550DN series as well as providing Aurora users with even more versatility.
Schlage Wireless locks

The CA150WLKTN is a combination product that features an access control unit from Keyscan and a wireless lock gateway from Allegion. Together, it allows integration with up to eight NDE series wireless locks on any Keyscan access control system running Keyscan Aurora software version 1.0.14 or later.
