  • Industry

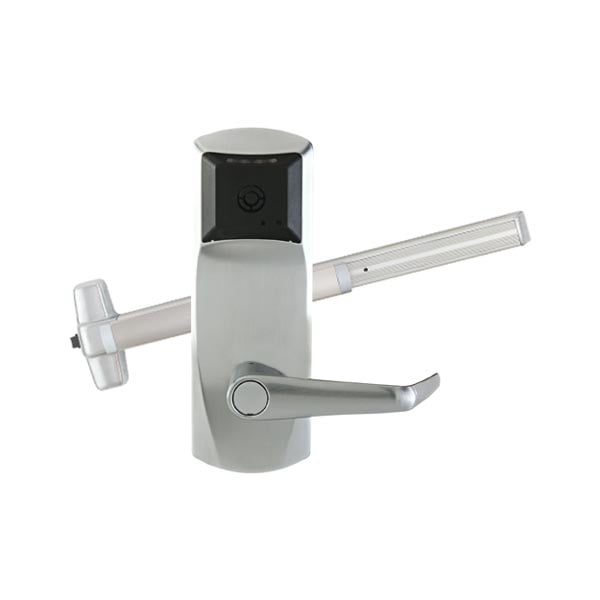

  • dormakaba E-Plex 7900 Exit

    RFID Electronic Panic Trim

    SKU: E79N10E30LKF00626

    Panic hardware sold separately



    The cool way to get carded. The E-Plex 7900 Cylindrical RFID Electronic Lock provides versatile keyless access for your small or large scale lodging or multi-family applications. Designed to function with multiple credential types to pair with various access control environments. Supports integration with Keyscan Aurora software.

    Price includes a manufacturer surcharge due to tariffs effective May 1, 2025

    Finish

    Available on Back Order

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $156.69

    Terms and Conditions
    Call For Price
    • Heavy duty electronic exit trim with clutch mechanism and built-in contactless RFID reader
    • Integrated wireless access control
    • Integrated RFID reader only lock – no push buttons
    • Streamlined design
    • More secure with door monitoring and sensing capabilities

    Standard Model

    • MiFare Reader
    • Long Lever
    • KIL Cylinder
    • Satin Chrome
    • Compatible with Von Duprin rim exit panic bars

    Key Override Options

    • Ilco KIL cylinder
    • Keyed-alike or keyed different (includes adapter for various KIL cylinders)
    • Best small format IC prep 6-7 pin (core not included)

    Ability to work wirelessly with Aurora Software or offline with FREE Luna Software

    Keyscan Aurora Software Functionality

    • Up to 100 gateways per network
    • 100 devices (locks/routers) per gateway
    • Up to 8 routers per gateway
    • Locks/routers can be up to 2-hops from gateway
    • Locks will ping and look for closest gateway/router

    The E-Plex 7900 Cylindrical RFID Electronic Lock provides versatile keyless access for your small or large scale lodging or multi-family applications. Its sleek, tried and true design and heavy-duty construction makes for a lock that is built for performance. You won’t have to remember codes or fumble around with keys with the integrated RFID reader, simply tap your card to the lock for access. Designed to function with multiple credential types such as MiFare Classic, and iCLASS Legacy, allowing the lock to adapt to many access control environments. This lock makes your doors more secure with door monitoring and sensing capabilities. Since property owners can manage the lock through the Keyscan Aurora software (see tab), it is very cost-effective as you won’t need to have someone running around programming and checking doors throughout the whole building by hand.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating Grade 1 (Best)
    Battery Type 4 AA
    BHMA Rating Grade 1 (Best)
    Lock Features Activity Monitoring, Audit Trail, Auto Relocking, Bluetooth
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Smart Card/Fob
    Locking Device Exit - Rim
    Panic/Exit
    Brand dormakaba E-Plex

    Door requirements

    Door Handing Reversible
    Battery Life 18 mo.

    Security

    Credential Format 13.56 MHz Smart Technology, MIFARE Classic
    Credential Type Card
    Users 10,000
    Wireless Protocol Bluetooth BLE
    Wireless Range 40 ft. (increase range with repeaters / mesh network)

    Dimensions

    Exterior Dimensions 9.375 (H) x 3.3125 (W) x 2.875 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/2 in.
    Certifications ADA, CE, FCC Part 15, UL 10C
    Exterior Dimensions 9.375 (H) x 3.3125 (W) x 2.875 (D) in.
    Weight 8.5 lbs.

    Keyscan Aurora by dormakaba is a powerful, scalable access control platform designed for facilities of any size. It offers seamless integration, advanced features, and unmatched flexibility—without performance limits or expansion restrictions.

    Core Benefits
    -Unified Access Control: Manage doors, elevators, and wireless locks with one system.
    -Scalable & Flexible: Supports up to 90,000 credentials and hybrid wired/wireless setups.
    -User-Friendly: Web client access, multi-language support, and people-centric design.
    Key Integrations
    -Video Systems: Compatible with OnSSI, i3 International, Exacq, OpenEye, and Salient.
    -SMART Elevators: Integrates with KONE and Thyssenkrupp for efficient passenger grouping.
    -Wireless Locks: Supports dormakaba E-Plex and Schlage NDE series via Allegion gateway.
    -Intrusion Systems: Works with DSC MAXSYS, PowerSeries, and DMP XR550DN panels.
    -Visitor Management: Built-in features plus EasyLobby® integration.
    -Active Directory: Simplifies user login and permission management.
    Optional Add-Ons
    -Aurora Web Client for remote access
    -SQL Server upgrade for expanded database capabilities
    -SDK and API for custom integrations
    -Additional licenses for multi-site or multi-user setups
    System Requirements
    -Minimum: Intel i7, 16GB RAM, Windows 10 Pro, supports up to 8 panels and 2 remote clients.
    -Recommended: Dedicated servers for Client, Communication, and Database with Intel Xeon processors, RAID storage, and Windows Server OS.
