    Concealed In Door Closer

    SKU: ITS9613-HO-689



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $85.82

    Call For Price

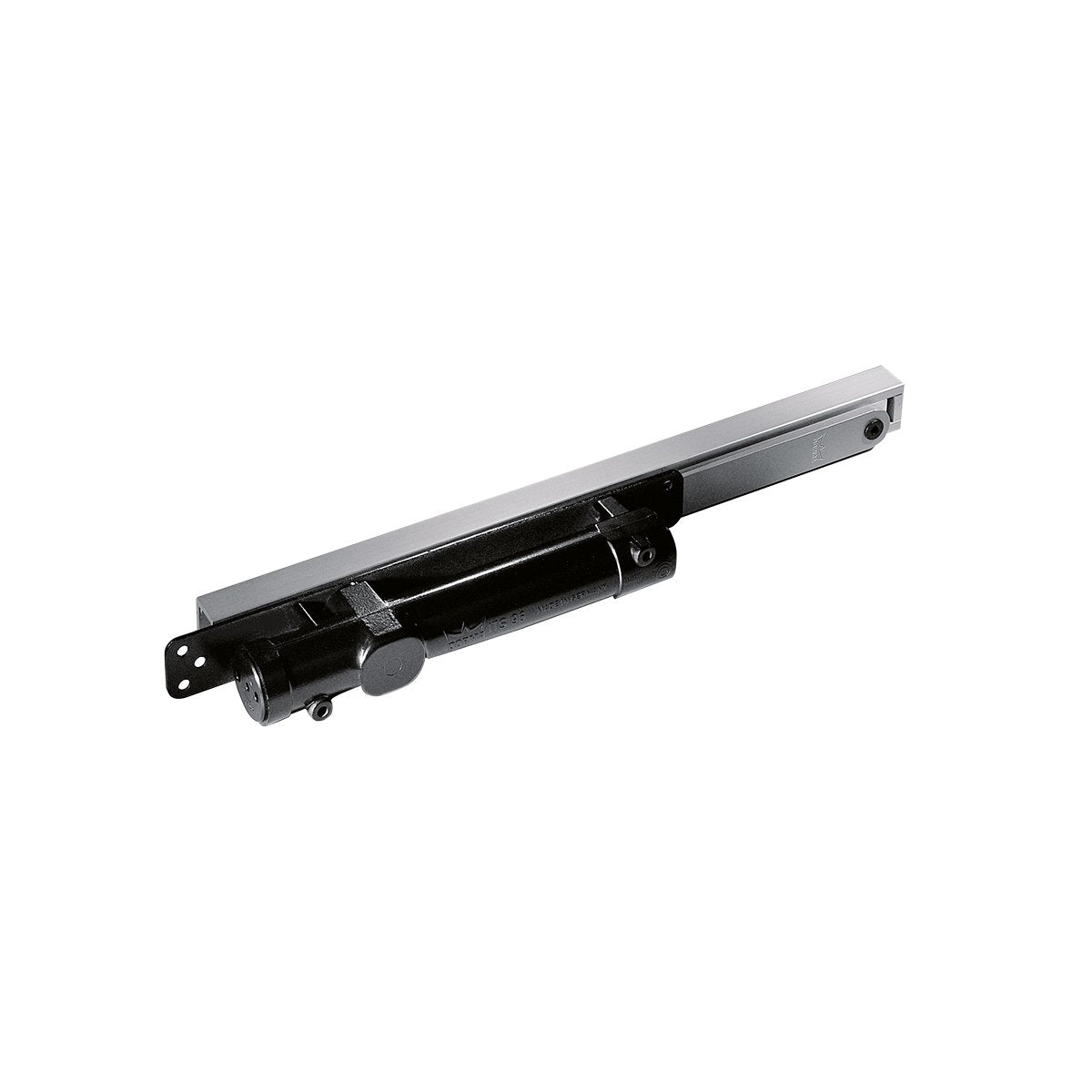

    dormakaba ITS96 Door Closer

    • Rapid decrease in opening force makes doors easy to open
    • Efficient cam and roller design
    • Non-handed
    • Adjustable spring force size



    Product Details



    Cam and roller technology

    The ITS96 door closer’s unique cam and roller technology meets the challenge of providing the operation and features necessary in a compact design.

    Door applications

    The ITS96 Series is suitable for interior wood, hollow metal, and aluminum doors and frames. All ITS96 models can be inverted to install the closer body in the frame.  Maximum door opening is approximately 130°.

    Certification

    The DORMA ITS9613 and ITS9625 are listed by UL and CUL under their continuing reinspection programs. Meets the requirements for UL 10C for positive pressure. California State Fire Marshal (CSFM) approved. Meets the requirements of ANSI/BHMA A117.1 and ADA for barrier-free accessibility.

    dormakaba ITS96 Series Door Closer

    Concealed in Door Closer

    The ITS96 series offers the optimum solution for applications requiring concealed door controls. It is suited for virtually any door and frame combination in a variety of leaf thicknesses and configurations.

    Basic

    Finish Aluminum
    Holding Weight Maximum 125 lbs
    Warranty 10 Year Limited Mechanical Manufacturer

    Door requirements

    Door Handing Non-Handed
    Mounting Overhead Concealed

    Security

    Dimensions

    Certifications UL/cUL Listed
    Dimensions x 227 (L) x 32 (W) x 42 (H) in.
    Weight 2.86 lbs
