  • DynaLock 2011

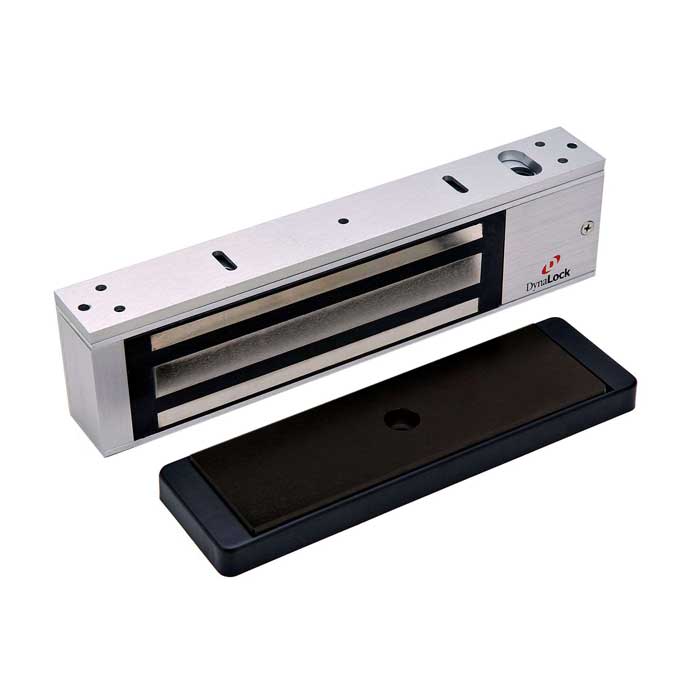

    Electromagnetic Lock

    SKU: 2011-28-DSM

    Dynalock



    Single maglock for out-swing doors with 1,200 lbs. of holding force.

    Mag Model

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $63.94

    • Economy Priced
    • Door Applications:  Outswing Hollow metal, aluminum storefront glass, solid core, reinforced door (Bracket for inswing sold separate)
    • Internal Wiring Compartment:  Includes built-in circuit board attached to access cover to provide a convenient, plug in, concealed area for wiring connections.
    • Low Power Consumption — Conserves energy, reduces operation cost, and extends battery backup time.
    • Totally Plated Coil and Armature:  Provides protection against corrosion.
    • Narrow Backset of 1-1/2”— May mean the elimination of other mounting brackets or filler plates.
    • No Residual Magnetism:  The door releases without delay when lock is de-energized.
    • Multiple Sensor and Monitor Options — Increases flexibility, security and compatibility with system equipment.
    • Built-in Spike Suppression — Protects other solid state components within the system from damage when the lock is de-energized.
    • Full Size Locks
    • Medium to High Security
    • Adjustable Mounting Base
    • 12/24 VDC/VAC
    • Made in the USA

    Specs

    • Current draw:  0.42 Amps @ 12V  / 0.21 Amps @ 24V

    Warranty

    • Lifetime Warranty — American Made in the USA by DynaLock, with over 20 years experience in the manufacturer of electromagnetic locks.

    MAG MODEL OPTIONS

    DSM  Door Status Switch:  Signals door closed or ajar
    HSM  High Security Monitor:  Includes the following:  Door Status Switch – Signals door closed or ajar.  Dynastat Force Sensor – Indicates efficient magnetic bond.
    VOP Value Option Package:  DSM, HSM, plus Anti-Tamper Switch – Signals removal of wiring access cover, and Relock Time Delay – Adjustable 1-80 Seconds.

    Note:  Check with your Local Authority Having Jurisdiction (LAHJ) before installation to review their policy on installing maglocks on your door.

    DynaLock

    The 2011 maglock is a full size 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or non-rated doors and frames. When your commercial, industrial, or institutional project openings require low cost and high security, look no further than the 2011 mag. All 2000 Series magnetic door locks are designed for ease of installation with adjustable mounting, field selectable voltage, and convenient wiring compartments. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate "door contacts". The 2000 Series is offered in single, double, and split armature models for both out-swinging and in-swinging doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.

    Basic

    Manufacturer DynaLock
    Finish Satin Aluminum
    Brand Dynalock

    Door requirements

    Security

    Dimensions

    Dimensions Armature Size: 1/2 (D) x 2 3/8 (H) x 7 3/8 (L) in., Lock Size: 1 1/2 (D) x 2 3/4 (H) x 11 (L)
    Mag Model DSM - Door Status Switch, HSM - High Security Monitor, No Options, VOP - Value Option Package
