    SlimLine Maglock

    SKU: 2280-28-DSM

    Dynalock



    Single electromagnetic lock for out-swing doors with 1,200 lbs. of holding force.

    Mag Model

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $92.22

    Call For Price
    • An “Upscale” Low Profile Lock
    • One-Piece Housing
    • Quiet, Carefree Operation
    • Outswing doors (Bracket sold separately for inswing)
    • Enhanced Time Saving Installation
    • Multi-voltage field selectable 12/24 VDC/VAC

    Specs

    • Current draw, 0.68 Amps @ 12VDC / 0.35 Amps @ 24VDC
    • Lock Size:  1-1/2”D x 2-1/16”H x 12-3/4”L
    • Armature Size:  5/8”D x 1-3/4”H x 8-5/8”L

    Warranty

    • Lifetime Warranty — American Made in the USA by DynaLock, with over 20 years experience in the manufacturer of electromagnetic locks.

    MAG MODEL OPTIONS

    DSM  Door Status Switch:  Signals door closed or ajar
    DYN: Dynastat Force Sensor:  Indicates efficient magnetic bond.

    Note:  Check with your Local Authority Having Jurisdiction (LAHJ) before installation to review their policy on installing maglocks on your door.

    DynaLock

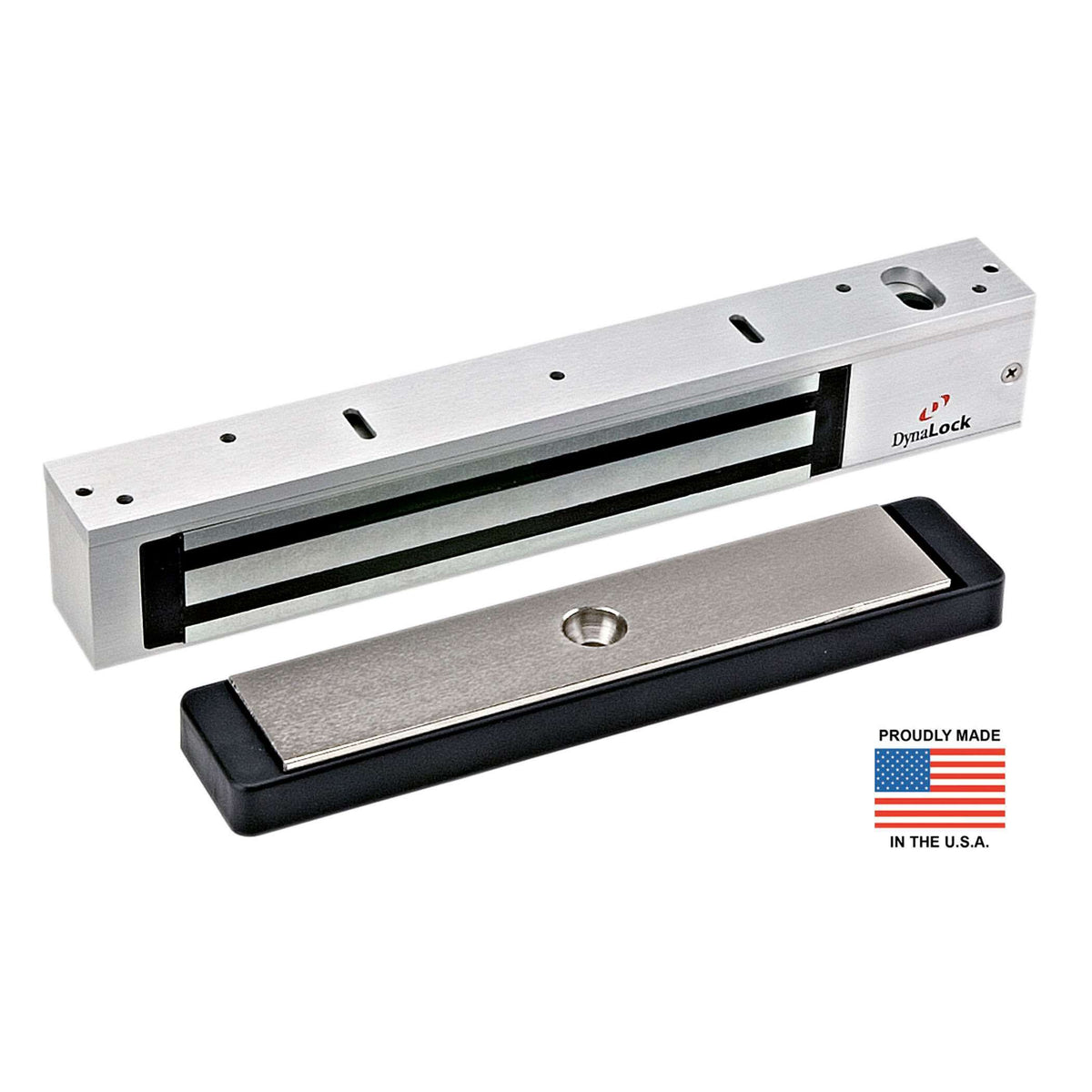

    The new DynaLock 2280 is an upscale, low profile 1,200 lb. holding force maglock. The 2280 features a reduced length, low profile seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board. Incorporated in the overall design is a new high impact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered. This eliminates mis-orientation of the housing, when mounted. The housing fully captures the armature, eliminating the need for anti-spin pins. In addition, the housings incorporate foam pads to help dampen the sound of the armature engaging the magnetic door lock face. Typical applications for the 2280 include commercial, industrial and institutional openings where maximum security and durability is required. With a low 2-1/16” profile, the 2280 is ideal for opening heights of 7’-0” or less, to facilitate code compliance on designated egress doors.

    Basic

    Manufacturer DynaLock
    Finish Satin Aluminum
    Brand Dynalock

    Door requirements

    Security

    Dimensions

    Mag Model DSM - Door Status Switch, HSM - High Security Monitor, No Options
