  • DynaLock 2585-TJ85

    Bantam Mag for Inswing Doors

    SKU: 2585-TJ85-28-DSM

    Dynalock



    Electromagnetic lock with 650 lbs. of holding force.

    Mag Model

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $65.59

    Lifetime Warranty — American Made in the USA by DynaLock, with over 20 years experience in the manufacturer of electromagnetic locks.

    • Compact “Mini Mag” Lock Design
    • Holding Force — 650 lbs. holding force provides for effective traffic control. Examples include interior office doors, clean room interlocks, tool cribs, and x-ray areas.
    • Ideal for Low Security Applications
    • Door Applications:  Inswing Hollow metal, aluminum storefront glass, solid core, reinforced door
    • Low Power Consumption:  Conserves energy, reduces operating cost, and extends battery backup time.
    • A Totally Plated Coil and Armature:  Provides protection against corrosion.
    • No Residual Magnetism — The lock releases without delay when de-energized.
    • Narrow Backset; thin lock section (1-1/4″) may mean the elimination of additional mounting brackets.
    • Built-In Spike Suppression — Protects other solid state components within the system from damage when the lock is de-energized.
    • Multi-voltage field selectable 12/24 VDC/VAC

    Specs

    • Current draw:  0.5 Amps @ 12VDC / 0.25 Amps @ 24VDC

    MAG MODEL OPTIONS

    DSM  Door Status Switch:  Signals door closed or ajar

    Note:  Check with your Local Authority Having Jurisdiction (LAHJ) before installation to review their policy on installing maglocks on your door.

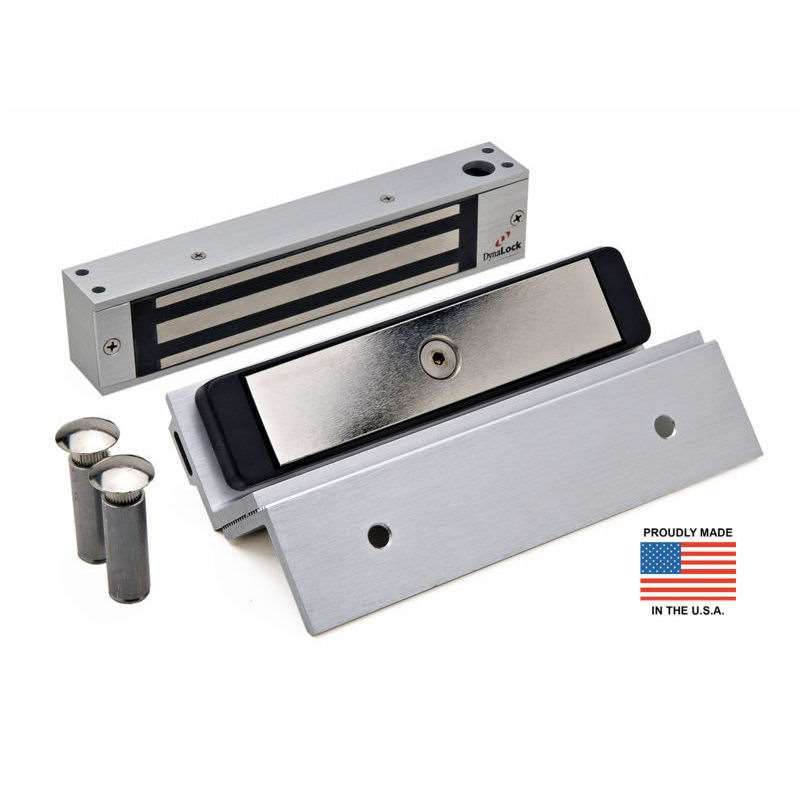

    Each 2585-TJ85 Series Electromagnetic Lock is comprised of 3 basic components: a lock housing, an electromagnetic coil, and an armature. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts. The 2585-TJ85 magnetic door lock has a shorter housing. At only 8 1/2" long, the 2585 "Bantam" lock is perfect for installations where space is limited. All locks are designed for ease of use, and built in the USA to last a lifetime.

    Basic

    Manufacturer DynaLock
    Finish Satin Aluminum
    Warranty Lifetime Manufacturer
    Brand Dynalock

    Door requirements

    Security

    Dimensions

    Dimensions Armature Size: 3/8 (D) x 1 1/2 (H) x 6 1/2 (L) in., Lock Size: 1 1/4 (D) x 1 3/4 (H) x 8 1/2 (L) in.
    Mag Model DSM - Door Status Switch, No Options
