  • DynaLock 7050

    Keyswitch with Sounder

    SKU: 7050-DBL-AUD

    Dynalock



    3101B type keyswitch, momentary/maintained, includes 2-gang plate.

    Quantity left : 0

    • Switch assembly requires 1-1/2” depth clearance and is shipped on single
    • Switch contacts rated 6 Amps @ 125VAC

    DYNALOCK 7050 KEYSWITCH OPTIONS INCLUDED

    AUD Audible Sounder:  1-28VDC (Requires DBL option)
    DBL Two Gang Plate:  4-9/16” wide

    DynaLock

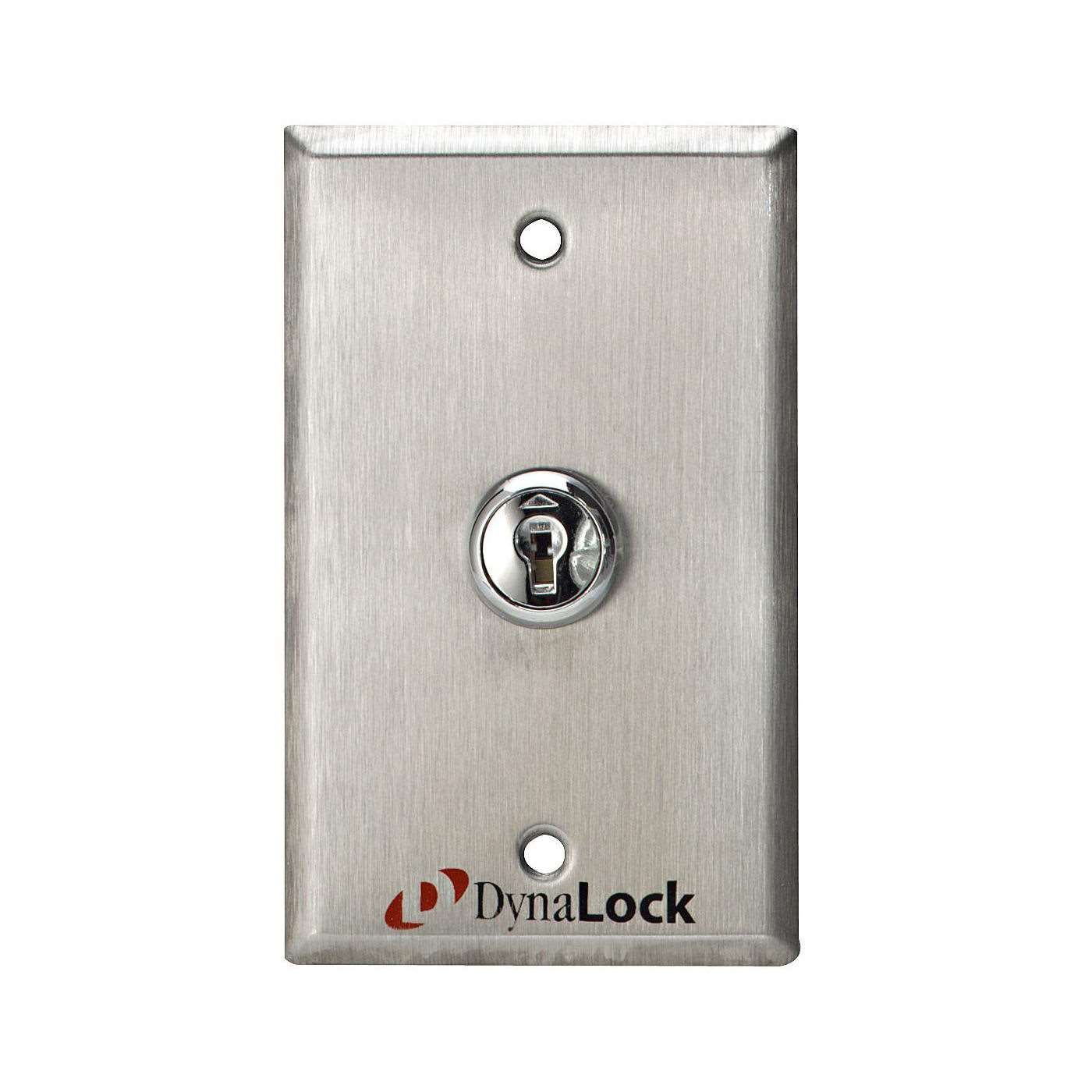

    The DynaLock 7050 keyswitch with audible sounder mounts on the wall next to your door and is used for resetting and/or bypassing the DynaLock 3101B delay egress lock.  Turning the key to the left momentarily bypasses the 3101B.  As soon as the key is removed, or your hand is taken off the key, the keyswitch resets to center.  Turning the key to the right activates the maintained contact.  The keyswitch will not reset to center until the key cylinder is turned back to center.  The assembly is supplied with face plate, bracketry, and a locknut. Keyswitches may be used to control electric locks, shunt or activate security panels / consoles or any similar requirements.

    Basic

    Manufacturer Dynalock
    Finish Satin Aluminum
    Product Headline Keyswitch with Sounder
    Brand Dynalock

    Door requirements

    Security

    Dimensions
