  • HES KP20

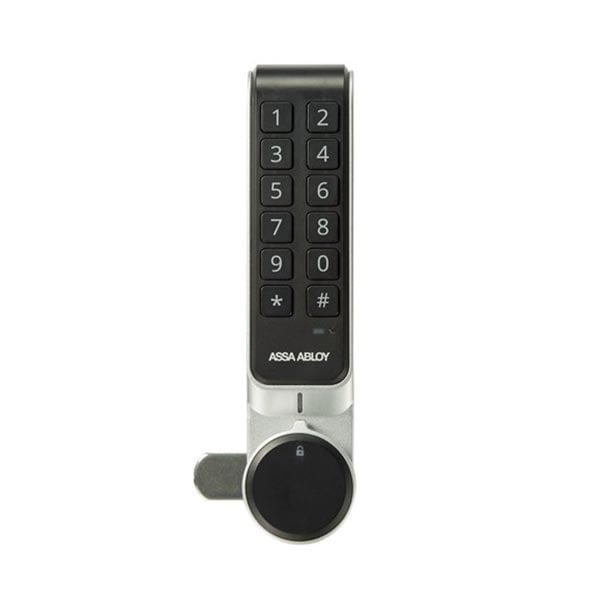

    Stand-Alone Keypad Cabinet Lock

    SKU: KP20 HES


    Reach for the code, not the keys. The battery-powered HES KP20 keypad cabinet lock provides simple and secure keyless access for your lockers, drawers and doors. Can be programmed for one-time or on-going use operation to suit nearly any application.

    Quantity left : -9



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Call For Price
    • Stand-alone access control
    • 12-button keypad (RFID model also available)
    • Supports one master code and one user code
    • 4 to 12 digit code length
    • LEDs indicate valid/invalid access
    • Public (one-time use) and Private (on-going) programming modes
    • Aluminum die-cast construction
    • 75 lbs. holding force
    • 30,000 cycle battery life
    • External emergency power through micro USB
    • Non-handed
    • Installs on wood or metal cabinet drawers or doors 1/16 to 7/8 in. thick
    • Indoor use
    • Supports 3rd party locking cams (i.e. hooks)
    • Ideal for residential, commercial and institutional applications

    The HES KP20 is a stand-alone keypad cabinet lock designed for low to medium security applications. This flexible lock can be programmed for public or private use modes to fit your specific needs. Public mode allows for a one-time use code for temporary access, such as in a gym or spa locker room. Private mode lets the admin set a reusable permanent code for long term lock access, such as for a supply cabinet or school locker. LED and audio feedback will confirm valid and invalid lock access as well as provide indicators during lock programming. Should the lock lose power, emergency power can be provided via micro USB located on the side of the lock.


    Manufacturer HES
    Battery Type 3 AAA
    Holding Force 75 lbs.
    Warranty 3 Year Manufacturer
    Brand HES

    Door requirements

    Door Handing Non-Handed
    Battery Life 30,000 cycles


    Code Length 4 to 12 Digits
    Code Capacity 2


    Door Thickness Minimum 1/16 in.
    Door Thickness Maximum 7/8 in.
    Dimensions 6.02 (H) x 1.38 (W) x 1.10 (D) in.
