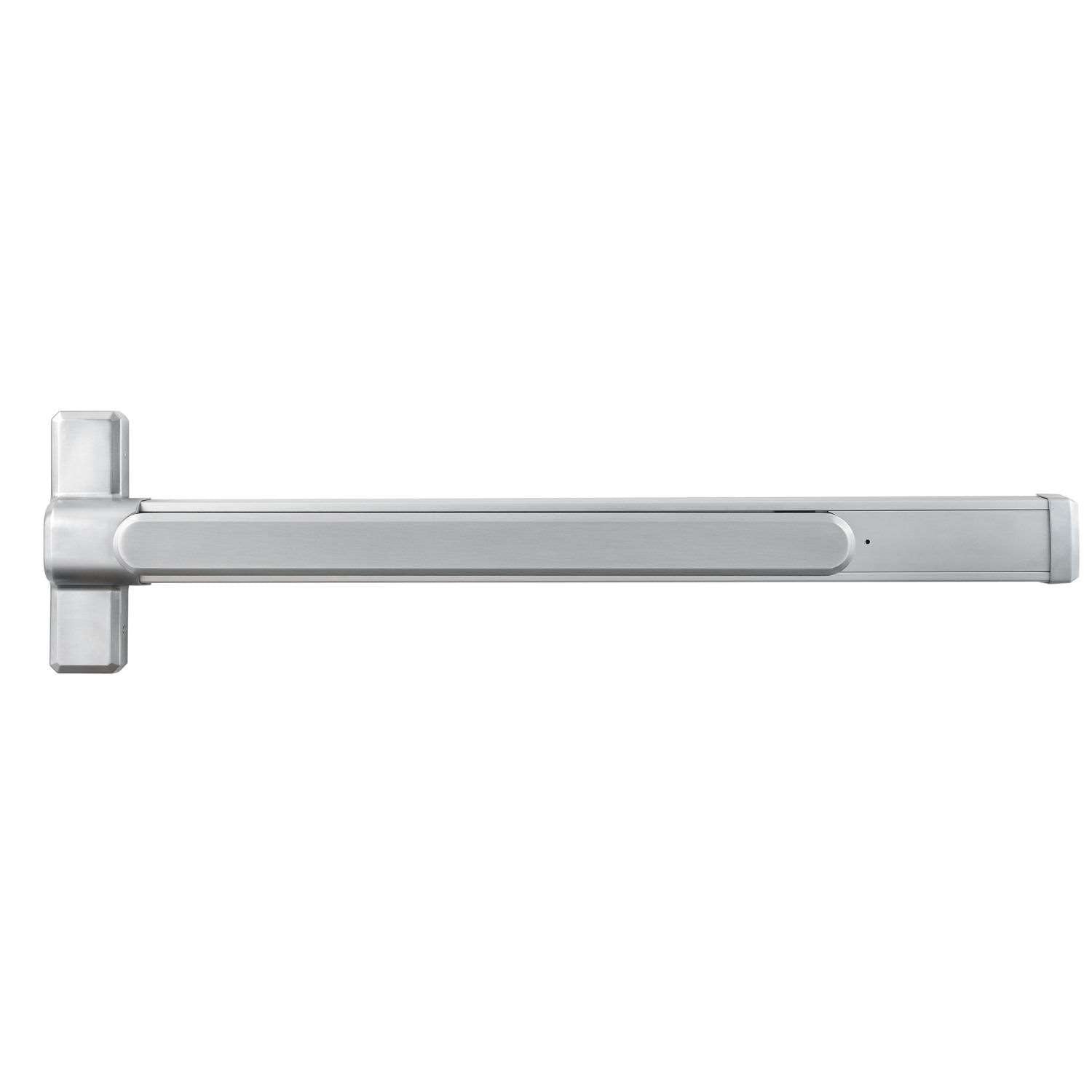

    Heavy-Duty Commercial Rim Exit Device

    SKU: QED11162636KD


    Door Opening Size

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Performance Features

    • Tested and certified to significantly exceed 1,000,000 cycles – well above the requirements for Grade 1 certification
    • Dampening device insures smooth, quiet operation
    • Field sizeable. 36” device adjustable to 32″
    • Thru-bolted trim design for increased security and durability
    • Wide variety of trim options to fit any job
    • Consistent styling allows for suiting with other STANLEY Commercial Hardware products


    • ANSI/BHMA A156.3 Series Grade 1
    • UL/cUL listed (3-hours) for “A” label single door applications (4′ x 8′)
    • UL10C/UBC 7-2 (1997) Positive Pressure Rated
    • UL10B Pressure Rated
    • UL305 for panic hardware

    Technical Information

    • Handing – All QED100 series exit devices are non-handed
    • Door Thickness – 1 3/4″ standard (44.5mm)
    • Latchbolt – Stainless Steel 3/4″ throw (19mm)
    • Fasteners – Wood Screws, Machine Screws & Sex Bolts Standard
    • Head Cap & End Cap – Zinc die-cast
    • Trims – Sierra and Summit Styles available
    • Escutcheon Offering – Dummy, Passage, Keyed, Night Latch
    • Pull Plate Offering – Dummy, Thumbpiece, Night Latch, Flat Plate
    • Stile Width – 41/4″ Minimum (108mm)
    • Dogging – Hex key dogging. Cylinder dogging may be custom ordered
    • 36″ Field Sizeable to 32″ Door
    • 48″ Field Sizeable to 36″ Door
    • Standard Backset: 2 7/16″ (62mm) to face of door stop


    • May be custom ordered with these cylinder dogging keyway options: KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, BF-Best”F” (SCIF) & LC-Less Cylinder. (SFIC) offered keyed different only. Consult factory for details on Mortise and Rim Cylinder requirements


    • Lifetime mechanical, 3 year finish* & 1 year electronics *613 finish excluded
    GoKeyless™ is a factory trained and authorized STANLEY® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The heavy duty QED100 series rim exit devices are designed for institutional, commercial uses such as educational, health care and industrial facilities where a long-lasting, highly durable product is required. These exit devices will deliver the operational requirements set forth while withstanding the physical abuse associated with the applied environment. All STANLEY exit devices are manufactured to heavy duty, architectural grade expectations and meet or exceed ANSI Grade 1 specifications. In addition, all exit devices may be custom ordered in a rim fire, surface vertical rod, surface vertical rod fire and surface vertical-less bottom rod configurations. A variety of optional trims and accessories are also available to meet your needs, and STANLEY exit devices are designed to coordinate with STANLEY commercial locksets and closers for a professional look.


    Manufacturer dormakaba USA Inc.
    ANSI Rating A156.3, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Warranty 3 Year Manufacturer, Lifetime Mechanical
    Brand Stanley

    Door requirements

    Door Handing Non-Handed



    Door Thickness Minimum 1 3/4 in.
    Backset 2 7/16 in.
    Door Opening Size 3 ft., 4 ft.
    Weight 8 lbs
