  • dormakaba E-Plex 5790

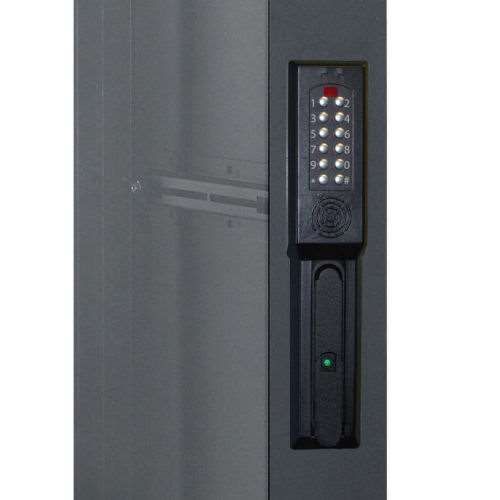

    Electronic Server Cabinet Lock

    SKU: E5790-1-EM-A-0-401-0-41



    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    Factory Ordered — 16 Week Lead Time

    • Access Control:  Electronic pushbutton card-based locks with dual credential capability – PIN and/or PROX card options.  Lock is scheduled to require credentials based on security and convenience requirements; PIN only, Card only, PIN + Card
    • Programming:  Via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage large number of doors and users.  Software programming via laptop/netbook with IRDA communications
    • Number of Users:  3,000 (per door) with software; (300 in LearnLok mode)
    • Audit Events:  30,000 most recent events
    • Authority Levels (6) — Control who has access to specific lock operations:  Master, Guest/Visitor User, Manager, Service User, Access User Maintenance Unit User
    • Program Up to 16 different access schedules per lock
    • Scheduling:  Up to 32 different holiday/vacation blocks per lock
    • Passage Mode Options (3) — First manager or privileged-user in, automatic according to access schedules, manually toggled on/off at the lock keypad
    • System Software:  Host application PC server with multiple workstations support using Thin Client interface over network (or same machine).  SQL database with critical data components encrypted for highest security
    • Alarm Interface:  Includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems
    • Locking Device:  Utilizes the existing door locking hardware (cam and/or locking bar)
    • Construction:  Heavy-duty resin polymer housing, stainless backing plate, metal pushbuttons
    • Reversible Handing; pre-assembled for left-hand door installation—easily changed in field
    • Numeric Keypad:  Vandal resistant, solid metal pushbuttons
    • Indicators:  Audible and visual indicators
    • Product also includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems
    • Key Override:  Key-in-lever style cylinder can be ordered keyed alike or keyed different (std.) Not field changeable Standard Finishes: Black 401 housing and lever with Satin Chrome 626 Buttons


    • Ease of Installation — Simple, easy-to-install reader unit installs into standard 50/50/50 IT server cabinet prep. Wiring harness with cabinet-to-door quick disconnect and mounting brackets are also included
    • Power Supply:  Requires 12 or 24Vdc power input (specified when ordering) from standard, off-the-shelf power supply units. If power is lost, user data and lock parameters are retained in on-board memory. Power interface unit enclosure is factory prepped for simple wiring with low voltage connections directly into off-the shelf power supply units.
    • Items Supplied Include:  Installation manual, quick reference guide, operations manual, and required installation hardware
    • Accessibility Standard: Americans with Disabilities Act (ADA)


    • 1-year warranty from date of installation; built-in warranty counter in memory

    Factory Ordered — 16 Week Lead Time

    Cabinet-based data centers, small offices, and any organization with equipment cabinets for managing and protecting personal or private data are turning to the Kaba E-Plex 5790 electronic server cabinet lock in huge numbers.  It's not difficult to see why.  Turn on the news, or pick up a paper any day of the week, and you are bound to hear of another data breach, putting both consumers, and the targeted organization at risk.  By deploying E-Plex E5790 server cabinet locks, companies add another layer of physical security to these cabinets for safeguarding each cabinet door against unauthorized access, while monitoring for legal equipment access.  The E-Plex 5790 gives IT managers, security directors, and company executives greater assurance confidential information is secured, and provides the critical means for knowing when access has been granted or attempted.  So what can happen when your data is breached?  For starters, your company's reputation can be damaged, you can be subject to government fines, and you can lose one of your most important assets for operating and growing your business.  That is why ramping up efforts for guarding against privacy loss with the E-Plex 5790 is such a smart data-security strategy.  Making your on-site and co-located servers as secure as possible can defend you against even the most resolute attacker.

    GoKeyless™ is a factory trained and authorized Dormakaba dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.


    Manufacturer dormakaba USA Inc.
    Lock Features Old Audit Trail, Scheduling
    Solution Electronic
    Warranty 1 Year Manufacturer
    Access Type Keypad - Digits
    Proximity Card/Fob
    Locking Device Cam
    Brand E-Plex

    Door requirements

    Door Handing Non-Handed


    Code Length 4 to 8 Digits
    Users 3,000


    Dimensions 12 9/16 (H) x 2 3/8 (W) x 1 1/16 (D) in.
